- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber

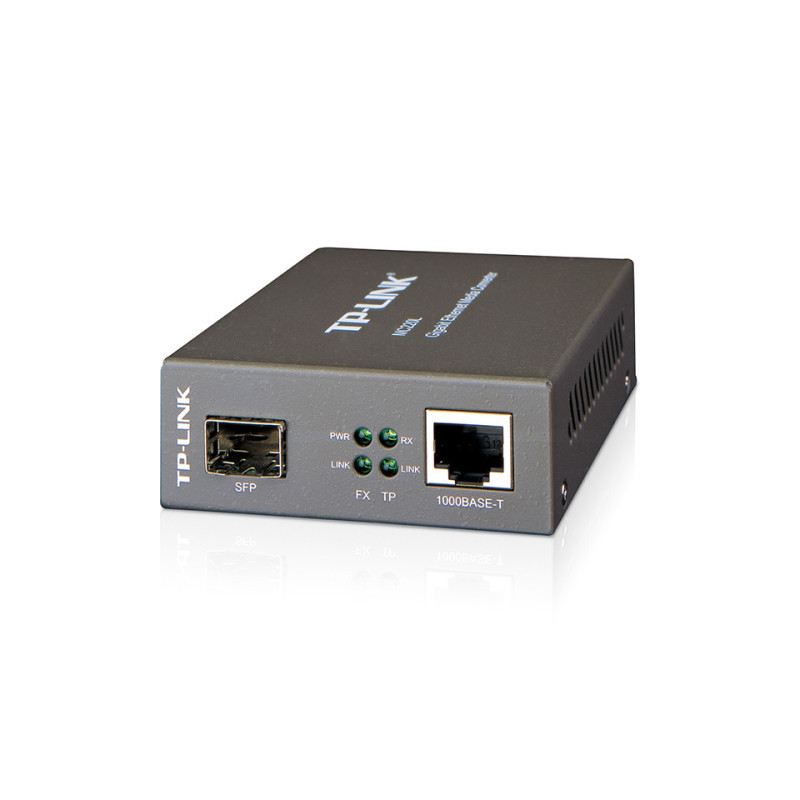

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC-Type connector. The MC220L supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

TP-Link MC220L. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 393700.8" (10000 m), Fiber mode structure: Multi-mode, Single-mode. LED indicators: Link, Product color: Black, Compliance industry standards: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x. Fiber optic connector: SFP, Connectivity technology: Wired. Power consumption (max): 1.7 W

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
Auto MDI/MDI-X	Yes
Cabling technology	UTP 5e, 5
Maximum transfer distance	393700.8" (10000 m)
Fiber mode structure	Multi-mode, Single-mode
Internal	No
LED indicators	Link
Product color	Black
Compliance industry standards	IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Fiber optic connector	SFP
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Power consumption (max)	1.7 W
External power adapter	Yes
Width	3.72" (94.5 mm)
Depth	2.87" (73 mm)
Height	1.06" (27 mm)
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Package width	8.03" (204 mm)
Package depth	6.5" (165 mm)
Package height	2.56" (65 mm)
Package weight	14.8 oz (420 g)
Certification	FCC, CE
Harmonized System (HS) code	85176990
Dimensions (WxDxH)	3.72 x 2.87 x 1.06" (94.5 x 73 x 27 mm)
Full duplex	Yes
I/O ports	1x 1000M SC 1x 1000M RJ45
