PoE Switches for Your Ultra Convenience

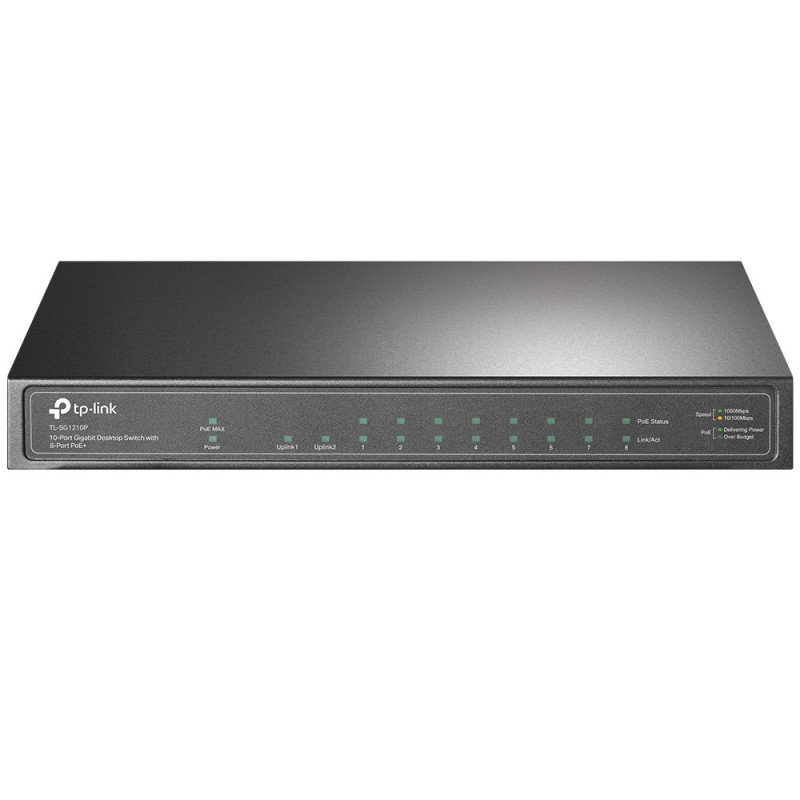

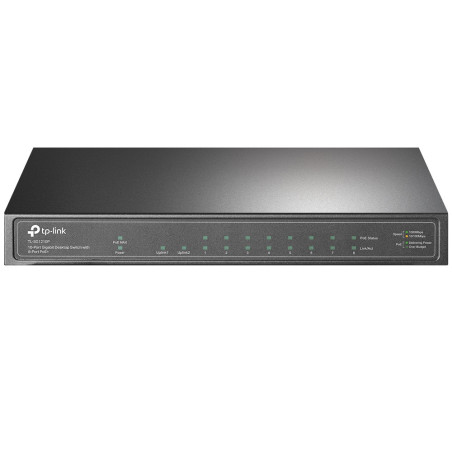

10-Port Gigabit Desktop Switch with 8-Port PoE+
TL-SG1210P

Surveillance
Work with IP Cameras

Conference Call
Work with IP Phones

Wi-Fi Coverage
Work with Omada EAPs

Easy to Use

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Advanced Functions for Higher Performance

Qos
For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

IGMP
Snooping
Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

TP-Link TL-SG1210P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	9
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	9
SFP module slots quantity	1
Networking standards	IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Fiber ethernet cabling technology	1000BASE-X
Fiber type	Single-mode
MAC address table	4000 entries
Switching capacity	20 Gbit/s
Store-and-forward	Yes
IGMP snooping	Yes
Product color	Gray
Housing material	Metal
LED indicators	Yes
Wall mountable	Yes
Fanless	Yes
Power supply included	No
DC input voltage	53.5 V
Input current	1.31 A
Power consumption (typical)	7.11 W
Power consumption (max)	78.13 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	63 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	266.42 BTU/h
Width	8.23" (209 mm)
Depth	4.96" (126 mm)
Height	1.02" (26 mm)
Cables included	AC
Quick start guide	Yes
User guide	Yes
Manual	Yes
Certification	CE, FCC, RoHS
Harmonized System (HS) code	85176990
