What This Product Does

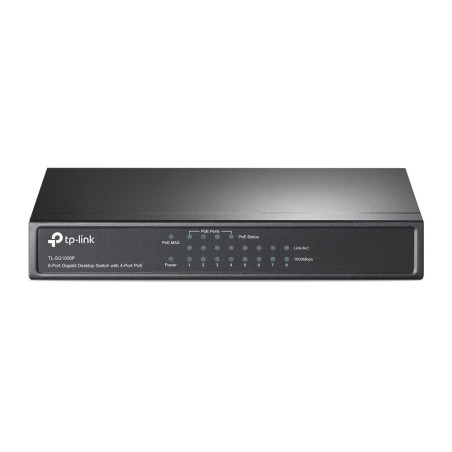

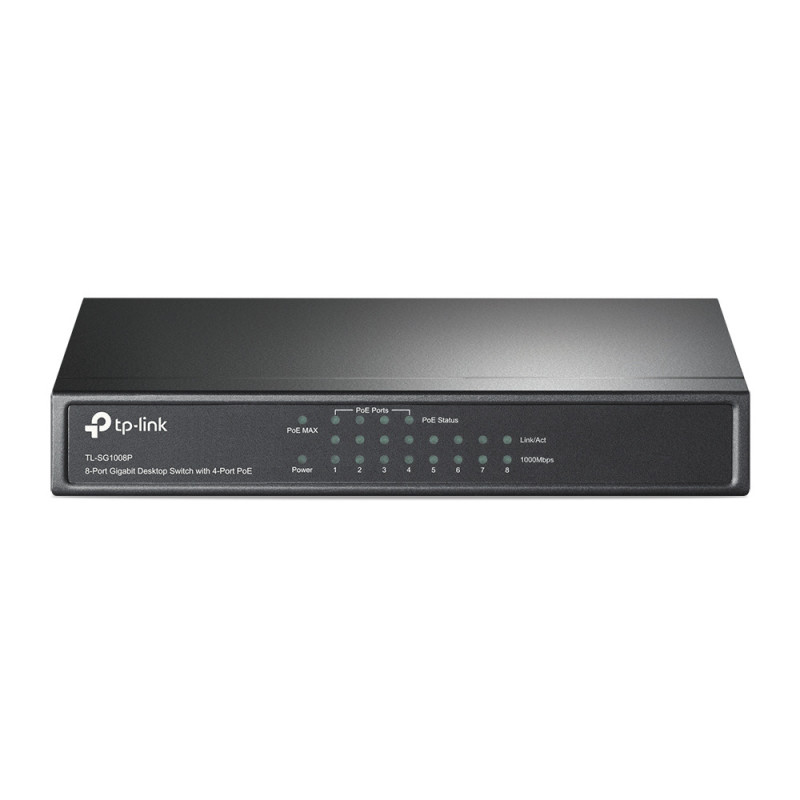

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.

How This Product Works
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Overload Arrangement
TL-SG1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Port Priority Function
Priority (port-1>port-2>port-3>port-4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4w (maximum power per port is 15.4W), the system power is 46.2w in total (PoE max LED is red ). If there is an additional PD inserted to Port 3 with 10w then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4w, and Port3 will use 10w, and no power will be supplied to Port 4.

Easy To Use
TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.

TP-Link TL-SG1008P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4800 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.11j. DC input voltage: 48 V. Power connector: DC-in jack. Power over Ethernet (PoE)

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	8
Fiber optic connector	LuxCis
Compatible memory cards	MMC Mobile
Power connector	DC-in jack
Networking standards	IEEE 802.11j
10G support	No
Copper ethernet cabling technology	100BASE-T
Cable types supported	Cat6a
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	1000 Mbit/s
Virtual LAN features	IP subnet–based VLAN
VLAN mapping type	2:2 VLAN Mapping
Fiber ethernet cabling technology	40GBASE-LR4
MAC address table	4800 entries
Switching capacity	16 Gbit/s
Store-and-forward	Yes
DHCP features	DHCPv6 client
Security algorithms	HTTPS
Authentication	Auto VLAN
Authentication type	HWTACACS
Queue scheduling algorithms	SP
MAC address entries	Blackhole MAC address entries
Routing protocols	IP
IPv4 & IPv6 features	IPv6 Telnet
Rack mounting	No
Product color	Hazelnut
Housing material	Polymer
LED indicators	Error
Airflow direction	Back-to-front airflow
Power supply included	Yes
Number of power supply units	1
DC input voltage	48 V
Input current	1.25 A
Power consumption (typical)	53 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Active PoE
Power over Ethernet (PoE) ports quantity	4
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	6.73" (171 mm)
Depth	3.86" (98 mm)
Height	1.06" (27 mm)
Cables included	AC
User guide	Yes
Package type	Box
Sustainability certificates	ENERGY STAR
Certification	CE, FCC, RoHS
Harmonized System (HS) code	85176990
