Gigabit Connection for Small Business

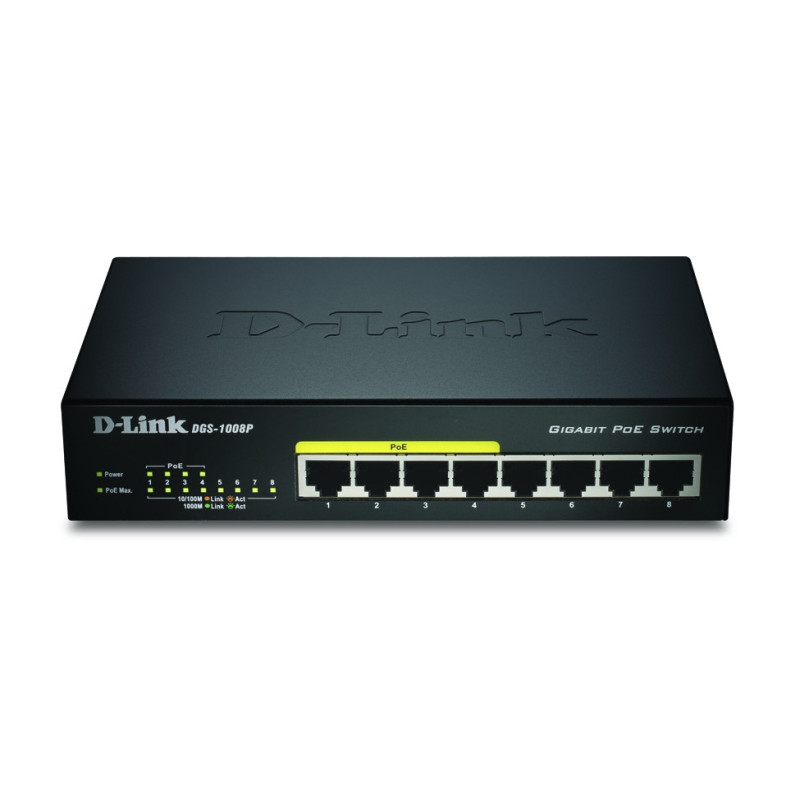

The D-Link® 8-Port Gigabit Ethernet PoE Switch (DGS-1008P) enables office users the ability to easily connect and supply power to Power over Ethernet (PoE) devices such as IP cameras, IP phones, and wireless access points (APs) to a network. The 8 Gigabit ports provide connectivity for devices and applications that require high speed network access and reduce bottlenecks that can interrupt communication. The DGS-1008P also provides the opportunity to add additional Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.

Power Over Ethernet (PoE)
The first four ports of the DGS-1008P supports the IEEE 802.3af PoE protocol. Each of these four ports can supply up to 15.4 watts for a total PoE budget of 52 watts, allowing users to attach an IEEE 802.3af compliant device to the DGS-1008P that requires no additional power. Use PoE for applications that are far from power outlets or when you want to minimize the clutter of extra cables.

Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Easy Installation, no Additional Setup
The DGS-1008P 8-Port Gigabit Ethernet Switch is plug-and-play and requires no additional configuration. Its compact size and fan-less design allow for installation anywhere data or power is required. In addition, the switch supports IEEE 802.1p QoS, which automatically classifies and prioritizes compliant device traffic to ensure time sensitive data such as VoIP is forwarded without delay.

Conserves Energy
The DGS-1008P 8-Port Gigabit Switch makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the product’s life and also reduces noise.

D-Link DGS-1008P/E. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Power over Ethernet (PoE)

Switch type	Unmanaged
Switch layer	L2
Basic switching RJ-45 Ethernet ports quantity	8
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Auto MDI/MDI-X	Yes
MAC address table	4000 entries
Switching capacity	16 Gbit/s
Supported data transfer rates	200, 100, 20, 10 Mbit/s
Maximum data transfer rate	2 Gbit/s
Rack mounting	No
Product color	Black
LED indicators	Yes
Power consumption (typical)	63.2 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Dimensions (WxDxH)	7.48 x 4.72 x 1.5" (190 x 120 x 38 mm)
Width	7.48" (190 mm)
Depth	4.72" (120 mm)
Height	1.5" (38 mm)
Weight	26.8 oz (760 g)
Package width	7.09" (180 mm)
Package depth	12.9" (328 mm)
Package height	4.25" (108 mm)
Package weight	3.75 lbs (1.7 kg)
Shipping (inner) case height	14.3" (36.3 cm)
Shipping (inner) case width	15.1" (38.4 cm)
Shipping (inner) case length	22.5" (57.2 cm)
Shipping (inner) case net weight	27.3 lbs (12.4 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	1029.6 lbs (467 kg)
Number of cartons per pallet (air)	25 pc(s)
Quantity per pallet (air)	250 pc(s)
Pallet length	47.2" (120 cm)
Pallet width	39.4" (100 cm)
Pallet height (air)	76.8" (195 cm)
Pallet gross weight (sea)	1029.6 lbs (467 kg)
Number of cartons per pallet (sea)	25 pc(s)
Quantity per pallet (sea)	250 pc(s)
Pallet height (sea)	76.8" (195 cm)
Shipping (inner) case weight	39.5 lbs (17.9 kg)
Harmonized System (HS) code	85176990
