What This Product Does

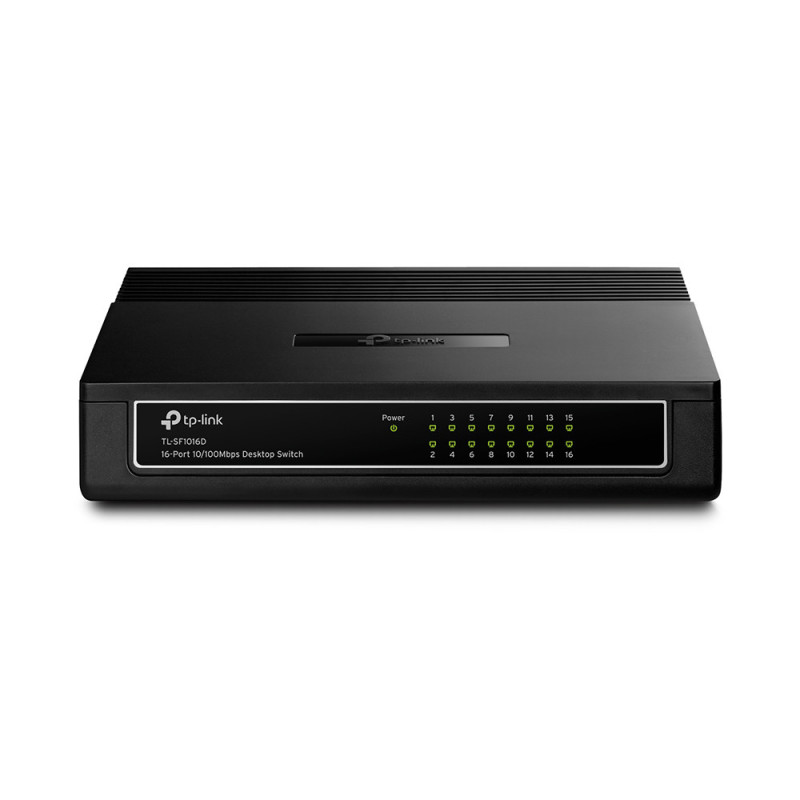

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance
TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1016D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1016D work reliably.

TP-LINK Green Technology
This new generation TL-SF1016D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

TP-Link TL-SF1016D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 2000 entries, Switching capacity: 3.2 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack. Wall mountable, Rack mounting

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fast Ethernet (copper) ports quantity	16
Power connector	DC-in jack
Networking standards	IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Ethernet LAN data rates	10,100 Mbit/s
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address table	2000 entries
Switching capacity	3.2 Gbit/s
Store-and-forward	Yes
Rack mounting	Yes
Stackable	No
Product color	Black
LED indicators	Yes
Wall mountable	Yes
Fanless	Yes
Minimum system requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7, MAC OS, NetWare, UNIX, Linux
Power source	DC
Power supply included	Yes
DC input voltage	9 V
Input current	0.6 A
Power consumption (max)	3.23 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	11.01 BTU/h
Width	7.87" (200 mm)
Depth	5.59" (142 mm)
Height	1.57" (40 mm)
User guide	Yes
AC adapter included	Yes
Package type	Box
Package width	8.78" (223 mm)
Package depth	11.2" (285 mm)
Package height	2.68" (68 mm)
Package weight	20.8 oz (590 g)
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Sustainability compliance	Yes
