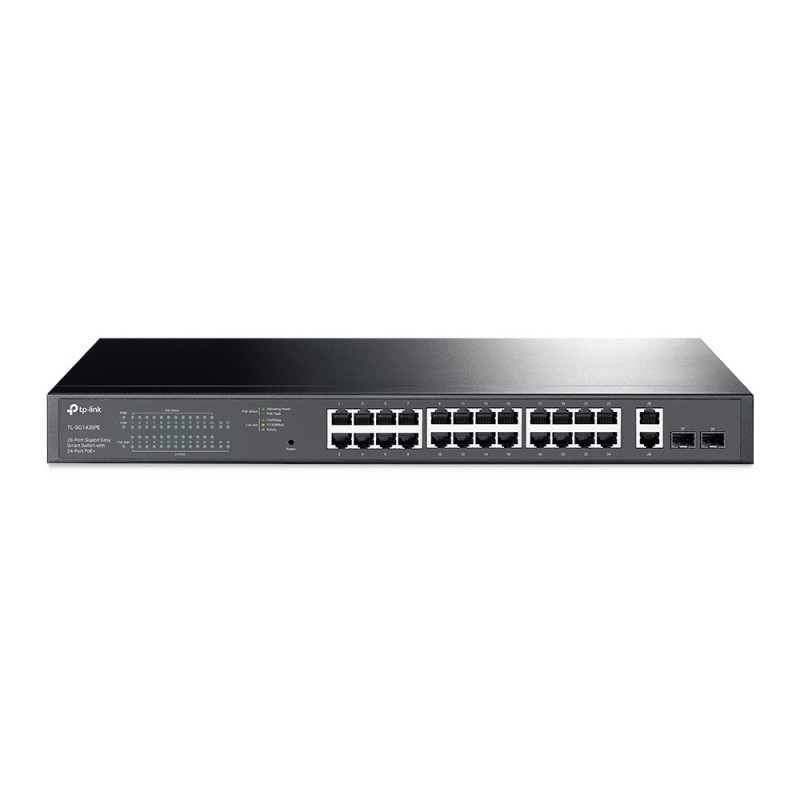

Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance

Multiple Application Scenarios
The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.

Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.

Easy to Use

Value-Added Features Bring Unexpected Experiences

QoS for a Lag-Free Experience
Ensures smooth traffic for latency-sensitive applications, such as voice and video.

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create a network with higher security and better overall performance by dividing the network into smaller groups.

Making Management Easy
TL-SG1428PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1428PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Multiple Factors Guarantee Stable Operation

System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management to Prevent Power Overload
Automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply when the total PoE power consumption exceeds 250 W. This protects the device from power overload operation.

Great Compatibility with PD Detection
Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

TP-Link TL-SG1428PE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	26
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	26
SFP module slots quantity	2
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Number of VLANs	32
Fiber ethernet cabling technology	1000BASE-X
MAC address table	8000 entries
Switching capacity	56 Gbit/s
Forwarding rate	41.7 Mpps
Store-and-forward	Yes
Number of queues	4
Jumbo frames support	Yes
Jumbo frames	10000
Packet buffer memory	4.1 MB
IGMP snooping	Yes
Security algorithms	SNMP, SNMPv2, SNMPv3
Multicast support	Yes
Rack mounting	Yes
Form factor	1U
Product color	Black
Number of fans	2 fan(s)
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1039.03 W
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	250 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	17.3" (440 mm)
Depth	8.66" (220 mm)
Height	1.73" (44 mm)
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Package width	13.2" (336 mm)
Package depth	20.8" (528 mm)
Package height	3.94" (100 mm)
Package weight	8.69 lbs (3.94 kg)
Certification	CE, FCC, RoHS
Harmonized System (HS) code	85176990
