- Plug and Play operation
- 8 Fast Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- D-Link Green™ technology, saves energy and increases the product’s lifespan

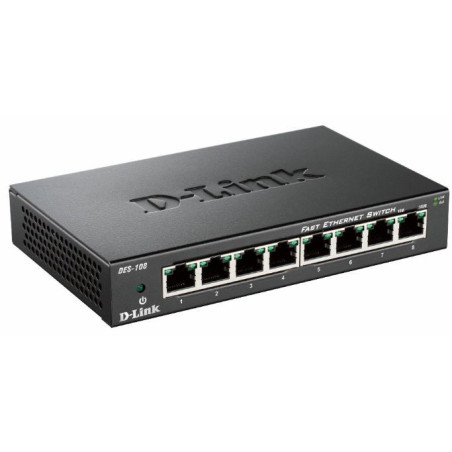

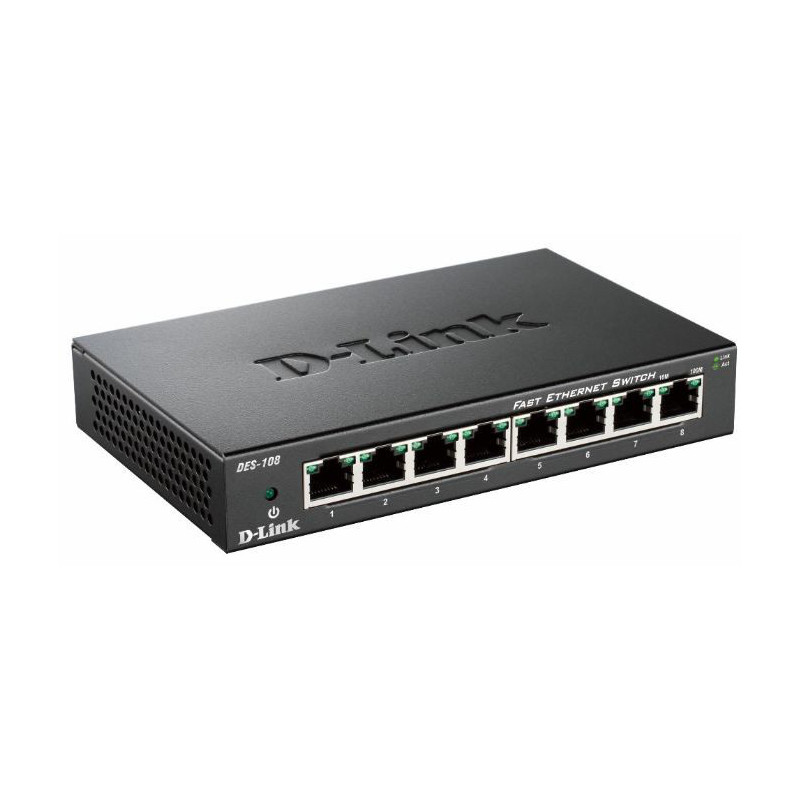

D-Link’s DES-108 Fast Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 8 Fast Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DES-108 completely silent so it is ideal for offices, libraries or meeting rooms.

Robust design

The DES-108 is designed with durability and performance in mind. The sturdy metal housing will protect it against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status, helping to troubleshoot connectivity problems. For a convenient placement, this switch comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DES-108 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Power-saving technology

The DES-108 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

D-Link DES-108. Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 1000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack

Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Power connector	DC-in jack
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
MAC address table	1000 entries
Switching capacity	1.6 Gbit/s
Supported data transfer rates	10/100 Mbps
Store-and-forward	Yes
Maximum data transfer rate	0.1 Gbit/s
Jumbo frames support	Yes
Packet buffer memory	0.768 MB
MAC address filtering	Yes
Rack mounting	No
Product color	Black
Housing material	Metal
LED indicators	Link, Power
Mean time between failures (MTBF)	511323 h
Input current	1 A
Input voltage	5 V
Power consumption (typical)	4.5 W
Data transfer rate	200 Mbit/s
Dimensions (WxDxH)	6.38 x 4.02 x 1.1" (162 x 102 x 28 mm)
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Package width	8.19" (208 mm)
Package depth	9.84" (250 mm)
Package height	2.68" (68 mm)
Package weight	21.5 oz (610 g)
Shipping (inner) case height	17.4" (44.3 cm)
Shipping (inner) case width	10.2" (26 cm)
Shipping (inner) case length	14.6" (37 cm)
Shipping (inner) case net weight	13.4 lbs (6.1 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	788.2 lbs (357.5 kg)
Number of cartons per pallet (air)	48 pc(s)
Quantity per pallet (air)	480 pc(s)
Pallet length	40.2" (102 cm)
Pallet width	48" (122 cm)
Pallet height (air)	81.5" (2.07 m)
Pallet gross weight (sea)	788.2 lbs (357.5 kg)
Number of cartons per pallet (sea)	48 pc(s)
Quantity per pallet (sea)	480 pc(s)
Pallet height (sea)	81.5" (2.07 m)
Shipping (inner) case weight	15.4 lbs (7 kg)
Certification	RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB
Harmonized System (HS) code	85176990
