What This Product Does
The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance

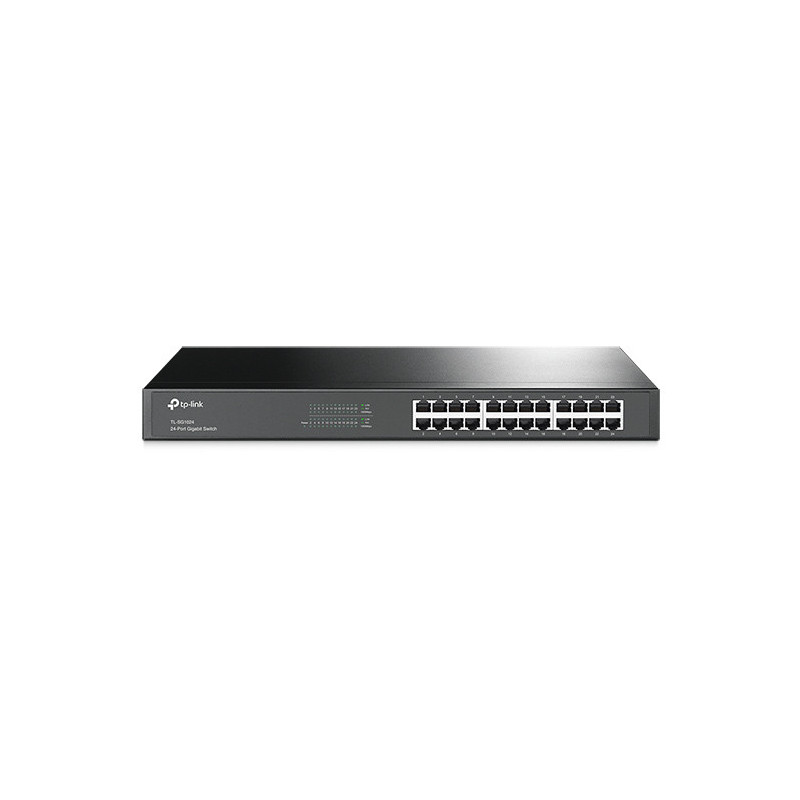

TP-Link TL-SG1024. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Rack mounting, Form factor: 1U

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	24
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Full duplex	Yes
Half duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Supported data transfer rates	10/100/1000 Mbps
Forwarding rate	35.7 Mpps
Store-and-forward	Yes
Maximum data transfer rate	1 Gbit/s
Jumbo frames support	Yes
Jumbo frames	10000
Supported network protocols	CSMA/CD, TCP/IP
Rack mounting	Yes
Form factor	1U
Product color	Black
LED indicators	Yes
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	13.62 W
Connectivity technology	Wired
Bandwidth	48 Gbit/s
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	32 - 104 °F
Heat dissipation	46.44 BTU/h
Width	17.3" (440 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Package width	9.84" (250 mm)
Package depth	20.8" (528 mm)
Package height	3.15" (80 mm)
Package weight	4.7 lbs (2.13 kg)
Certification	FCC, CE, RoHS
Connectivity LEDs	Y
Dimensions (W x D x H) (imperial)	17.3 x 7.1 x 1.7"
