Equipped with a high performance switching engine, the 8 Port PoE All-Gigabit Managed Switch performs optimally. It has low transmission delay, large buffer and is highly reliable.It also has a strong switching
capability and optimizes transmission performance when accessing Ultra HD videos. With its full metal design, the device has great heat dissipation and is low power consumption, working in environments ranging from –10°C to 55°C (+14°F to +131°F). With protection against overvoltage, EMC and overcurrent from power input terminals, the switch effectively resists interference from static electricity, lightning, and pulses. It also has powerful network management functions, supporting various types of web and network management software based on SNMP

PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.

Long Distance PoE
By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).

BT 90W (Red Port)
The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi- PoE standards, with a maximum output power consumption of 90W per port. Suitable for powering high-power devices.

Wide Operating Temperature
Supports working at ambient temperatures of –10 °C to +55 °C, and has built-in professional lightning-proof circuits that effectively reduce the impact of thunderstorms on network systems and improve system robustness, allowing the device to adapt to harsh environments.

Intelligent PoE
Provides power consumption control and real-time monitoring to guarantee priority of power supply for important ports and prevent malfunctioning caused by power consumption change. Supports ultra wide power supply, able to adapt to IPC power fluctuation.

Minimal WEB
Designed with a minimalist graphical WEB, easy to operate, which improves configuration efficiency.

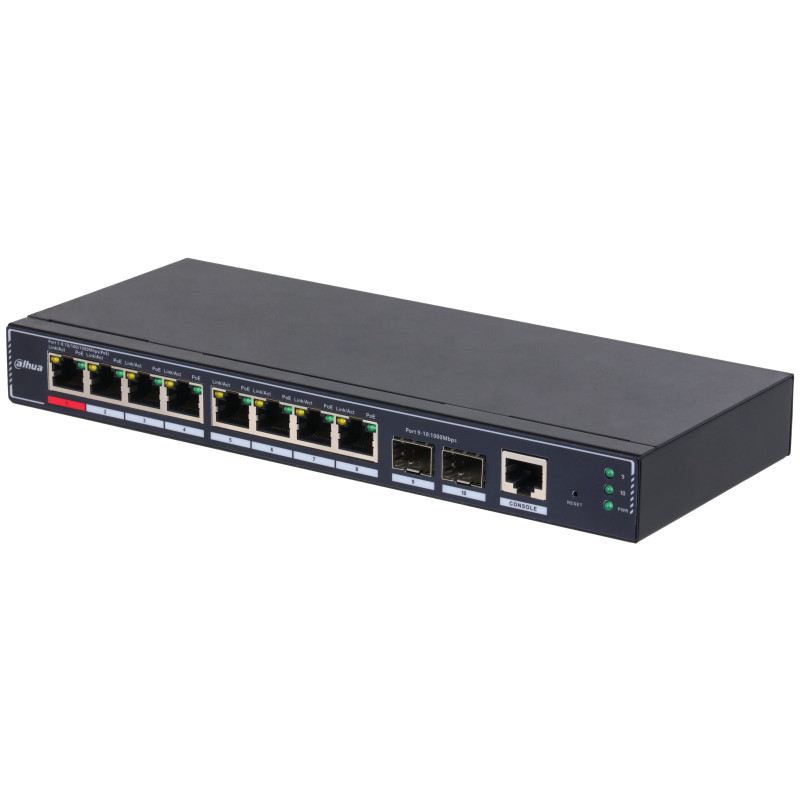

Dahua Technology PoE SG4010P-2F. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE.... DC input voltage: 48 - 57 V. Power over Ethernet (PoE). Wall mountable

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	No
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	8
SFP module slots quantity	2
Fiber uplink ports quantity	2
Console port	RJ-45
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Virtual LAN features	Port-based VLAN, Tagged VLAN
Number of VLANs	4000
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Forwarding rate	14.88 Mpps
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
DHCP features	DHCP client
IGMP snooping	Yes
Multicast support	Yes
Management protocols	SNMP V1/V2C/V3
Rack mounting	No
Product color	Black
Housing material	Steel
Reset button	Yes
LED indicators	Yes
Wall mountable	Yes
Fanless	Yes
Mean time between failures (MTBF)	1407459.54 h
Power source	DC
Power supply included	Yes
DC input voltage	48 - 57 V
Input current	2.22 A
Power consumption (max)	110 W
Power over Ethernet (PoE)	Yes
Total Power over Ethernet (PoE) budget	110 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95%
Width	9.45" (240 mm)
Depth	4.09" (104 mm)
Height	1.1" (28 mm)
Weight	22.6 oz (640 g)
Package width	12.4" (316 mm)
Package depth	9.45" (240 mm)
Package height	3.23" (82 mm)
Package weight	3.31 lbs (1.5 kg)
Compliance certificates	CE
Sustainability compliance	Yes
