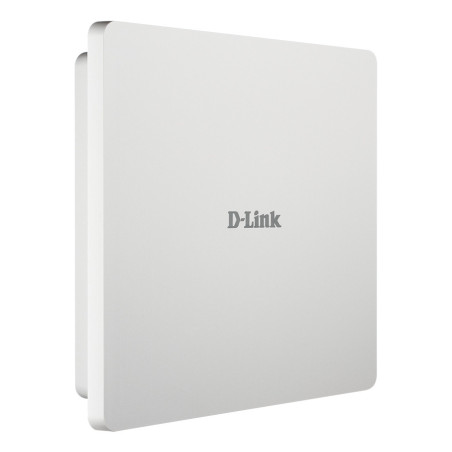

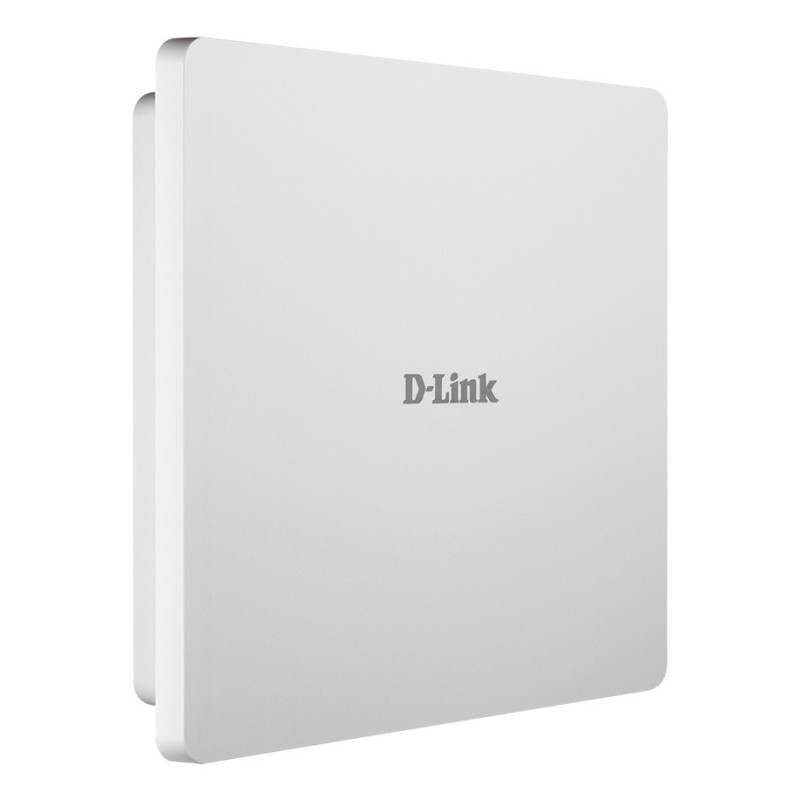

The WiFi4EU ready DAP-3666 Wireless AC1200 Wave 2 Dual-Band Outdoor PoE Access Point is a versatile, high power outdoor access point designed with harsh weather resistant features making it an ideal solution for creating outdoor wireless hotspot networks. Utilising the cutting-edge speed of 802.11ac Wave 2, it delivers maximum combined wireless signal rates of up to 1200Mbps and supports MU-MIMO technology that allows multiple devices to get high-bandwidth Wi-Fi signal at the same time, distributing data more efficiently. It is Passpoint® certified by Wi-Fi Alliance and complies with Hotspot 2.0, making the process of devices finding and getting access to the known network seamless.
For centralised network management, administrators can use D-Link’s free Nuclias Connect software or Nuclias Connect Hub (DNH-100) to configure and manage multiple access points. In addition to streamlining the management process, Nuclias Connect provides network administrators with the means to verify and conduct regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation.

D-Link AC1200. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1200 Mbit/s. Security algorithms: 64-bit WEP, SSID, 128-bit WEP. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product color: White. Power consumption (max): 10.5 W

2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1200 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Cabling technology	10/100/1000Base-T(X)
Transmitting power	26 dBmW
Mean time between failures (MTBF)	30000 h
Security algorithms	64-bit WEP, SSID, 128-bit WEP
Number of SSID supported	16
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes
Power over Ethernet (PoE)	Yes
DC voltage range	48 V
Power consumption (max)	10.5 W
Placement	Pole
Product color	White
Cable lock slot	Yes
LED indicators	Power
Antenna type	Internal
Antenna features	Integrated antenna
Antennas quantity	2
Antenna gain level (max)	6 dBi
Certification	FCC, IC, CE, UL, Wi-Fi Certified, Wi-Fi Certified Passpoint
Width	10.9" (277 mm)
Depth	1.97" (50 mm)
Height	9.45" (240 mm)
Quantity per pack	1 pc(s)
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-30 - 65 °C
Storage relative humidity (H-H)	5 - 95%
Harmonized System (HS) code	85176990
