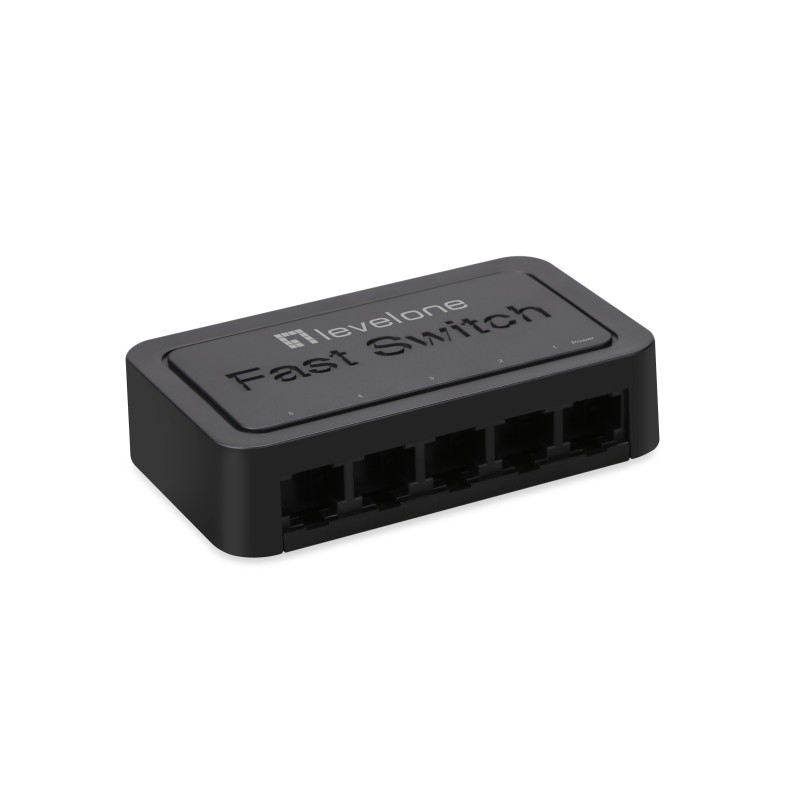

The LevelOne FEU-0512 is a wire-speed, non-blocking networking device that provides 5 ports 10/100 Mbps Ethernet connections. All ports support auto-negotiation and auto-MDI/MDIX sensing, eliminating the need for crossover cables or Uplink Ports. Each port can be used as general network port or as connecting port into a router, server, hub or another network switch.


LevelOne FEU-0512. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 1000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. DC input voltage: 5 V

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity	5
Networking standards	IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support	No
Full duplex	Yes
Half duplex	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
MAC address table	1000 entries
Switching capacity	1 Gbit/s
Packet buffer memory	0.744 MB
Product color	Black
LED indicators	Activity, Link, Power
Wall mountable	No
Fanless	Yes
Power source	DC
Power supply included	Yes
DC input voltage	5 V
Input current	0.55 A
Power consumption (typical)	1.3 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	3.47" (88.2 mm)
Depth	2.07" (52.7 mm)
Height	0.858" (21.8 mm)
Weight	1.66 oz (47 g)
Quick start guide	Yes
AC adapter included	Yes
Package type	Box
Package width	4.84" (123 mm)
Package depth	3.15" (80 mm)
Package height	3.27" (83 mm)
Package weight	4.94 oz (140 g)
Number of cartons per pallet (air)	24 pc(s)
Pallet length	31.5" (80 cm)
Pallet width	47.2" (120 cm)
Pallet height (air)	57.9" (147 cm)
Compliance certificates	CE, RoHS, UKCA
Country of origin	China
Master (outer) case width	10.7" (271 mm)
Master (outer) case length	16.9" (430 mm)
Master (outer) case height	17.5" (445 mm)
Master (outer) case weight	17.6 lbs (8 kg)
Quantity per master (outer) case	50 pc(s)
Sustainability compliance	Yes
