Level Up Your PC with WiFi 6
High-Gain Wireless USB Adapter

Your Upgrade to WiFi 6
Forget about buying a new PC. TX20U Plus delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.

Coverage Powered by Beamforming
High-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.

Escape the Congestion with MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.

Lower Your Ping with OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.

A Perfect Match for Faster Speeds
USB 3.0 ensures there’s no bottleneck between TX20U Plus and your PC.

Adjustable, Multi-Directional Antennas
Rotate and adjust the antennas 180° for the best reception from any location.

Simple Design and Placement
Find the best spot for network reception with TX20U Plus’s desktop-friendly design and 1-meter USB cable.

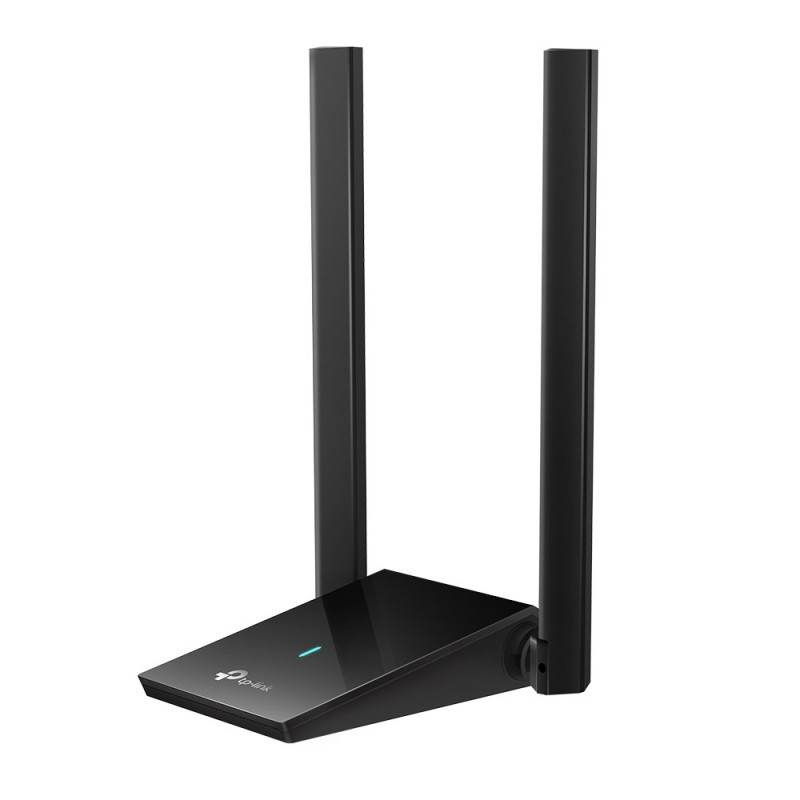

TP-Link Archer TX20U Plus. Connectivity technology: Wireless, Host interface: USB, Interface: WLAN. Maximum data transfer rate: 1800 Mbit/s, Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Antenna type: External, Product color: Black

Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
Ethernet LAN (RJ-45) ports	0
USB version	3.2 Gen 1 (3.1 Gen 1)
Maximum data transfer rate	1800 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rates supported	11,54,300,400,574,867,1200 Mbit/s
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3
Internal	No
Component for	PC
Product color	Black
Antenna type	External
Transmitting power (CE)	16 dBm
Transmitting power (FCC)	19 dBm
LED indicators	Status
Operating modes	Infrastructure mode
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	3.31" (84 mm)
Depth	6.15" (156.3 mm)
Height	0.756" (19.2 mm)
Package width	7.93" (201.5 mm)
Package depth	6.02" (153 mm)
Package height	1.83" (46.5 mm)
Package weight	8.11 oz (230 g)
Cables included	USB
Quick installation guide	Yes
Compliance certificates	RoHS, Federal Communications Commission (FCC), CE
Antennas quantity	2
MU-MIMO	Yes
Sustainability compliance	Yes
