The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.

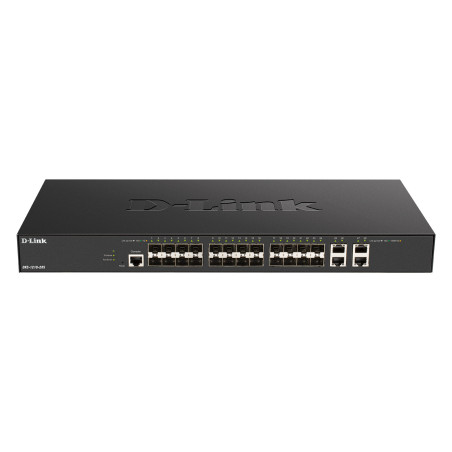

D-Link DXS-1210-28S. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 560 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z. Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L2/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Basic switching RJ-45 Ethernet ports quantity	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
10G Ethernet (copper) ports quantity	4
SFP+ module slots quantity	24
Console port	RJ-45
Networking standards	IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z
10G support	Yes
Cable types supported	Cat6, Cat6a, Cat7
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4094
MAC address table	32000 entries
Switching capacity	560 Gbit/s
Throughput	416.64 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Access Control List (ACL)	Yes
Access Control List (ACL) rules	256
IGMP snooping	Yes
Management protocols	SNMP v1/v2c/v3
GARP VLAN Registration Protocol (GVRP)	Yes
Rack mounting	Yes
Stackable	No
Form factor	1U
Product color	Black
LED indicators	Activity, Link, Speed
Number of fans	2 fan(s)
AC input voltage	100 - 240 V
Power consumption (max)	85.7 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-5 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	17.4" (441 mm)
Depth	8.25" (209.5 mm)
Height	1.73" (44 mm)
Weight	7.21 lbs (3.27 kg)
Manual	Yes
Certification	CE Class A FCC Class A VCCI Class A IC BSMI
Harmonized System (HS) code	85176990
