Transform your workplace with this large, scalable display that enriches collaboration and engagement, and promotes greater knowledge sharing with colleagues, clients or delegates using the latest and most versatile connectivity options. The EB-1485Fi has been designed to be easy to use, enriching collaborative and agile working environments.

Flexible display options and sizes
Deliver impactful sessions with a multi-touch display of up to 100 inches (16:9 standalone), 120 inches (16:6 standalone), or 155 inches using Epson's DuoLink feature, which combines two interactive display using built-in Edge Blending.

Sliding split screen
Combine up to four sources, such as video conference systems from multiple video sources and presentations, to optimise meeting interactions.

Transform your workplace with this large, scalable display that enriches collaboration and engagement, and promotes greater knowledge sharing with colleagues, clients or delegates using the latest and most versatile connectivity options. The EB-1485Fi has been designed to be easy to use, enriching collaborative and agile working environments.

Promotes collaboration and connectivity
The intuitive and easy-to-use UI, new touch home screen and new interactive OSD menu make it simple to set up and navigate across functions. Featuring multi-touch pen and finger capabilities, wireless BYOD connectivity and screen mirroring (Miracast). It also has secure user collaboration tools and an array of powerful connectivity options, both wireless and wired, including HDBaseT and HDMI out. The Epson iProjection App is available to download for free, providing seamless wireless connectivity and collaboration control from multiple devices and platforms. It's compatible with Windows, Office 365 suite and iOS, allowing the use of Office applications via PCs and tablets.

Fit and forget technology
Once installed, use for up to 20,000 hours without any maintenance, with the additional peace of mind of a five-year warranty. Helping to reduce running costs, and meaning you can 'fit and forget' and continue with the job in hand.

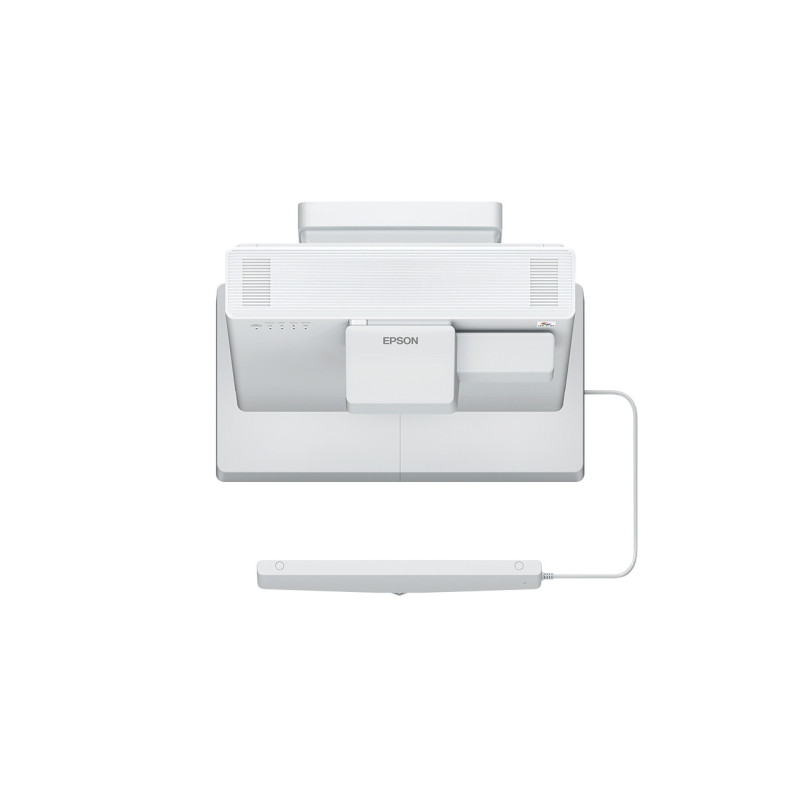

Epson EB-1485Fi. Projector brightness: 5000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 0.154" (3.9 mm), Zoom type: Auto. Supported graphics resolutions: 1920 x 1080 (HD 1080), Supported video modes: 1080p, Video processing: 10 bit. Serial interface type: RS-232C, HDMI connector type: Full-size

Projector brightness	5000 ANSI lumens
Projection technology	3LCD
Projector native resolution	1080p (1920x1080)
Contrast ratio (typical)	2500000:1
Native aspect ratio	16:9
Screen size compatibility	65 - 100"
Supported aspect ratios	16:9
Projection distance	0 - 30.7" (0 - 0.78 m)
Projection distance (wide)	0 - 15.7" (0 - 0.4 m)
Projection distance (tele)	0 - 23.6" (0 - 0.6 m)
Number of colors	1.07 billion colors
Projector brightness (economic mode)	3500 ANSI lumens
Vertical scan range	192 - 240 Hz
Keystone correction, horizontal	-3 - 3°
Keystone correction, vertical	-3 - 3°
Matrix size	0.62"
Heat dissipation	1244 BTU/h
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Focus	Manual
Fixed focal length	0.154" (3.9 mm)
Zoom capability	Yes
Zoom type	Auto
Zoom ratio	1.35:1
Throw ratio	0.27 - 0.37:1
Full HD	Yes
3D	No
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode
Adjustable color temperature	Yes
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
Composite video in	0
Component video (YPbPr/YCbCr) in	1
DVI port	No
Audio (L/R) in	0
Serial interface type	RS-232C
HDMI connector type	Full-size
S-Video inputs quantity	0
HDBaseT port	Yes
USB 2.0 ports quantity	2
USB 2.0 Type-B ports quantity	2
Headphone outputs	1
Microphone in	Yes
PC Audio in	Yes
PC Audio out	Yes
DC-in jack	Yes
Smart TV	No
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Miracast	Yes
Card reader integrated	No
Noise level	36 dB
Interactive	Yes
Interactive input supported	Interactive pen/Touch
Noise level (economic mode)	27 dB
On Screen Display (OSD)	Yes
Screen mirroring	Yes
Air filter	Yes
Composite sync	Yes
Country of origin	China
Password protection	Yes
Compatible operating systems	Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000
Built-in speaker(s)	Yes
RMS rated power	16 W
Number of built-in speakers	2
Product type	Ultra short throw projector
Market positioning	Business
Product color	White
Placement	Wall
Cable lock slot	Yes
Cable lock slot type	Kensington
Power source	AC
Power consumption (typical)	366 W
Power consumption (standby)	0.5 W
Power consumption (economy mode)	262 W
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Software support	via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Windows operating systems supported	Windows 10, Windows 10 x64, Windows 2000
Storage temperature (T-T)	-10 - 60 °C
Weight	20.5 lbs (9.3 kg)
Width	18" (458 mm)
Depth	14.8" (375 mm)
Height	8.27" (210 mm)
Package width	18.6" (472 mm)
Package depth	23.2" (590 mm)
Package height	25.2" (640 mm)
Package weight	61.1 lbs (27.7 kg)
Handheld remote control	Yes
Batteries included	Yes
Cables included	AC
Manual	Yes
Mounting brackets included	Yes
AC adapter included	Yes
WLAN adapter included	Yes
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management
Sustainability certificates	TCO
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Pallet weight	0 oz (0 g)
Quantity per pallet (UK)	12 pc(s)
Pallet weight (UK)	0 oz (0 g)
Harmonized System (HS) code	85286200
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
