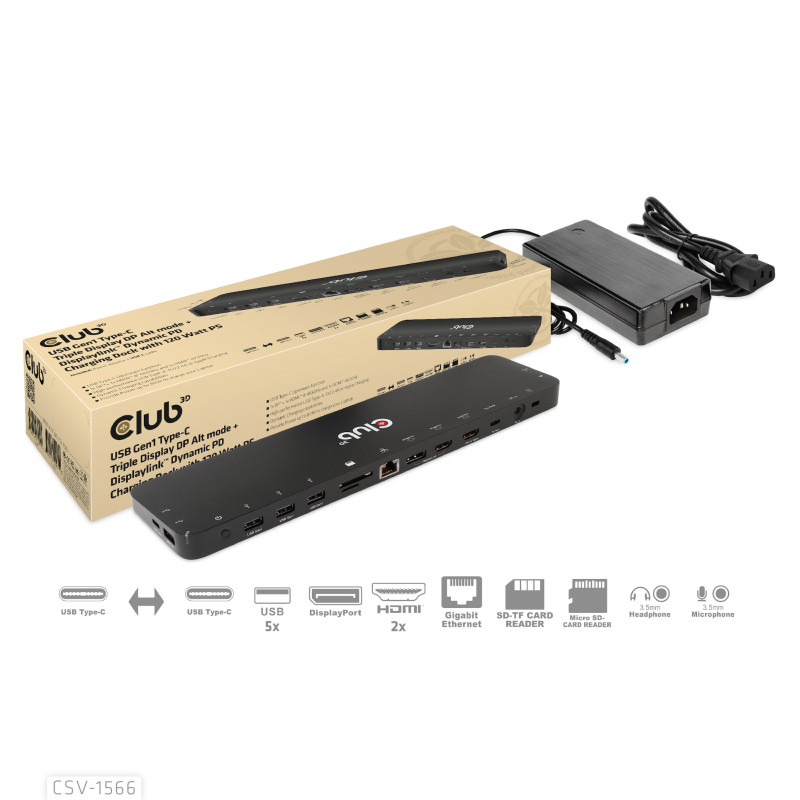

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio, video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile devices (Apple, Samsung phones, pads, etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with a max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.


CLUB3D CSV-1566. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Product color: Black, Compatible memory cards: MicroSD (TransFlash), SD, Compatibility: Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer. Power source type: DC. Width: 12" (304 mm), Depth: 3.03" (77 mm), Height: 0.709" (18 mm). Quantity per pack: 1 pc(s), Package width: 14.2" (360 mm), Package depth: 4.53" (115 mm)

Connectivity technology	Docking
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery	Yes
HDMI version	2.0
DisplayPorts quantity	1
Combo headphone/mic port	Yes
DC-in jack	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Product color	Black
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Plug and Play	Yes
Compatibility	Lenovo Dell Acer Asus. MSI. Toshiba Apple HP Razer
Certification	Meets ROHS, FCC, and CE EMI requirements
Power source type	DC
Width	12" (304 mm)
Depth	3.03" (77 mm)
Height	0.709" (18 mm)
Weight	12.6 oz (358 g)
Quantity per pack	1 pc(s)
Package width	14.2" (360 mm)
Package depth	4.53" (115 mm)
Package height	2.56" (65 mm)
Package weight	25.6 oz (726 g)
Cables included	USB Type-C
AC adapter included	Yes
Quick start guide	Yes
Harmonized System (HS) code	84733020
Voltage	20.5 V
