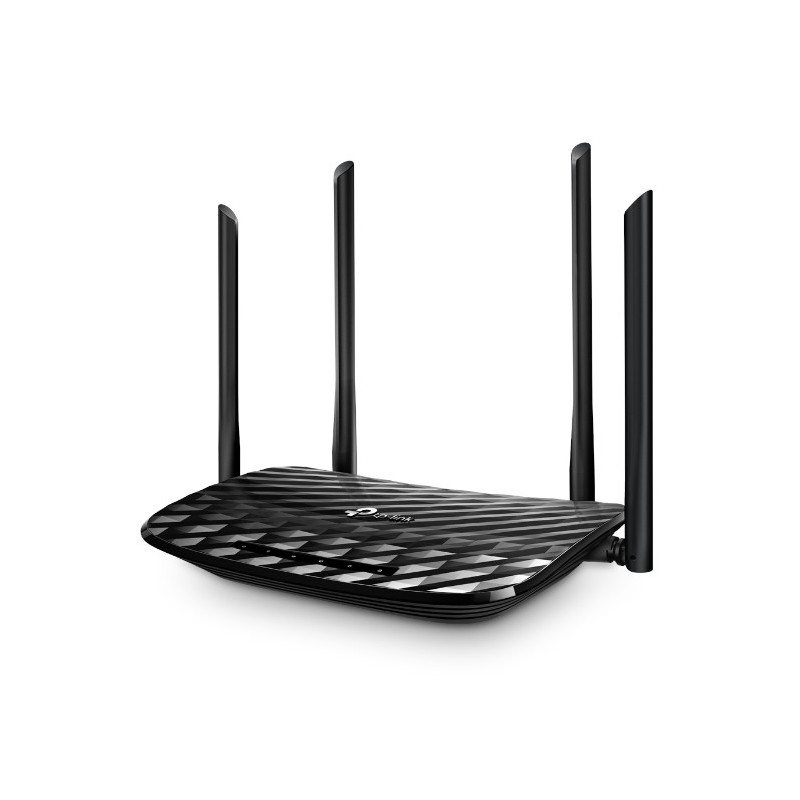

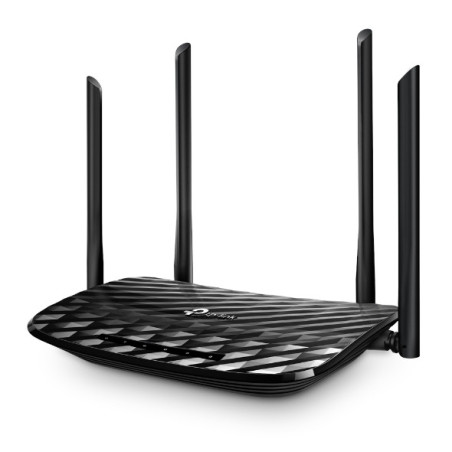

Smooth Entertainment with AC1200 Dual Band Wi-Fi
The Archer C6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to 867Mbps, ideal for HD video streaming and lag-free online gaming.

5 High-Performance Antennas
Wi-Fi Coverage throughout Your Home
Four external antennas and one internal antenna send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony.With a powerful chipset, the Archer C6 provides ideal Wi-Fi coverage. The 2.4GHz band coverage is especially impressive, eliminating Wi-Fi dead-zones and beating that of other competing routers.

It’s An Access Point, Too
Switch the working mode of the Archer C6 to Access Point Mode to share your wired network with other wireless devices.

MU-MIMO Matters
Increase Speed, Throughput, Capacity
MU-MIMO lets the Archer C6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!

Gigabit Connectivity, 10× Faster
With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than standard Ethernet
connections. Connect your favorite wired devices to the Archer C6 and get impressed!

Easy Setup and Management with the Tether APP
The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer C6 and manage your network settings.

TP-Link Archer C6. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: DoS, SPI Firewall, IP and MAC Address Binding. Routing protocols: IP, Supported network protocols: IPv4, IPv6

Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding	Yes
Port triggering	Yes
Dynamic DNS (DDNS)	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
Wireless Distribution System (WDS) bridge	Yes
Receiver sensitivity	5GHz: 11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm
3G	No
4G	No
Ethernet LAN (RJ-45) ports	4
USB port	No
DC-in jack	Yes
Wi-Fi Multimedia (WMM)/(WME)	Yes
Quality of Service (QoS) support	Yes
Reset button	Yes
WPS push button	Yes
MU-MIMO technology	Yes
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Firewall	Yes
Firewall security	DoS, SPI Firewall, IP and MAC Address Binding
Guest access	Yes
DoS attack prevention	Yes
Parental control	Yes
DMZ support	Yes
Network address translation (NAT)	Yes
DHCP client	Yes
DHCP server	Yes
Universal Plug and Play (UPnP)	Yes
Routing protocols	IP
Supported network protocols	IPv4, IPv6
Product type	Tabletop router
Product color	Black
Wall mountable	Yes
LED indicators	LAN, Power, Status, WLAN, WPS
On/off switch	Yes
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick start guide	Yes
Antenna design	External
Antennas quantity	5
Transmit power	CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)
Power source type	DC
Output voltage	12 V
Output current	1 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP
Linux operating systems supported	Yes
Mac operating systems supported	macOS
Mac compatibility	Yes
Width	9.06" (230 mm)
Depth	5.67" (144 mm)
Height	1.38" (35 mm)
Package width	13.8" (350 mm)
Package depth	9.45" (240 mm)
Package height	3.23" (82 mm)
Number of products included	1 pc(s)
