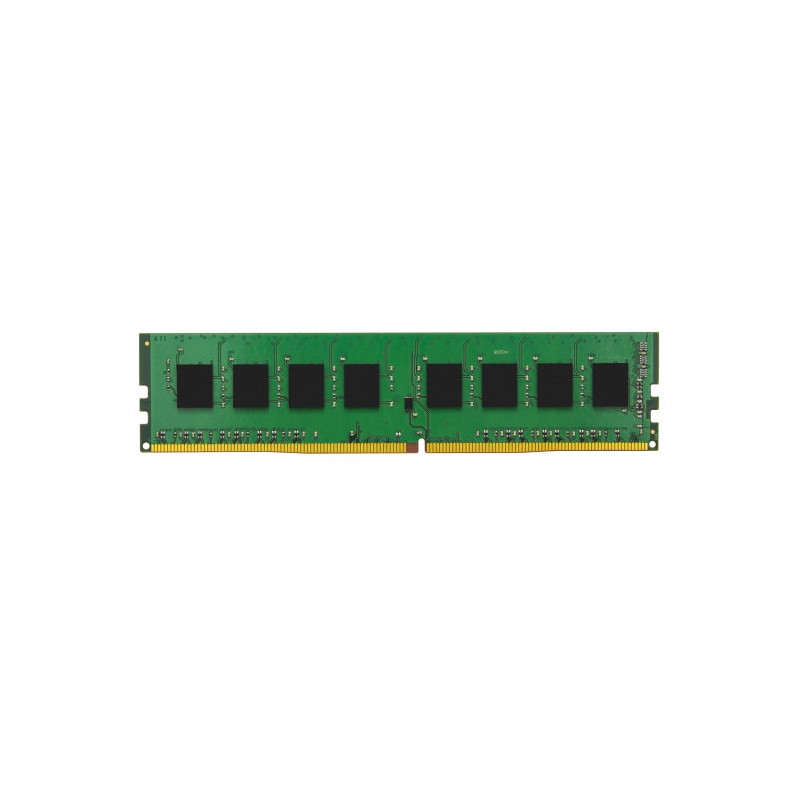

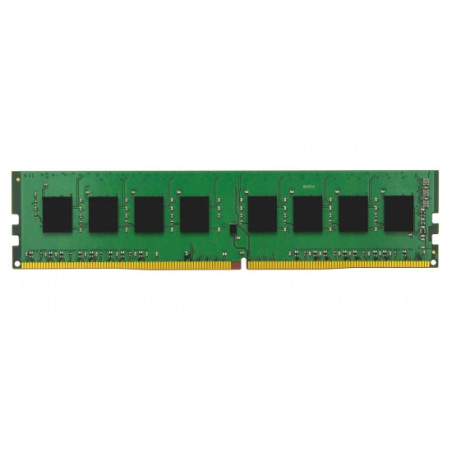

This document describes ValueRAM's KVR26N19S8/8 is a 1G x 64-bit (8GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of
19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:



Kingston Technology ValueRAM 8GB DDR4 2666MHz. Component for: PC/server, Internal memory: 8 GB, Memory layout (modules x size): 1 x 8 GB, Internal memory type: DDR4, Memory clock speed: 2666 MHz, Memory form factor: 288-pin DIMM, CAS latency: 19, Product color: Green

Internal memory	8 GB
Memory layout (modules x size)	1 x 8 GB
Internal memory type	DDR4
Memory clock speed	2666 MHz
Component for	PC/server
Memory form factor	288-pin DIMM
ECC	No
Buffered memory type	Unregistered (unbuffered)
CAS latency	19
Memory ranking	1
Memory voltage	1.2 V
Module configuration	1024M x 64
Row cycle time	45.75 ns
Refresh row cycle time	350 ns
Row active time	32 ns
SPD profile	Yes
Country of origin	Taiwan
Product color	Green
Cooling type	Heatsink
Lead plating	Gold
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Operating temperature (T-T)	0 - 85 °C
Storage temperature (T-T)	-55 - 100 °C
Compliance certificates	RoHS
Doesn't contain	Halogen
Width	5.25" (133.3 mm)
Height	1.23" (31.2 mm)
Harmonized System (HS) code	84733020
