Powered by AMD Ryzen™ 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.

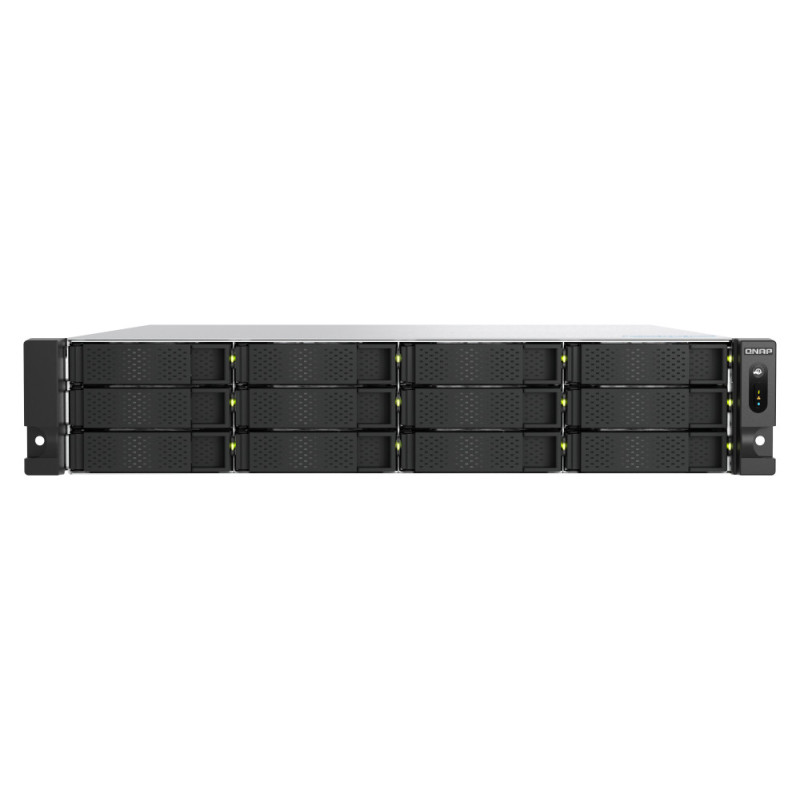

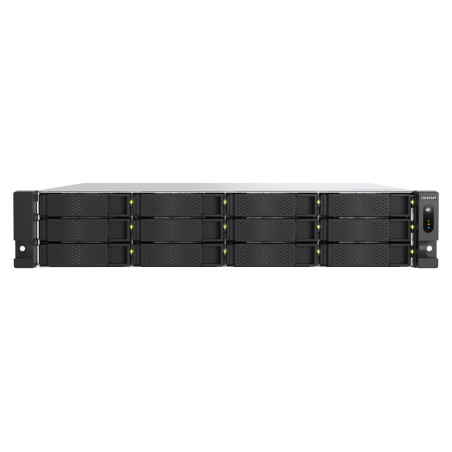

QNAP TS-H1277AXU-RP. Type: NAS. Chassis type: Rack (2U). Device class: Large Enterprise Business. Processor family: AMD Ryzen™ 7. Internal memory: 32 GB, Internal memory type: DDR5. Operating system installed: QuTS hero

Storage drives installed	No
Number of storage drives supported	12
Installed storage drive type	No
Supported storage drive types	HDD & SSD
RAID support	Yes
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Online RAID migration	Yes
Online RAID expansion	Yes
RAID rebuild	Yes
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
Disk roaming	Yes
Processor family	AMD Ryzen™ 7
Processor manufacturer	AMD
Processor boost frequency	5.3 GHz
Processor cores	8
Processor threads	16
Bus type	DMI3
CPU configuration (max)	1
Internal memory	32 GB
Internal memory type	DDR5
Maximum RAM supported	192 GB
Memory slots	4
Memory form factor	UDIMM
ECC	Yes
Flash memory	5000 MB
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500,5000,10000 Mbit/s
Ethernet LAN data rate supported (max)	10000 Mbit/s
Copper ethernet cabling technology	10GBASE-T
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	IPv4, IPv6
Dynamic DNS (DDNS)	Yes
Ethernet LAN (RJ-45) ports	4
USB port	Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
PCI Express x8 (Gen 4.x) slots	1
Chassis type	Rack (2U)
Cooling type	Active
Product color	Black
Number of fans	3 fan(s)
Fan diameter	2.36" (6 cm)
LED indicators	HDD, LAN, Power, SSD, Status
Type	NAS
Device class	Large Enterprise Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Snapshot	Yes
Management protocols	SNMP V2/V3
Web-based management	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, TLS
Access Control List (ACL)	Yes
Reset button	Yes
On/off switch	Yes
Built-in FTP server	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
System log	Yes
Hot spare	Yes
Disk scan	Yes
S.M.A.R.T. support	Yes
Share folder	CIFS/SMB
Operating system installed	QuTS hero
Operating system version	h5.0.0
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Linux operating systems supported	CentOS 7.0, Ubuntu 14.04
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power supply location	Built-in
Power supply unit (PSU) capacity	500 W
Number of power supply units	2
Redundant power supply (RPS) support	Yes
Power consumption (typical)	367.65 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Width	19" (482 mm)
Depth	21.7" (550 mm)
Height	3.49" (88.6 mm)
Cables included	AC, LAN (RJ-45)
Power cables quantity	2
Number of screws	84
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	Yes
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Harmonized System (HS) code	84714100
