Kingston’s KC600 is a full-capacity SSD designed to provide remarkable performance and optimised to provide functional system responsiveness with incredible boot, loading and transfer times. It comes in both 2.5" and mSATA form factors using SATA Rev 3.0 interface with backwards compatibility. The KC600 utilises the latest 3D TLC NAND technology while supporting a full security suite that includes AES 256-bit hardware encryption, TCG Opal and eDrive. It features read/write speeds of up to 550/520MB/s* to efficiently store your data up to 2TB**. It’s available in a bundle kit that provides everything you need for a smooth and easy desktop and notebook installation and upgrade.

Remarkable performance
Using the latest 3D TLC NAND technology, it enables read/write speeds of up to 550/520MB/s.*

Full-security suite
Protect and secure your data with Kingston’s self-encrypting drive.

Easy installation/upgrade
KC600 is available in an upgrade bundle kit that has everything you need to install your drive easily.

Multiple capacities
KC600 is available in a range of full capacities from 256GB to 2TB.**

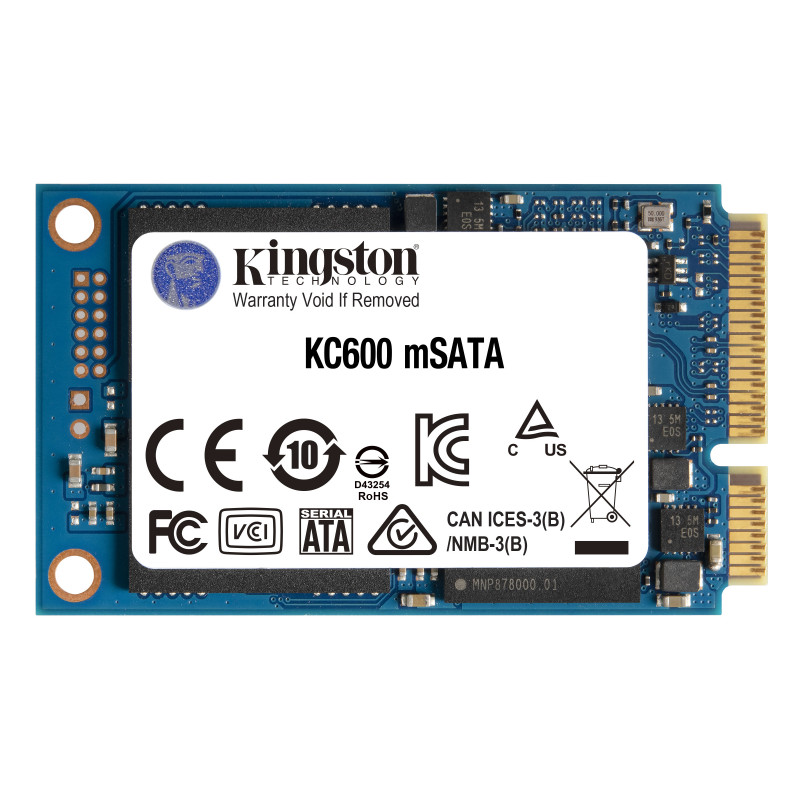

Kingston Technology KC600. SSD capacity: 512 GB, SSD form factor: mSATA, Read speed: 550 MB/s, Write speed: 520 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop

SSD capacity	512 GB
SSD form factor	mSATA
Interface	Serial ATA III
NVMe	No
Memory type	3D TLC
Component for	PC/Laptop
Hardware encryption	Yes
Security algorithms	256-bit AES-XTS
Data transfer rate	6 Gbit/s
Read speed	550 MB/s
Write speed	520 MB/s
Random read (4KB)	90000 IOPS
Random write (4KB)	80000 IOPS
Controller type	SMI SM2259
Mean time between failures (MTBF)	1000000 h
TBW rating	300
Power consumption (read)	1.2 W
Power consumption (write)	2.4 W
Power consumption (average)	0.1 W
Power consumption (idle)	0.08 W
Width	1.18" (29.9 mm)
Depth	2" (50.8 mm)
Height	0.191" (4.85 mm)
Weight	0.212 oz (6 g)
Package width	1.8" (45.7 mm)
Package depth	0.3" (7.62 mm)
Package height	3.75" (95.2 mm)
Package weight	0.492 oz (13.9 g)
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	2.17 G
Non-operating vibration	20 G
Country of origin	China
Master (outer) case width	4.13" (104.8 mm)
Master (outer) case length	8.13" (206.4 mm)
Harmonized System (HS) code	84717070
Master (outer) case height	2.13" (54 mm)
Master (outer) case weight	14.7 oz (417 g)
Quantity per master (outer) case	25 pc(s)
