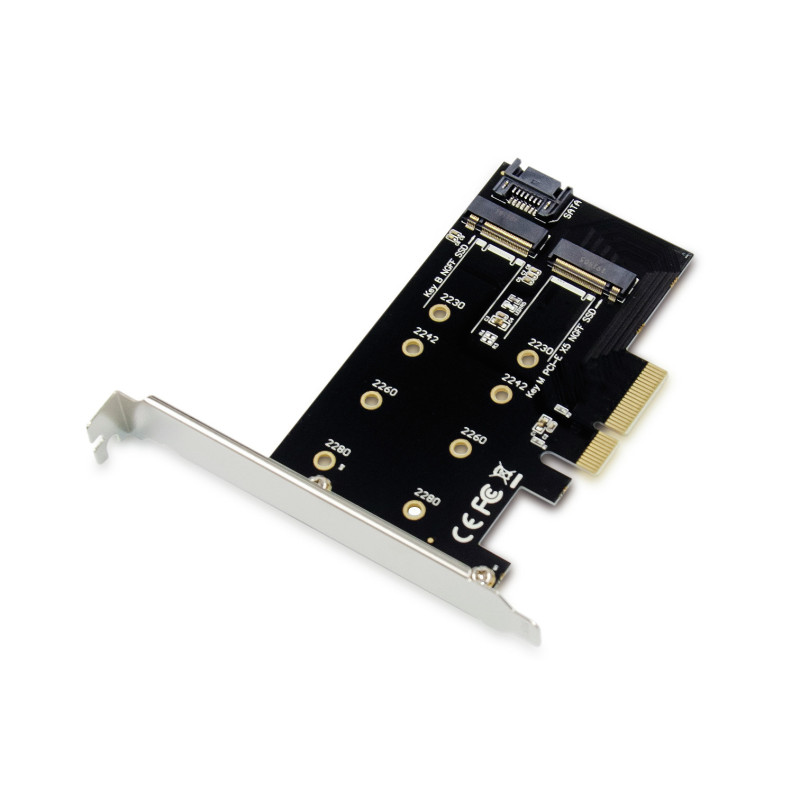

This 2-in-1 M.2 SSD PCIe Adapter is a multi-functional NVMe conversion card, which can support the PCIe protocol NVMe SSD to connect directly to the motherboard, or the SATA Protocol NVMe SSD to connect to the motherboard SATA port with a SATA cable. It also features ultra-fast PCI Express 3.0 X4 lanes, transmitting bandwidth up to 32GT/S, as well as Serial ATA v3.0 to transmit at speeds up to 6Gbps. This adapter improves system speed, and will enhance the efficiency of office and entertainment equipment.

Conceptronic EMRICK04B. Host interface: PCIe, Output interface: M.2, Expansion card standard: PCIe 3.0. Cooling type: Passive, Country of origin: China. Chipset: JMB585, Data transfer rate (max): 6 Gbit/s. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 2.76" (70 mm), Depth: 4.49" (114 mm), Height: 0.709" (18 mm)

Host interface	PCIe
Output interface	M.2
Expansion card standard	PCIe 3.0
SATA revision	3.0
Internal SATA ports quantity	1
Number of M.2 (M) slots	1
Number of M.2 (B) slots	1
Internal	Yes
Cooling type	Passive
Country of origin	China
Chipset	JMB585
Data transfer rate (max)	6 Gbit/s
Plug and Play	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Width	2.76" (70 mm)
Depth	4.49" (114 mm)
Height	0.709" (18 mm)
Weight	1.48 oz (42 g)
Cables included	SATA
Mounting brackets included	Yes
Screws included	Yes
Quick installation guide	Yes
Package width	5.2" (132 mm)
Package depth	6.14" (156 mm)
Package height	1.02" (26 mm)
Package weight	3.53 oz (100 g)
Harmonized System (HS) code	84733020
Quantity per master (outer) case	30 pc(s)
Master (outer) case width	11" (280 mm)
Master (outer) case length	7.09" (180 mm)
Master (outer) case height	16.3" (415 mm)
Master (outer) case weight	7.94 lbs (3.6 kg)
