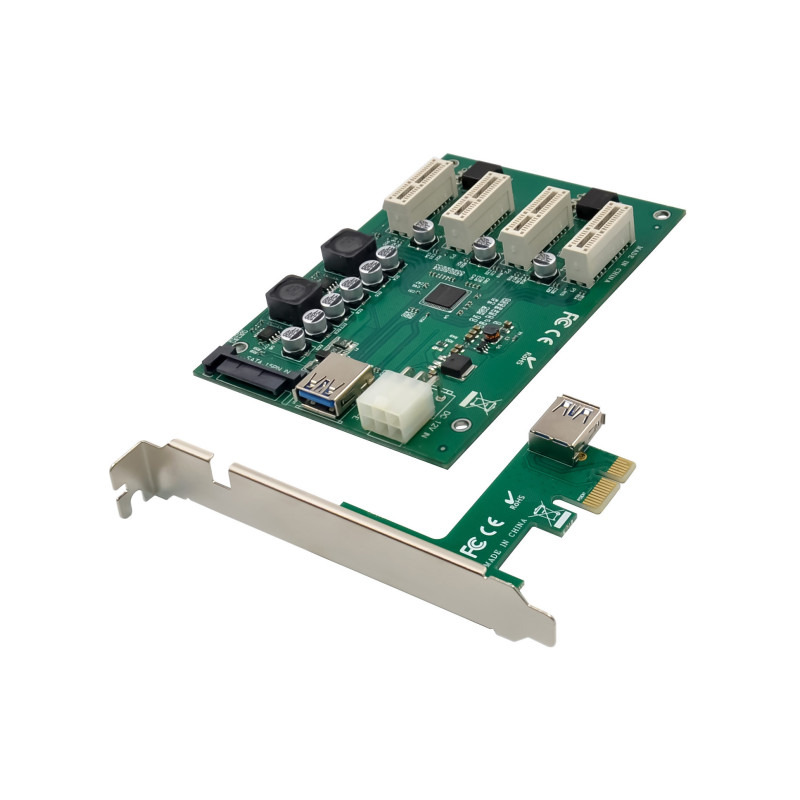

The PCIe x1 to 4-Port PCIe x1 Riser Card is a PCIe packet switch host controller, with 1 PCIe x1 Gen 2 upstream port to 4 PCIe x1 Gen 2 downstream ports. It can be extended to 4 PCIe x1 Ports for connecting different PCIe devices, enabling users to extend PCIe ports on a motherboard or embedded system.

Conceptronic EMRICK10G. Host interface: PCIe, Output interface: PCIe, Expansion card standard: PCI 2.0. Product color: Green, Purpose: PC, Country of origin: China. Windows operating systems supported: Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10.... Width: 4.72" (120 mm), Depth: 3.27" (83 mm), Height: 0.787" (20 mm). Cables included: USB Type-A, Package width: 4.92" (125 mm), Package depth: 6.89" (175 mm)

Host interface	PCIe
Output interface	PCIe
Expansion card standard	PCI 2.0
PCI Express slots quantity	4
SATA power connector type	SATA 6-pin, SATA 15-pin
Internal	Yes
Product color	Green
Purpose	PC
Country of origin	China
Plug and Play	Yes
Windows operating systems supported	Windows 7 Ultimate x64, Windows 10, Windows 7 x64, Windows 10 Education, Windows 8, Windows 10 Education x64, Windows 7, Windows 8 Enterprise, Windows 10 Enterprise, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows XP, Windows 10 Enterprise x64, Windows 7 Enterprise x64, Windows 8 Pro, Windows XP Home, Windows 10 Home, Windows 7 Home Basic, Windows 8 Pro x64, Windows XP Home x64, Windows 10 Home x64, Windows 7 Home Basic x64, Windows 8 x64, Windows XP Professional, Windows 10 IOT Core, Windows 7 Home Premium, Windows 8.1, Windows XP Professional x64, Windows 10 IoT Enterprise, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 10 Pro, Windows 7 Professional, Windows 8.1 Enterprise x64, Windows 10 Pro x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10 x64, Windows 7 Starter, Windows 8.1 Pro x64, Windows 7 Starter x64, Windows 8.1 x64, Windows 7 Ultimate
Linux operating systems supported	Yes
Width	4.72" (120 mm)
Depth	3.27" (83 mm)
Height	0.787" (20 mm)
Weight	3.25 oz (92 g)
Cables included	USB Type-A
Quick installation guide	Yes
Package width	4.92" (125 mm)
Package depth	6.89" (175 mm)
Package height	1.18" (30 mm)
Package weight	6.35 oz (180 g)
Package type	Box
Harmonized System (HS) code	84733020
Quantity per master (outer) case	30 pc(s)
Master (outer) case width	13.4" (340 mm)
Master (outer) case length	8.07" (205 mm)
Master (outer) case height	15.9" (405 mm)
Master (outer) case weight	12.9 lbs (5.85 kg)
