The active optical cable (AOC) of the series Equip 11943x is a wiring technology that accepts the same electrical inputs as a traditional copper cable, but uses optical fiber between connectors to extend HDMI signals without loss or latency. Our hybrid cable design consists of optical fibers and copper wires. High-speed TMDS signals are transmitted through multimodal optical fibres, while low frequency control signals are transmitted through copper wires. The range of active optical cables offers up to 100 m away without a decrease in signal quality or the need for a separate power supply.

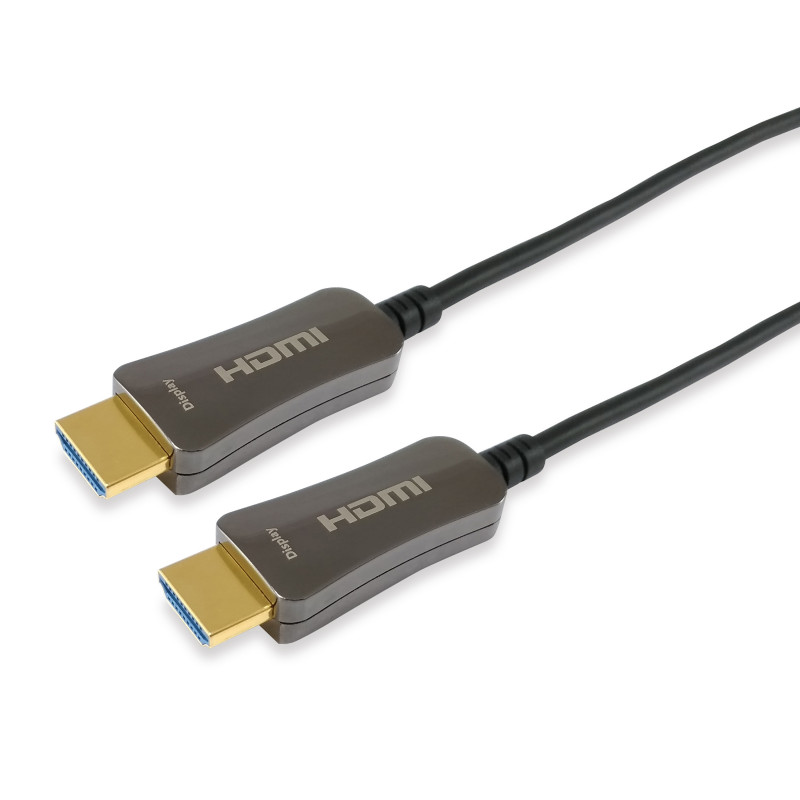

Equip 119432 Active optical cable HDMI 2.0, 70 m, 4K/60Hz. Cable length: 70 m, Connector 1: HDMI Type A (Standard), Connector Genre 1: Male, Connector 2: HDMI Type A (Standard), Connector Gender 2: Male, HDMI Version: 2.0, 3D Compatibility, Data Transfer Speed: 18 Gbit/s, Audio Return Channel (ARC), Product color: Black

Cable length	70 m
Connector 1	HDMI Type A (Standard)
Connector 2	HDMI Type A (Standard)
Connector Genre 1	Man
Connector Genre 2	Man
Product color	Black
Connector Shape Factor 1	Right
Connector Shape Factor 2	Right
HDMI version	2.0
3D compatibility	Yes
Audio Return Channel (ARC)	Yes
Ethernet HDMI channel	Yes
HDCP	Yes
hDCP version	2.0
Data transfer speed	18 Gbit/s
cable material	Copper
Plug & Play	Yes
Certification	EC
Cable diameter	4.8 mm
Quantity per package	1 pc
Packaging width	335 mm
Deep packaging	326 mm
Height packaging	74 mm
Packaging weight	1,44 kg
Type of packaging	Box
Country of origin	China China China
Harmonized System Code (SA)	84733080
Width Main Box	480 mm
Length of the main cardboard	480 mm
Main box height	420 mm
Main Carton Weight	29 kg
Quantity for main carton	16 p
