The active optical cable (AOC) Series Equip 11943X is a wiring technology that accepts the same electrical inputs of a traditional copper cable, but uses the optical fiber between the connectors to extend HDMI signals without loss or latency. Our hybrid cable project consists of optical fibers and copper wires. High-speed TMDS signals are transmitted through multimodal optical fibers, while low-frequency control signals are transmitted through copper wires. The range of active optical cables offers up to 100 m away without a decrease in signal quality or the need for a separate power supply.

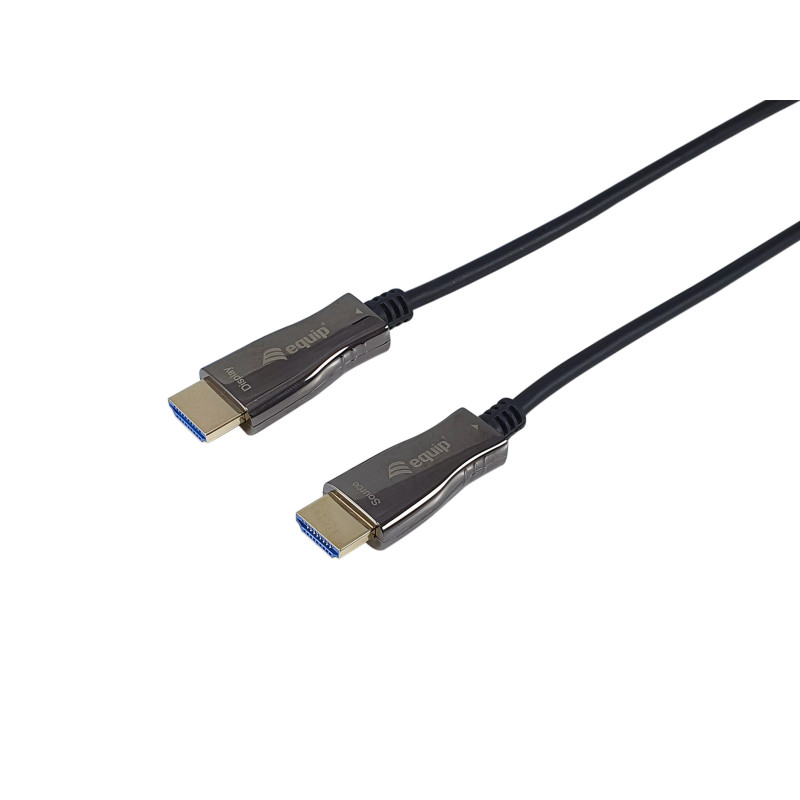

Equip 119433 HDMI 2.0 active optical cable, 100 m, 4K / 60Hz. Cable length: 100 m, connector 1: HDMI type A (standard), connector gender 1: male, connector 2: HDMI type A (standard), connector gender 2: male, plating contacts: gold, HDMI version: 2.0, 3D compatibility, color of the product: black

Cable length	100 m
Connector 1	HDMI Type A (standard)
Connector 2	HDMI Type A (standard)
KNOW OF THE CONNECTOR 1	Male
KNOW OF THE CONNECTOR 2	Male
Product color	Black
Plating Contacts	Gold
Connector shape 1	Straight
Connector shape 2	Straight
HDMI version	2.0
3D compatibility	Yup
Supported graphic resolutions	1920 x 1200 (WUXGA), 2560 x 1440, 3840 x 2160
HDMI Ethernet Channel	Yup
HDCP	Yup
HDCP version	2.2
Bandwidth	18000 MB / s
High Dynamic Range (HDR) Supported	Yup
Maximum refresh time	240 Hz
Cable material	Copper
Cable coating material	Polyvinyl chloride (PVC)
Certificates of conformity	CE, ROHS
Weight	2.95 kg
Package	1 pc
Width package	270 mm
Depth pack	90 mm
Package height	270 mm
Type of package	Box
Country of origin	China
Harmonized system code (SA)	8544421900
Main box width	370 mm
Main cardboard length	330 mm
Main box height	480 mm
Main cardboard weight	15.8 kg
Quantity for main cardboard	5 pcs
