"The active optical cable (AOC) DisplayPort 1.4 of Equip 119445 is a high-performance cable used for transmitting digital video signals over long distances. Unlike copper cables, which have limitations on the transmission distance of signals without signal degradation, DisplayPort 1.4 AOC It can transmit data up to 100 meters without the need for additional signal repeaters or boosters.

The cable is designed to support the DisplayPort 1.4 standard, which offers high bandwidth and supports resolutions up to 8K to 60Hz or 4K to 120Hz. DisplayPort 1.4 AOC It also supports High Dynamic Range (HDR) and Display Stream Compression (DSC), which allows even higher resolutions and update frequencies.

The active component of the cable is a microchip embedded in the connector that converts the electrical signals into optical signals, which are then transmitted on the optical fiber. The cable is also immune to electromagnetic interference (EMI) and radiofrequency interference (RFI), which makes it ideal for use in environments with high levels of electromagnetic interference. "

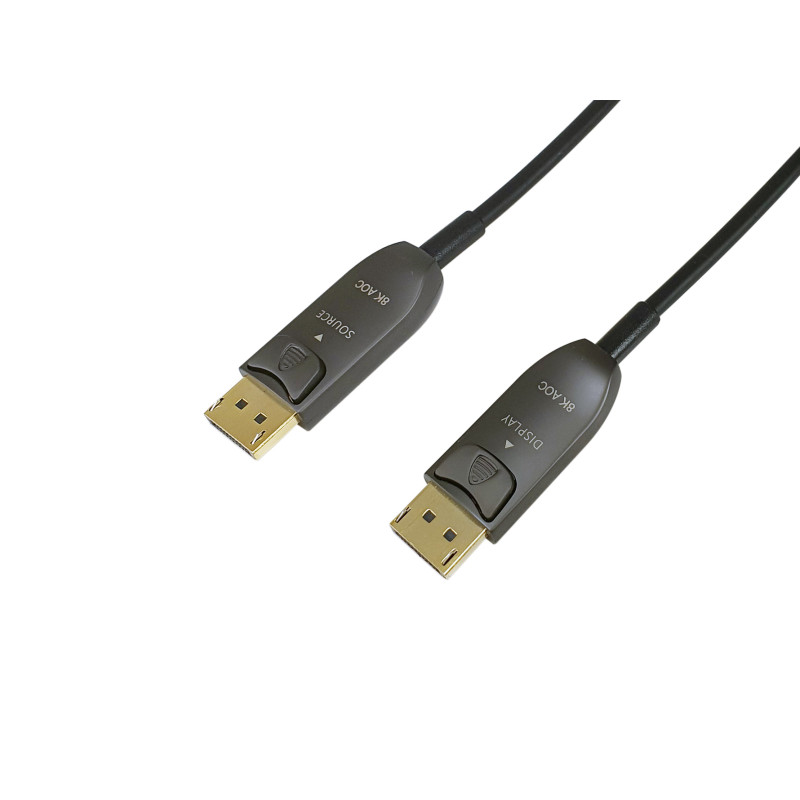

Equip 119445 Active optical cable DisplayPort 1.4, 50 m, 8K / 60Hz. Cable length: 50 m, connector 1: DisplayPort, connector 2: DisplayPort. Certificates of conformity: RoHS, CE. Weight: 1.68 kg. Width packaging: 265 mm, depth packaging: 53 mm, Packaging height: 265 mm. Quantity for package: 1 pcs

Cable length	50 m
Connector 1	DisplayPort
Connector 2	DisplayPort
KNOW OF THE CONNECTOR 1	Male
KNOW OF THE CONNECTOR 2	Male
Maximum resolution	7680 x 4320 pixels
Product color	Black
Connector shape factor 1	Straight
Connector shape factor 2	Straight
Plating Contacts	Gold
DisplayPort version	1.4
Supported graphic resolutions	3840 x 2160, 2560 x 1440, 5120 x 2880, 7680 x 4320, 1920 x 1200 (WUXGA)
Maximum refresh time	120 Hz
HDCP	Yup
HDCP version	2.2
Display flow compression (DSC)	Yup
High Dynamic Range (HDR) Supported	Yup
Bandwidth	32400 MB / s
Multi-pursuing transport (MST)	Yup
Certificates of conformity	RoHS, CE
Weight	1,68 kg
Width packaging	265 mm
Packaging depth	53 mm
Packaging height	265 mm
Type of packaging	Box
Packal weight	1,88 kg
Quantity for package	1 pc
Country of origin	China
Main box width	300 mm
Main cardboard length	280 mm
Main box height	490 mm
Main cardboard weight	9.4 kg
Quantity for main cardboard	5 pcs
Compliance with sustainability	Yup
