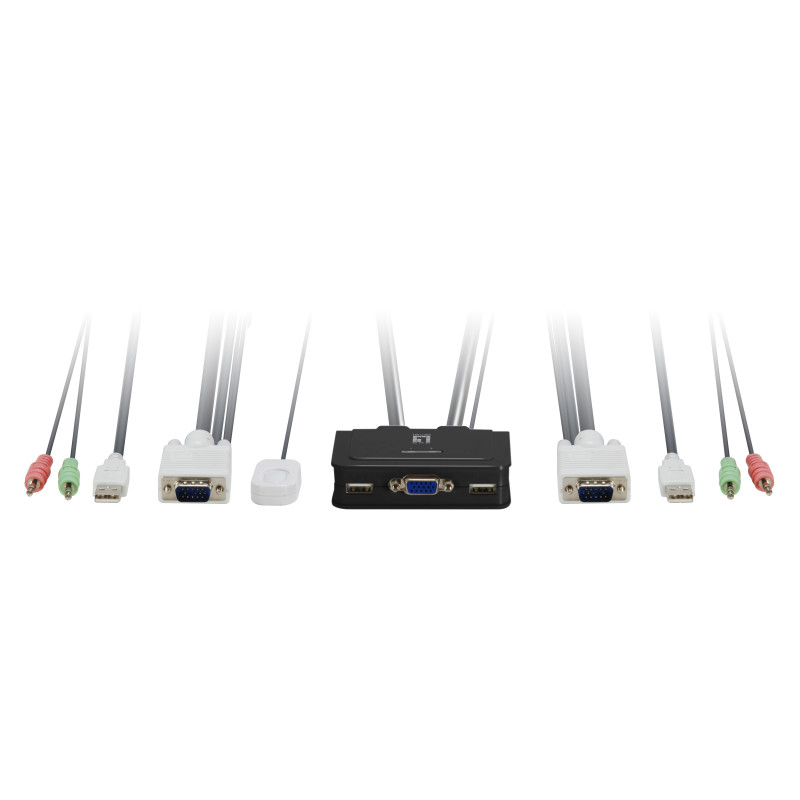

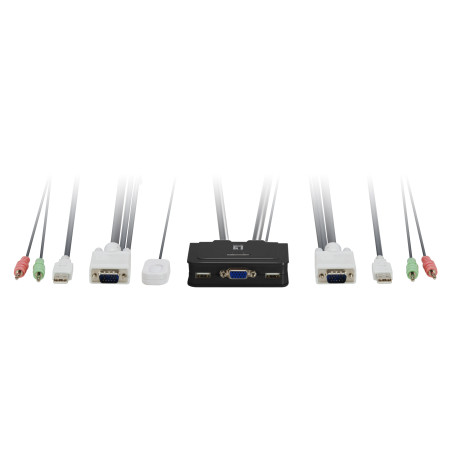

The LevelOne KVM-0223 USB Cable KVM Switch offers users a high resolution VGA video interface and eliminates connection headaches with two sets of fixed USB KVM & Audio / Mic combo cables. A wired QuickSwitch! button further enhances the user’s experience by switching from one computer to another with just the touch of a button.

The LevelOne KVM-0223 also supports switching client software with both Windows and Mac OS supported. LevelOne freeware can be installed on networked computers for intuitive menu-driven switching action. A desktop icon displays which port is currently active, giving users an easy interface with the devices, an LED display provides easy status monitoring and keyboard hotkeys offer even more convenience with a third way of switching between devices.

The two USB 2.0 keyboard and mouse ports are transparent USB hub ports that feature full driver support for advanced keyboard/mouse action. In addition, they can also be connected to other high-speed devices such as USB disk storage.

- Control and manage 2 computers by using a single USB keyboard, mouse and monitor
- 1 x wired QuickSwitch! Button for instant switching
- 2 x fixed VGA USB KVM audio/mic combo cables
- Windows and Mac switching software support
- USB 2.0 hub ports for keyboard, mouse or other high-speed USB devices
- VGA analog video up to 2048 x 1536 pixels
- Independent/simultaneous switching of PC and audio/mic channel
- User-definable hotkeys and universal hotkey for computer switching
- LED display for easy status monitoring

LevelOne KVM-0223. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Maximum resolution: 2048 x 1536 pixels. Product color: Black, Cable length: 35.4" (0.9 m), Certification: CE, FCC. Windows operating systems supported: Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,.... Compliance certificates: RoHS

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
USB 2.0 ports quantity	2
Audio connections	Yes
Headphone outputs	1
Number of microphone inputs	1
Maximum resolution	2048 x 1536 pixels
Product color	Black
Cable length	35.4" (0.9 m)
LED indicators	Yes
Certification	CE, FCC
Built-in display	No
USB powered	Yes
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Width	2.28" (58 mm)
Depth	3.43" (87 mm)
Height	0.945" (24 mm)
Weight	13.2 oz (375 g)
Package width	6.3" (160 mm)
Package depth	1.97" (50 mm)
Package height	8.27" (210 mm)
Package weight	2.82 oz (80 g)
Quick installation guide	Yes
Manual	Yes
Drivers included	Yes
Harmonized System (HS) code	85176200
