2K Pan & Tilt Wi-Fi Camera
Smarter Camera, Safer Home

2K Quality
True 2K 1296p resolution for superior live video clarity

Wi-Fi 6 Connectivity
Wi-Fi 6 delivers stable, reliable connectivity for prompt access to live feeds and alerts

Panorama View Angle Selection
See the camera’s range of view and tap to jump to a specific area

Sound & Motion Detectoin
Receive instant notifications via app when triggered

Auto Motion
Automatic pan/tilt to follow an object as it moves

Tracking Two-Way Audio
Transmit and receive audio with build-in microphone and speaker

Day & Night
See clearly up to 8 meters, even in complete darkness

Cloud Recording
Conveniently record to the cloud and view from anywhere

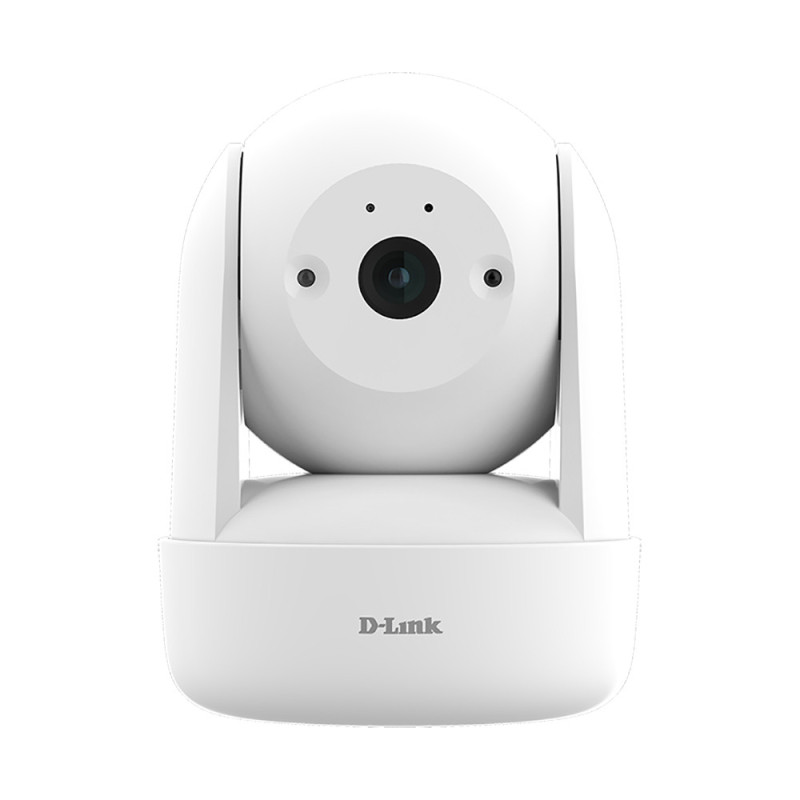

D-Link DCS-6501LH. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wireless. Mounting type: Desk, Product color: White, Form factor: Turret. Lens viewing angle, horizontal: 89°, Lens viewing angle, vertical: 48°, Lens viewing angle, diagonal: 107°. Sensor type: CMOS, Optical sensor size: 1/2.7". Fixed focal length: 0.134" (3.4 mm)

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Infrared (IR) cut-off filter	Yes
Mounting type	Desk
Product color	White
Form factor	Turret
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	89°
Lens viewing angle, vertical	48°
Lens viewing angle, diagonal	107°
Tilt angle range	-90 - 90°
Pan range	-175 - 180°
Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7"
Progressive scan	Yes
Number of lenses	1
Maximum aperture number	2.4
Fixed focal length	0.134" (3.4 mm)
Night vision distance	8 m
LED type	IR
Maximum resolution	2304 x 1296 pixels
Video formats supported	H.264
Video compression formats	H.264
Video recording	Yes
Built-in speaker(s)	Yes
Built-in microphone	Yes
Ethernet LAN	No
Wi-Fi	Yes
Bluetooth	Yes
Networking standards	IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	128 GB
USB port	Yes
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
DC output voltage	5
DC output current	1 A
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 90%
Width	3.38" (86 mm)
Depth	3.38" (86 mm)
Height	4.5" (114.3 mm)
Weight	4.87 oz (138 g)
Number of cameras	1
