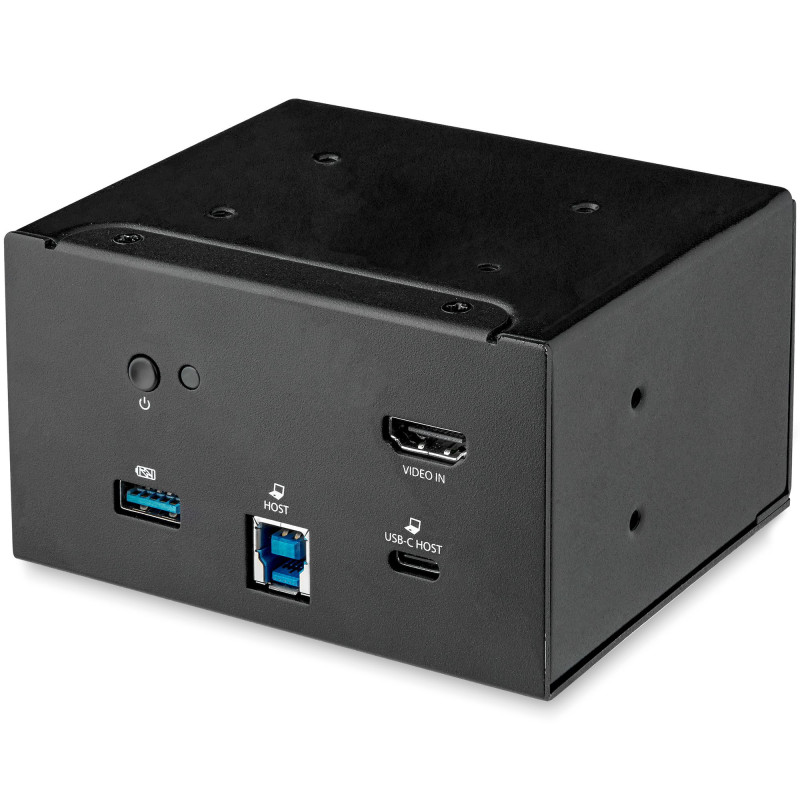

Boardroom Docking Station | 4K HDMI® | USB-C™ and USB-A | USB-C Power Delivery

Add docking and video conferencing capabilities to a boardroom, classroom or huddle space. This laptop docking module for the StarTech.com conference table connectivity box lets you:

• Access your room's display and collaboration peripherals with a single connection
• Charge mobile devices using the USB-A charge port
• Power a supported USB-C laptop with USB Power Delivery

Dock Your Laptop

Modern office environments need to support technology more than ever, to keep laptops, phones and tablets connected. During meetings, you may need to set up video conference calls using applications such as Microsoft Teams, Zoom or Google Hangouts. Unlike other boardroom conferencing solutions that are limited to only one or two collaboration applications, this module lets you use your own laptop, so you are not restricted to a specific platform.

Connect a USB-C or USB-A laptop to the module and access your room's peripherals, webcams, speakers, mics, network and HDMI display. This docking station module lets you easily connect your laptop with each video conferencing device in your boardroom. You can collaborate with others in the room and around the globe.

For users that are unable to dock or for quick access to the display, the front-facing HDMI port lets you connect a laptop directly to the display.

Customizable

Architectural connectivity is becoming the trend when designing a boardroom or huddle space. StarTech.com docking station modules let you:

• Customize according to the specific needs of your small, medium or large size room
• Install in easy-to-access locations
• Easily integrates with existing and new collaboration hardware

You can install this module as a standalone solution using the supplied table-mounting bracket, or as an addition to a StarTech.com single-module (BEZ4MOD) or dual-module (BOX4MODULE) conference room table connectivity box (each sold separately).

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

MOD4DOCKACPD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage


StarTech.com MOD4DOCKACPD. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Headphone connectivity: 3.5 mm. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product color: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100 - 240 V, Input current: 2 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Other operating systems supported: ChromeOS

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	3
Microphone in	Yes
Headphone outputs	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Combo headphone/mic port	No
Headphone connectivity	3.5 mm
Ethernet LAN	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-X	Yes
Full duplex	Yes
Product color	Black
Card reader integrated	No
Data transfer rate	5 Gbit/s
Maximum digital resolution	3840 x 2160 pixels
LED indicators	Power
UASP support	Yes
Housing material	Aluminum, Plastic
Certification	CE, FCC, TAA, REACH
AC input voltage	100 - 240 V
Input current	2 A
Output voltage	20 V
Output current	6 A
Power consumption (typical)	60 W
Power plug type	Type N
Compatible power plug types	EU, UK, US
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Other operating systems supported	ChromeOS
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Width	3.7" (94 mm)
Depth	0.472" (12 mm)
Height	2.4" (61 mm)
Weight	20.7 oz (588 g)
Package width	8.31" (211 mm)
Package depth	9.88" (251 mm)
Package height	0.394" (10 mm)
Package weight	4.63 lbs (2.1 kg)
Mounting brackets included	Yes
Cables included	USB Type-A to USB Type-B, USB Type-C to USB Type-C
AC adapter included	Yes
Quick start guide	Yes
Number of screws	12
Compliance certificates	RoHS
Quantity per master (outer) case	4 pc(s)
Master (outer) case width	10.7" (273 mm)
Master (outer) case length	16.9" (430 mm)
Master (outer) case height	9.69" (246 mm)
Harmonized System (HS) code	84733020
Chipset	DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153
