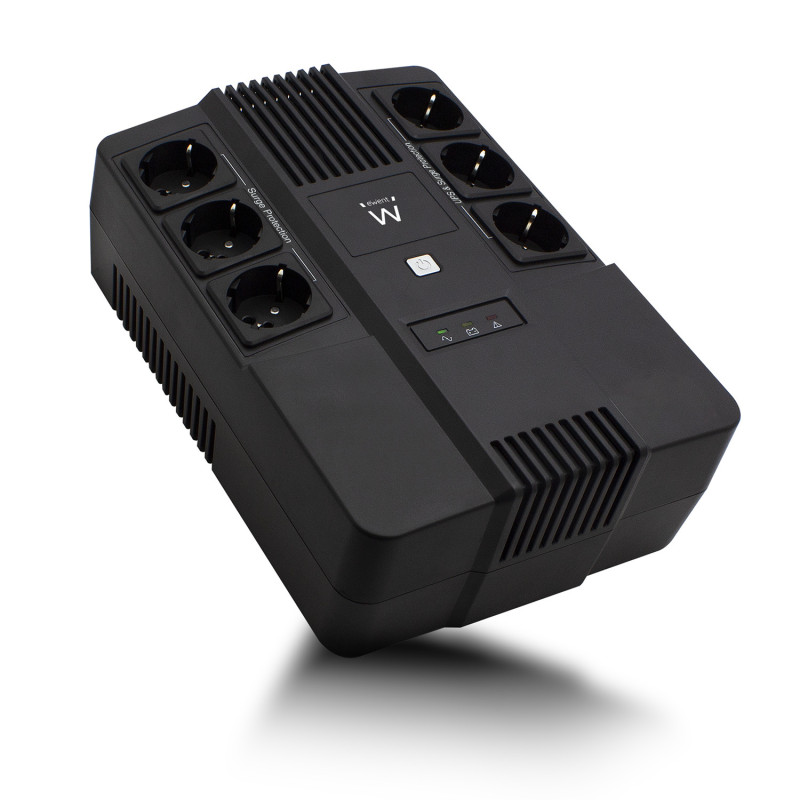

Protect your computer and valuable files against power failures and surges with the EW3945 Line Interactive UPS 600 VA with AVR. The UPS is equipped with 6 output sockets. The UPS notifies you with a sound alarm and LED notification during a power failure. It provides you with approximately 10 extra minutes @ 120W load to save your files and to shut down your computer safely. The EW3945 has surge, short circuit, discharge, overcharge and overload protection. The UPS can be mounted on the wall.

Backup power of approx. 10 minutes @ 120 W load
The EW3945 Line Interactive UPS 600 VA has 6 earthed power sockets to protect your computer and valuable files against power failures and surges. Three output sockets are equipped with a backup battery and surge protection. The other three output sockets have surge protection. The built-in battery of the Line Interactive UPS allows you to save your files within approximately 10 minutes @ 120 W load. The output voltage will remain stable thanks to the AVR function.

Sound and LED notification during power failure
The UPS notifies you with a sound alarm and LED notification during a power failure. The UPS also notifies you when the built-in battery is running out of power. The built-in status LEDs are showing you the status. The EW3945 has surge, short circuit, discharge, overcharge and overload protection.

Easy to connect
It is very easy to connect a computer or another powered device to the EW3945. Just put the power plug of the computer or other device in the power socket of the EW3945. The Line Interactive UPS can be mounted on the wall and has a detachable cable.

Ewent EW3945. UPS topology: Line-Interactive, Output power capacity: 0.6 kVA, Output power: 360 W. AC outlet types: C14 coupler, Type F, AC outlets quantity: 1 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product color: Black. Cables included: Input power cable

UPS topology	Line-Interactive
Output power capacity	0.6 kVA
Output power	360 W
Waveform	Sine
Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Automatic Voltage Regulation (AVR)	Yes
Maximum current	10 A
Surge energy rating	125 J
Transfer time (Line Mode to Battery Mode)	6 ms
Surge protection	Yes
Power protection features	Overcharge, Overdischarge, Overload, Short circuit
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
AC outlet types	C14 coupler, Type F
AC outlets quantity	1 AC outlet(s)
Number of type F outputs	6
Battery capacity	7 Ah
Battery voltage	12 V
Number of batteries supported	1
Form factor	Compact
Product color	Black
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Cables included	Input power cable
Width	9.45" (240 mm)
Depth	14.2" (360 mm)
Height	5.12" (130 mm)
Weight	9.92 lbs (4.5 kg)
Battery weight	4.45 lbs (2.02 kg)
Fuse included	Yes
Package width	12" (306 mm)
Package depth	5.12" (130 mm)
Package height	9.45" (240 mm)
Package weight	11 lbs (4.98 kg)
