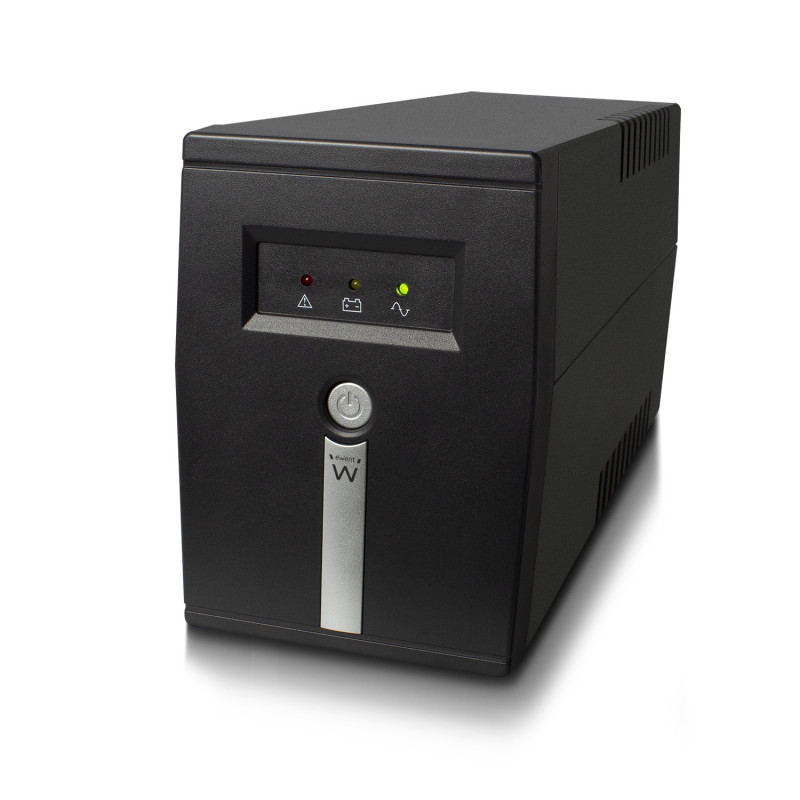

Protect your computer and valuable files against power failures and surges with the EW3946 Line Interactive UPS 600 VA with AVR. The UPS is equipped with 1x IEC C13 output and 1x EU socket type F. The UPS notifies you with a sound alarm and LED notification during a power failure. It provides you with approximately 10 extra minutes @ 120 W load to save your files and to shut down your computer safely. The EW3946 has surge, short circuit, discharge, overcharge and overload protection.

Backup power of approx. 10 minutes @ 120 W load
The EW3946 Line Interactive UPS 600 VA has one IEC C13 output and one EU socket type F female to protect your computer and valuable files against power failures and surges. The built-in battery of the Line Interactive UPS allows you to save your files within approximately 10 minutes @ 120 W load. The output voltage will remain stable thanks to the AVR function.

Sound and LED notification during power failure
The UPS notifies you with a sound alarm and LED notification during a power failure. The UPS also notifies you when the built-in battery is running out of power. The built-in status LEDs are showing you the status. The EW3946 has surge, short circuit, discharge, overcharge and overload protection.

Easy to connect
It is very easy to connect a computer or another powered device to the EW3946. Connect the IEC C13 plug to the UPS, or put a power plug into the EU socket.

Ewent EW3946. UPS topology: Line-Interactive, Output power capacity: 0.6 kVA, Output power: 360 W. AC outlet types: C13 coupler, Type F, AC outlets quantity: 1 AC outlet(s). Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Mini Tower, Product color: Black. Cables included: Input power cable

UPS topology	Line-Interactive
Output power capacity	0.6 kVA
Output power	360 W
Waveform	Sine
Input operation voltage (min)	230 V
Input operation voltage (max)	230 V
Input frequency	50/60 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	230 V
Automatic Voltage Regulation (AVR)	Yes
Maximum current	10 A
Surge energy rating	125 J
Transfer time (Line Mode to Battery Mode)	6 ms
Surge protection	Yes
Power protection features	Overcharge, Overdischarge, Overload, Short circuit
Audible alarm(s)	Yes
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
AC outlet types	C13 coupler, Type F
AC outlets quantity	1 AC outlet(s)
Number of type F outputs	1
Battery capacity	7 Ah
Battery voltage	12 V
Number of batteries supported	1
Form factor	Mini Tower
Product color	Black
LED indicators	Yes
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Cables included	Input power cable
Width	3.98" (101 mm)
Depth	11.7" (298 mm)
Height	5.59" (142 mm)
Weight	9.48 lbs (4.3 kg)
Battery weight	4.45 lbs (2.02 kg)
Fuse included	Yes
Package width	13.8" (350 mm)
Package depth	5.63" (143 mm)
Package height	4.76" (121 mm)
Package weight	10 lbs (4.54 kg)
