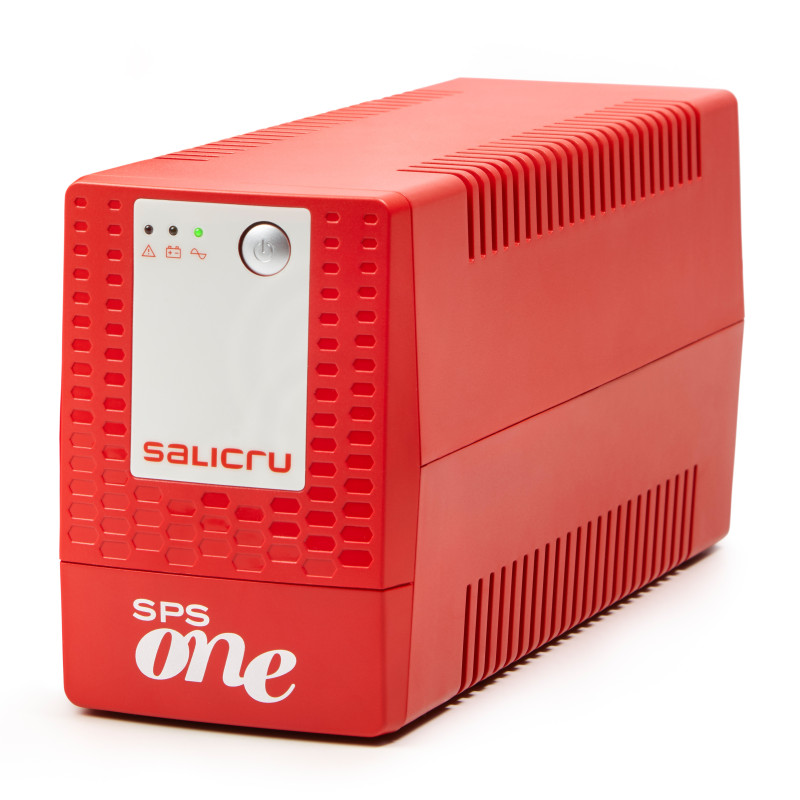

An uninterruptible power supply (UPS) in a mini tower format with Line-interactive topology, Salicru’s SPS ONE series provides battery backup (with pseudo sine wave inverter output) and overload protection. During power failures, SPS ONE devices provide battery backup to enable computer systems to shut down properly and protect against data loss and electronics damage. Operation through automatic voltage regulation (AVR) to correct small voltage fluctuations without having to use the battery, thus extending its life. The AVR function is essential in areas where voltage fluctuations occur frequently. It features a UPS/PC communication interface via USB with HID protocol, which allows parameter setting, UPS control and shutdown or hibernation of the computer through the USB port. Compatible with Windows, Linux and Mac operating systems. UPS management and monitoring software is also available for closing files/applications for Windows, Linux and Mac families. Free and downloadable from www.salicru.com. The SPS ONE series is available in 500, 700, 900, 1100,1500 and 2000 VA power ratings.

Salicru 662AF000015. UPS topology: Line-Interactive, Output power capacity: 0.9 kVA, Output power: 480 W. AC outlet types: C13 coupler, AC outlets quantity: 4 AC outlet(s), USB port type: USB Type-B. Battery technology: Lead-Calcium (Pb-Ca), Typical backup time at full load: 20 min, Battery life (max): 5 year(s). Form factor: Tower, Product color: Red, White. Certification: EN-IEC 62040-12, EN-IEC 62040-12, ISO 9001, ISO 14001

UPS topology	Line-Interactive
Output power capacity	0.9 kVA
Output power	480 W
Waveform	Sine
Input operation voltage (min)	162 V
Input operation voltage (max)	290 V
Input frequency	50/60 Hz
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output frequency	50/60 Hz
Output frequency regulation	1 Hz
Output voltage regulation	10%
Automatic Voltage Regulation (AVR)	Yes
Response time	6 ms
Efficiency (ECO mode)	95%
ECO mode	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Audible alarm modes	Battery replacement, Fault, Low battery alarm, Overload alarm
Auto-restart	Yes
AC outlet types	C13 coupler
AC outlets quantity	4 AC outlet(s)
Number of output IEC jumpers	4
USB port	Yes
USB 2.0 ports quantity	1
USB port type	USB Type-B
Battery technology	Lead-Calcium (Pb-Ca)
Typical backup time at full load	20 min
Battery life (max)	5 year(s)
Battery recharge time (90%)	6 h
Automatic battery test	Yes
Cold start	Yes
Form factor	Tower
Product color	Red, White
LED indicators	Yes
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 196850.4" (0 - 5000 m)
Certification	EN-IEC 62040-12, EN-IEC 62040-12, ISO 9001, ISO 14001
Safety	EN-IEC 62040-1-1; EN-IEC 60950-11
Width	3.98" (101 mm)
Depth	11.8" (300 mm)
Height	5.59" (142 mm)
Weight	10.8 lbs (4.9 kg)
Harmonized System (HS) code	85078000
Compatible operating systems	Windows, Linux, Unix, Mac
