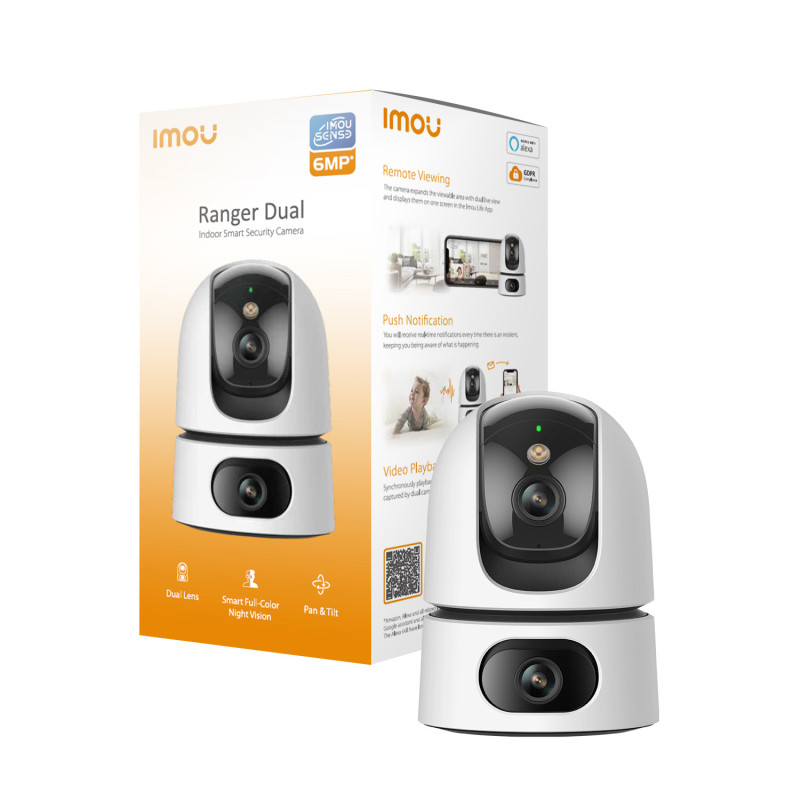

Ranger Dual

3+3MP camera | Smart night vision in color | Wide visual with double lens | Human and pet detection in double channel IMOU SENSE®

Protection of 2 zones simultaneously

In addition to the normal PTZ lens, the Ranger Dual is equipped with a fixed lens on the bottom that allows to monitor two areas simultaneously.

Multiple lens combinations for all needs

3+MP

Ranger Dual offers 3+3MP lens combination options, so you can choose the most suitable and convenient combination for your security needs.

Light the night intelligently

Ranger Dual can adjust different night vision modes according to your needs, whether you want night vision to always remain in color or prefer full color only when there is an event to save energy.

The double adjustable lens offers 360° protection

Ranger's pan-tilt target Dual supports a horizontal rotation of 0°-346° and vertical of -50°-90°, while the fixed lens supports a horizontal rotation of 0°-350° and vertical of -5°-10° to protect the 360° house.

Double channel detection powered by IMOU SENSE®

IMOU SENSE® is an AI algorithm developed independently by the lMOU brand. Each of the two Ranger lenses Dual uses its own algorithm, which does not decrease accuracy due to increased number of lenses, but ensures a 50% increase in overall accuracy and provides detection results within 0.02 seconds.

Accurate detection of people and pets

With support IMOU SENSETM, the recently updated artificial intelligence, is able to effectively improve the accuracy of detection of people and pets and to intelligently follow the goal; when an event occurs, in addition to sending information to the user's phone, the device itself emits an alarm.

Notice abnormal sounds to take care of loved ones

The Ranger Dual detects unusually high decibel sounds, such as crying children or breaking glasses, to allow you to control your home wherever you are.

Customized protection

- Setting the preferred area
- Customizable detection area
- Customizable alarm sound
- Protection planning

Determine unwanted visitors

Ranger Dual keeps an eye on your home: when someone enters, the 110 dB siren activates to discourage unwanted visitors.

Protect your privacy with a simple touch

The Ranger Dual detects unusually high decibel sounds, such as crying children or breaking glasses, to allow you to control your home wherever you are.

Stay connected to your home wherever you are

The speaker and microphone integrated with echo cancellation function allow you to interact with pets and family from anywhere.

Imou Protect - Increase your security

Imou Protect is a subscription service that can enhance your products IMOU with advanced cloud computing technology and update your security experiences.

Imou Ranger DUAL 6MP (3MP+3MP) Internal Wi-Fi Camera with Double lens, 360°PTZ Internal Camera, Human Detection, Intelligent Tracking, Color Night Vision, Private Mode 2.4ghz. Type: IP Security Camera, Supported Positioning: Internal, Connection technology: With cable and no cable. Mounting type: Desk, Product color: White. Horizontal lens viewing angle: 84°, View angle of the lens, vertical: 45°, angle of view of the lens, diagonal: 101°. Sensor type: CMOS, Optical Sensor Size: 25,4 / 2.8 mm (1 / 2.8"). Digital Zoom: 8x, Fixed focal length: 3.6 mm

Type	IP Security Camera
Supported positioning	Internal
Connection technology	With cable and without cable
PTZ control	Yes
Automatic detection	Yes
Day/night mode	Yes
Certification	EC, UKCA
Type of assembly	Desk
Product color	White
Horizontal lens viewing angle	8
View angle of the lens, vertical	45°
View angle of the lens, diagonal	10
Inclination	0 - 90°
Overview	0 - 355°
Sensor type	CMOS
Number of sensors	2
Optical sensor dimensions	25,4 / 2,8 mm (1 / 2.8")
Progressive scanning	Yes
Number of lenses	2
Digital Zoom	8x
Fixed focal length	3.6 mm
Night vision	Yes
Night vision distance	15 m
Maximum resolution	2304 x 1296 Pixel
Total Megapixel	3 MP
Video compression formats	H.264, H.265
Frequency of frame	15
Privacy mask	Yes
Integrated speakers	Yes
Audio system	2-way
Built-in microphone	Yes
Audio Detector	Yes
Ethernet LAN connection	Yes
Wi-Fi	Yes
Bluetooth	No
Type of Ethernet interface	Fast Ethernet
Standard Wi-Fi	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Integrated hard drive	No
Integrated Card Reader	Yes
Types of memory cards	MicroSD (TransFlash)
Expandable memory until	256 GB
Quantity Ethernet LAN ports (RJ-45)	1
Recognition of video movement	Yes
Functions of intelligent video surveillance system (IVS)	Human detection, Pets detection
Reset button	Yes
Remote smartphone support	Yes
Type of supply	d
Energy consumption (maximum)	5,65 W
Volt CC output	5
Ampere CC in exit	1.5 A
Operating temperature range	-10 - 45 °C
Operating humidity range	0 - 95%
Supported mobile operating system	Android, iOS
Width	82,2 mm
Depth	82,2 mm
Height	115,4 mm
Weight	225 g
number of cameras	1
Cables included	USB USB
Mounting kit	Yes
Visas included	Yes
Conformity to sustainability	Yes
