NETGEAR SOHO Ethernet Unmanaged Switches
SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.

Extended Features

- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent opeartion
- Desktop, wall-mountable or rack-mountable (GS324, GS348)

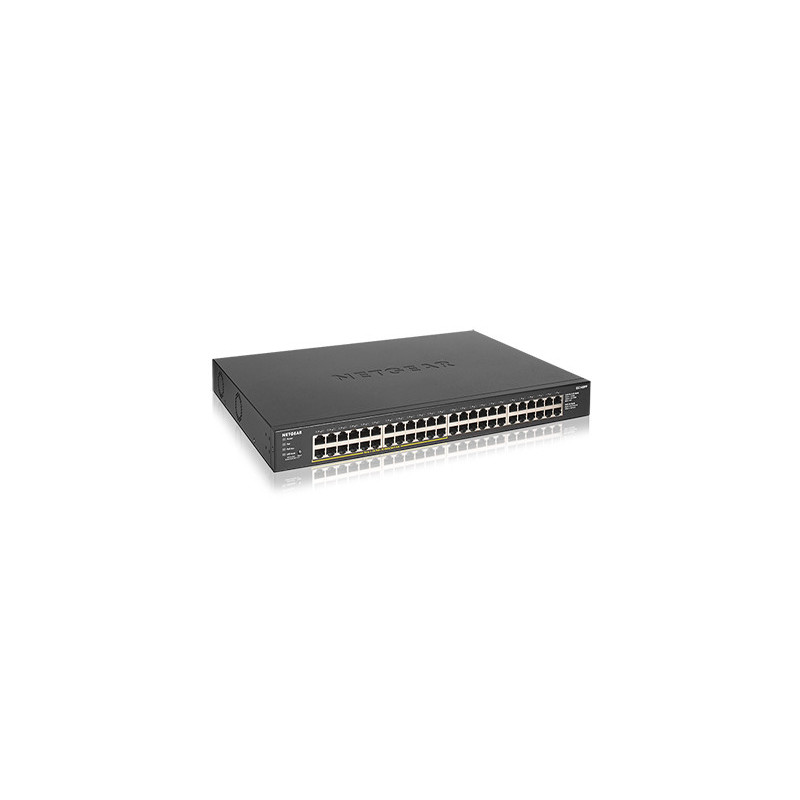

NETGEAR GS348PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 8000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u. Power over Ethernet (PoE). Rack mounting

Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex	Yes
Auto MDI/MDI-X	Yes
Auto-sensing	Yes
Auto-negotiation	Yes
Cable length detection	Yes
MAC address table	8000 entries
Switching capacity	96 Gbit/s
Forwarding rate	1.448 Mpps
Latency (1 Gbps)	4 µs
Jumbo frames support	Yes
Jumbo frames	12288
Packet forwarding rate (1 Gbps)	1448000 pps
Packet buffer memory	1.5 MB
Queue scheduling algorithms	Weighted Round Robin (WRR)
Rack mounting	Yes
Product color	Black
Housing material	Metal
LED indicators	Activity, Link, PoE, Power, Speed
Number of fans	2 fan(s)
Mean time between failures (MTBF)	570972 h
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	410 W
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	24
Power over Ethernet (PoE) power per port	30 W
Total Power over Ethernet (PoE) budget	380 W
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	1402.2 BTU/h
Width	17.3" (440 mm)
Depth	12.2" (310 mm)
Height	1.69" (43 mm)
Weight	10.1 lbs (4.56 kg)
Cables included	AC
User guide	Yes
Rack mount kit	Yes
Certification	CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL
Harmonized System (HS) code	85176990
