Smart Management
Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.

Gigabit Connectivity with SFP ports
Designed with 10 x 10/100/1000BaseT ports and 2 x SFP ports to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.

High Redundancy and Reliability
ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged.

Enhanced IP Surveillance
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.

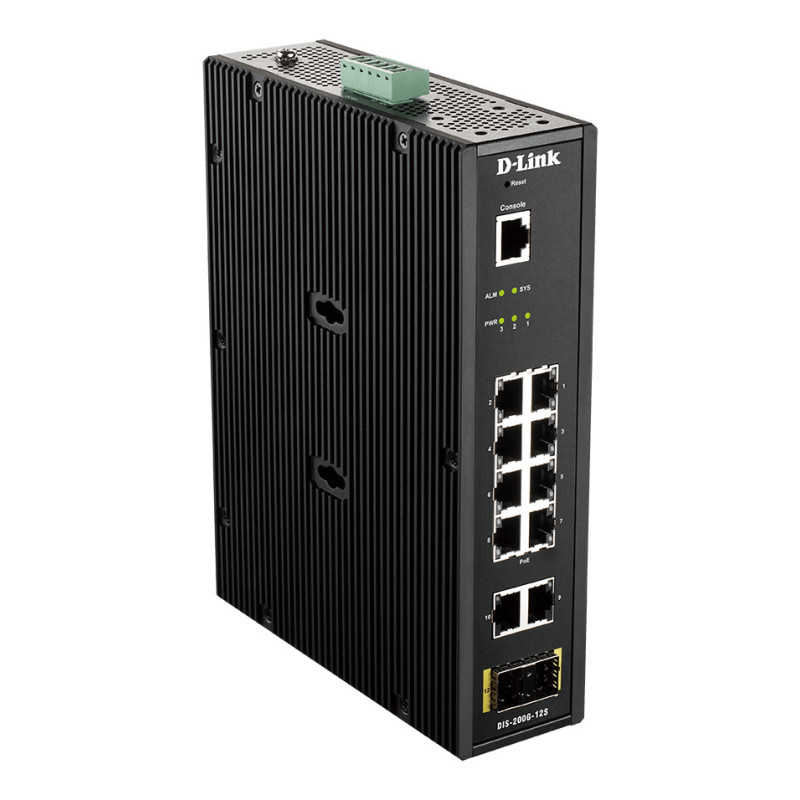

D-Link DIS-200G-12S. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 10, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... DC input voltage: 12 - 48 V. Wall mountable, Rack mounting

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
Basic switching RJ-45 Ethernet ports quantity	10
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	10
SFP module slots quantity	2
Console port	RJ-45
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Auto-negotiation	Yes
Active link detection	Yes
VLAN support	Yes
Virtual LAN features	Voice VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs	4094
Fiber ethernet cabling technology	1000BASE-X
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Forwarding rate	17.85 Mpps
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9216
DHCP features	DHCP client
IGMP snooping	Yes
Security algorithms	802.1x RADIUS, SSL/TLS
Authentication	Port-based authentication
Authentication type	RADIUS
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
Multicast support	Yes
Management protocols	SNMP v1/v2c/v3, SNTP, Telnet
Rack mounting	Yes
Product color	Black
Housing material	Metal
LED indicators	Yes
International Protection (IP) code	IP30
Wall mountable	Yes
DIN rail mounting	Yes
Number of fans	0 fan(s)
Electromagnetic compatibility	CISPR 22, FCC Part 15B Class A
Mean time between failures (MTBF)	276773 h
DC input voltage	12 - 48 V
Power consumption (max)	10.26 W
Power over Ethernet (PoE)	No
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Heat dissipation	35.01 BTU/h
Width	6.74" (171.2 mm)
Depth	2.09" (53 mm)
Height	8.27" (210 mm)
Weight	3.59 lbs (1.63 kg)
Certification	CE, FCC, BSMI EN 61000-4-2 ESD EN 61000-4-3 RS EN 61000-4-4 EFT EN 61000-4-5 EN 61000-4-6 CS EN 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6
Harmonized System (HS) code	85176990
