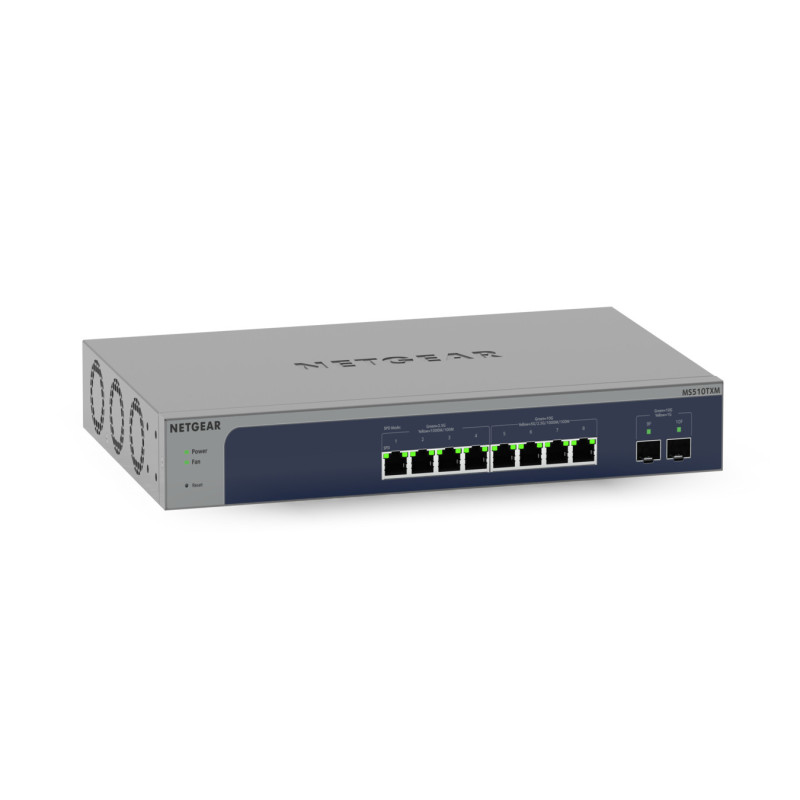

The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-Gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. It is the ideal companion to the NETGEAR WAX610PA WiFi 6 Access Point that features a 2.5G Ethernet port and a power adapter.

MS510TXM provides four auto-adapt multispeed Gigabit RJ-45 ports that support 2.5G, and 1G; another four multi-speed Gigabit RJ-45 ports that support 10G, 5G, 2.5G and 1G, and two dedicated SFP+ fiber uplink port that supports 10G and 1G. Each of the 5 Multi-Gig Ethernet ports automatically detects which speed is needed by the connected device and provides the adequate connection speed.

NETGEAR MS510TXM. Switch type: Managed, Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 32000 entries, Switching capacity: 140 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Rack mounting

Switch type	Managed
Switch layer	L2/L3/L4
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
SFP+ module slots quantity	2
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support	Yes
Copper ethernet cabling technology	1000BASE-T
Port mirroring	Yes
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	100,1000,2500,5000,10000 Mbit/s
VLAN support	Yes
Number of VLANs	256
MAC address table	32000 entries
Switching capacity	140 Gbit/s
Jumbo frames support	Yes
Jumbo frames	10000
DHCP features	DHCP client, DHCP server
Access Control List (ACL)	Yes
Access Control List (ACL) ingress	100
IGMP snooping	Yes
Security algorithms	HTTPS, SSL/TLS
Loop protection	Yes
Multicast support	Yes
Management protocols	SNMP v1/v2c,SNMP v3
Rack mounting	Yes
Product color	Gray, Blue
LED indicators	Activity, Power, Speed
Built-in processor	Yes
Processor frequency	1000 MHz
Internal memory	256 MB
Flash memory	64 MB
Power supply included	Yes
Power over Ethernet (PoE)	No
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Width	13" (330 mm)
Depth	8.11" (206 mm)
Height	1.69" (43 mm)
