Managed Customization
Features user management interfaces, including an industrial-like CLI, and WEB-based management, the DIS-300G-8PSW is easy to manage and provides the security and controls to guard and shape your network needs.

Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000BaseT PoE ports, 2 x 100/1000BaseT ports, and 2 x 100/1000BaseSFP slots to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

High Availability
Rapid ring failover recovery time of < 20ms, with even faster PROFINET speeds available at project request.

PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 77 x 154 x 128 mm.

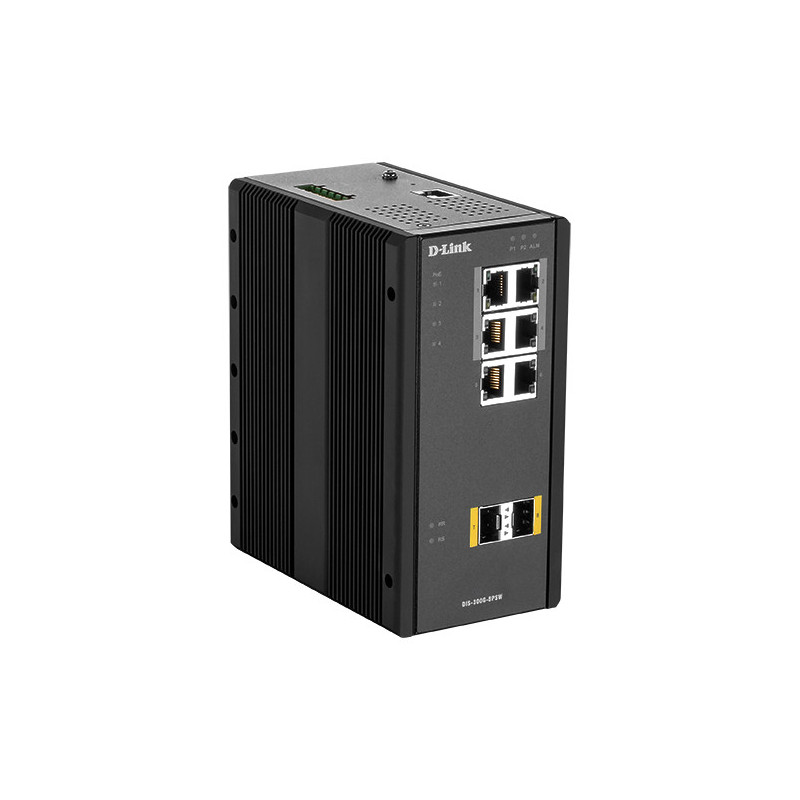

D-Link DIS‑300G‑8PSW. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE.... DC input voltage: 48 - 58 V. Power over Ethernet (PoE). Wall mountable

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
Traffic shaping	Yes
System event log	Yes
MIB support	RFC 1757 RMON 1,2,3,9; RFC 2674 Q MIB RFC‑1213 MIB‑II; RFC‑1493 MIB; RFC 2233 IF MIB
Basic switching RJ-45 Ethernet ports quantity	6
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	2
Fiber optic connector	LC
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support	No
Full duplex	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN, Protocol-based VLAN, MAC address-based VLAN, Port-based VLAN, IP subnet–based VLAN
Number of VLANs	1024
MAC address table	8000 entries
Store-and-forward	Yes
Jumbo frames support	Yes
Jumbo frames	9000
DHCP features	DHCP server, DHCP snooping, DHCP relay, DHCP client
Security algorithms	HTTPS, SNMP, SNMPv3, SSH
Authentication type	IEEE 802.1x, RADIUS
Queue scheduling algorithms	SPQ, Weighted Round Robin (WRR)
Multicast support	Yes
Rack mounting	No
Product color	Black
LED indicators	Alarm, LAN, PoE, Power
International Protection (IP) code	IP30
Wall mountable	Yes
DIN rail mounting	Yes
Electromagnetic compatibility	FCC 15, EN 61000‑6‑2, EN 61000‑6‑4, EN 61000‑4‑2, ‑3, ‑4, ‑5, ‑6
Firmware upgradeable	Yes
DC input voltage	48 - 58 V
Power consumption (typical)	14 W
Power consumption (max)	265 W
Power protection features	Over current, Reverse polarity
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	4
Power over Ethernet (PoE) voltage range	54 - 58 V
Power over Ethernet (PoE) power per port	60 W
Total Power over Ethernet (PoE) budget	120 W
Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Width	2.8" (71 mm)
Depth	6.06" (154 mm)
Height	5.04" (128 mm)
Weight	2.89 lbs (1.31 kg)
Package width	7.68" (195 mm)
Package depth	9.53" (242 mm)
Package height	5.43" (138 mm)
Package weight	3.99 lbs (1.81 kg)
Shipping (inner) case height	10.6" (27 cm)
Shipping (inner) case width	15.9" (40.5 cm)
Shipping (inner) case length	27.4" (69.5 cm)
Shipping (inner) case net weight	39.9 lbs (18.1 kg)
Quantity per shipping (inner) case	10 pc(s)
Pallet gross weight (air)	891.5 lbs (404.4 kg)
Number of cartons per pallet (air)	20 pc(s)
Quantity per pallet (air)	200 pc(s)
Pallet length	47.2" (120 cm)
Pallet width	43.3" (110 cm)
Pallet height (air)	58.5" (148.5 cm)
Pallet gross weight (sea)	1233.3 lbs (559.4 kg)
Number of cartons per pallet (sea)	28 pc(s)
Quantity per pallet (sea)	280 pc(s)
Pallet height (sea)	79.5" (2.02 m)
Shipping (inner) case weight	42.8 lbs (19.4 kg)
Certification	IEC60068‑2‑6, IEC60068‑2‑27, IEC60068‑2‑32, UL 60950‑1, CE, FCC, RoHS, WEEE
Harmonized System (HS) code	85176990
