POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

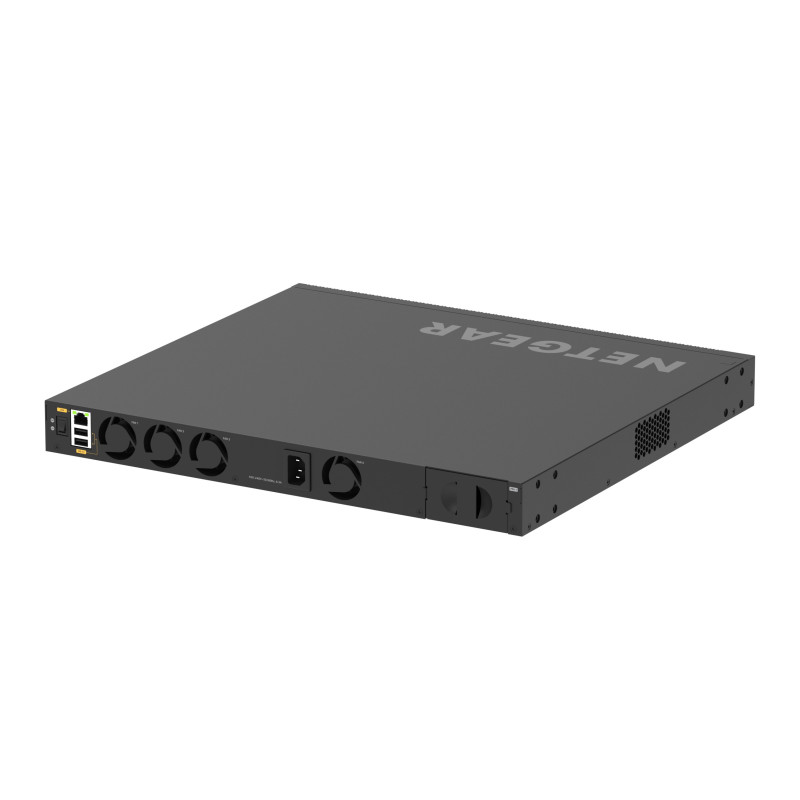

NETGEAR M4350-24F4V. Switch type: Managed, Switch layer: L3. USB 2.0 ports quantity: 2, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 680 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Power connector: AC-in jack. Rack mounting, Form factor: 1U

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
ARP inspection	Yes
Basic switching RJ-45 Ethernet ports quantity	0
Basic switching RJ-45 Ethernet ports type	No
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	24
Console port	RJ-45
SFP28 ports quantity	4
USB 2.0 ports quantity	2
Power connector	AC-in jack
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u
10G support	Yes
Full duplex	Yes
Policy-based routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
6to4 tunnel	Yes
IPv4 routes	512
IPv6 routes	256
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs	4093
MAC address table	16000 entries
Switching capacity	680 Gbit/s
Throughput	505.92 Mpps
Store-and-forward	Yes
Latency (1 Gbps)	1.06 µs
Latency (10 Gbps)	0.63 µs
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	12000
Packet buffer memory	32 MB
DHCP features	DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL)	Yes
Access Control List (ACL) egress	1023
Access Control List (ACL) ingress	511
IGMP snooping	Yes
IGMP proxy	Yes
MAC address filtering	Yes
Static port security	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
Authentication	Guest VLAN, MAC-based authentication
Root protection	Yes
Password protection	Yes
DoS attack prevention	Yes
Authentication type	RADIUS, TACACS+
Queue scheduling algorithms	Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
Management protocols	SNMP V1, V2, V3
GARP VLAN Registration Protocol (GVRP)	Yes
Routing protocols	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product color	Black
LED indicators	Yes
Airflow direction	Front-to-back airflow
Built-in processor	Yes
Processor model	ARM Cortex-A57
Processor frequency	1800 MHz
Memory type	DDR4-SDRAM
Internal memory	2048 MB
Flash memory	512 MB
Noise level	61.8 dB
sFlow	Yes
Mean time between failures (MTBF)	778741 h
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	6.3 A
Power consumption (typical)	119.3 W
Power over Ethernet (PoE)	No
Power supply	240 W
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Non-operating altitude	0 - 118110.2" (0 - 3000 m)
Heat dissipation	374.6 BTU/h
Width	17.3" (440 mm)
Depth	15.7" (400 mm)
Height	1.7" (43.2 mm)
Weight	13.8 lbs (6.25 kg)
Cables included	AC, USB Type-C
User guide	Yes
Rack mount kit	Yes
Included power plug types	EU, NA, UK
Compliance certificates	BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Sustainability compliance	Yes
