Network dot matrix printer
Fast nine-pin dot matrix printer offering outstanding reliability and extremely low TCO, as well as network capability.

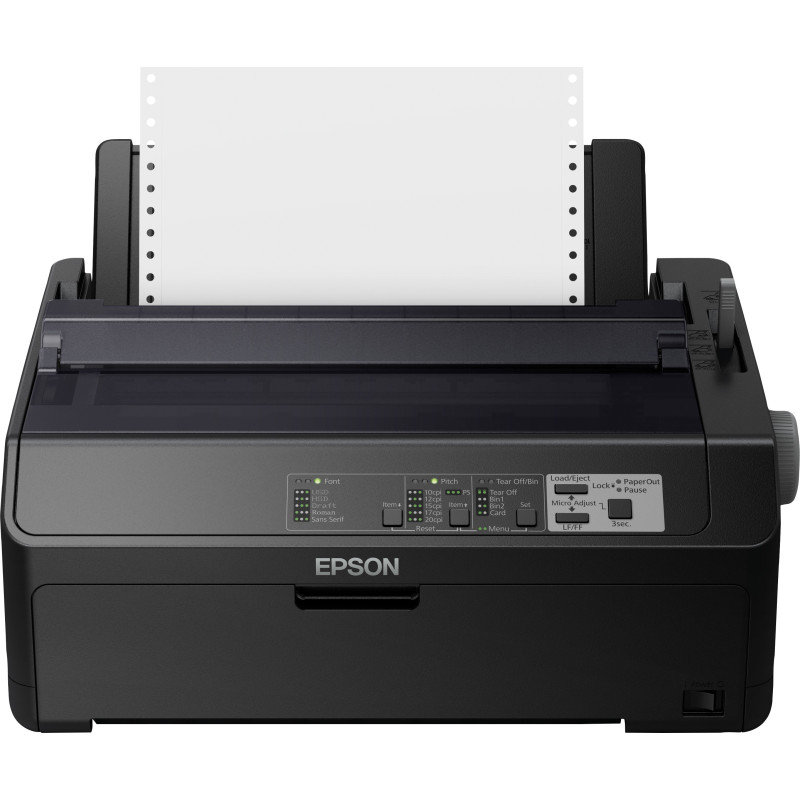

FX-890IIN
The FX-890II is a high-volume, low TCO 80-column dot matrix printer designed for fast, reliable network printing. A contemporary new design and smaller footprint make upgrading easy and add a range of new features for unprecedented flexibility.

Market-leading print speeds¹
The FX-890IIN offers an improved USD (ultra speed draft) speed of 735 characters per second at 12 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.

Outstanding reliability
Epson's dot matrix technology is already mature and very reliable, and these new printers improve the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.

Smaller footprint
Epson's new range of dot matrix printers has a refreshed design with a smaller footprint - depth has been reduced to just 320mm - making it easy to place into a business environment.

Network capability
This is a network model which supports both serial and Ethernet connections for enhanced connectivity.

Epson FX-890IIN. Maximum print speed: 612 cps, Maximum resolution: 240 x 144 DPI, Maximum print speed (draft): 463 cps. Paper tray media types: Envelopes, Continuous paper thickness range: 0.0181 - 0.0181" (0.46 - 0.46 mm), Label thickness range: 0.0181 - 0.0181" (0.46 - 0.46 mm). Product color: Black, Buffer size: 128 KB, Sound pressure level (printing): 55 dB. Standard interfaces: Ethernet, Parallel, USB. Print head: 9-pin, Print direction: Bidirectional, Print head life: 400 million characters

Maximum print speed	612 cps
Maximum resolution	240 x 144 DPI
Maximum printing width (columns)	80
Maximum print speed (draft)	463 cps
Character pitch	10 cpi
Maximum number of copies	6 copies
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Bitmap fonts	Draft, OCR-B, Roman, Sans Serif
Character sets	Italic, PC437, PC850, PC858, Roman 8
Number of characters	42
Paper tray media types	Envelopes
Continuous paper thickness range	0.0181 - 0.0181" (0.46 - 0.46 mm)
Label thickness range	0.0181 - 0.0181" (0.46 - 0.46 mm)
Multi-part paper thickness range	0.00472 - 0.0181" (0.12 - 0.46 mm)
Single sheet thickness range	0.00236 - 0.00551" (0.0600 - 0.14 mm)
Product color	Black
Buffer size	128 KB
Sound pressure level (printing)	55 dB
Country of origin	Vietnam
Standard interfaces	Ethernet, Parallel, USB
Print head	9-pin
Print direction	Bidirectional
Print head life	400 million characters
Print yield	7 characters
Mean time between failures (MTBF)	25000 h
Power consumption (typical)	55 W
Power consumption (standby)	10 W
AC input voltage	198-264 V
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	30 - 60%
Width	16.3" (414 mm)
Depth	14.8" (375 mm)
Height	6.97" (177 mm)
Weight	15.9 lbs (7.2 kg)
Quantity per pack	1 pc(s)
Package width	17.3" (440 mm)
Package depth	21.3" (540 mm)
Package height	11" (280 mm)
Package weight	19.8 lbs (9 kg)
Connectivity technology	Wired
Print technology	Dot matrix
Sustainability certificates	ENERGY STAR
Quantity per pallet	14 pc(s)
Pallet weight	0 oz (0 g)
Pallet length	47.2" (120 cm)
Pallet width	31.5" (80 cm)
Pallet height	121.7" (3.09 m)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Quantity per pallet (UK)	28 pc(s)
Pallet weight (UK)	0 oz (0 g)
Pallet length (UK)	47.2" (120 cm)
Pallet width (UK)	39.4" (100 cm)
Pallet height (UK)	121.7" (3.09 m)
Harmonized System (HS) code	84433210
Box contents	AC cable, Driver and utilities (CD), Ribbon, User guide
Needles	18 (2 x 9)
