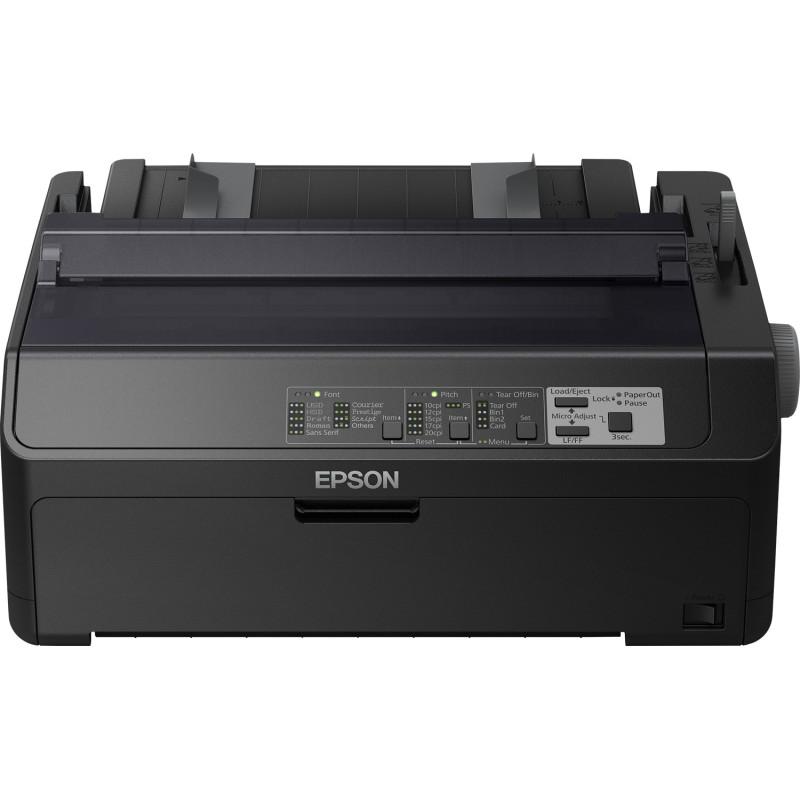

The LQ-590II is a high-volume dot matrix printer designed for fast and reliable printing. Upgrade your existing dot matrix printers to our latest model, which is now Energy Star compliant, and delivers an incredibly low TCO.

Fast print speed

The LQ-590II offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.

Increased reliability

Epson's dot matrix technology is already mature and very reliable. Building on this, the new printer improves the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.

Same consumables

This printer uses the same ribbons as existing models, so you can upgrade your hardware and continue to use your current ribbon supplies.

Epson LQ-590II. Maximum print speed: 550 cps, Character pitch: 10 cpi, Maximum number of copies: 6 copies. Paper tray media types: Envelopes, Labels, Roll, Continuous paper thickness range: 0.00256 - 0.0193" (0.0650 - 0.49 mm), Label thickness range: 0.00630 - 0.00748" (0.16 - 0.19 mm). Product color: Black, Buffer size: 128 KB, Sound pressure level (printing): 55 dB. Standard interfaces: Parallel, USB 2.0. Print head: 24-pin, Print head life: 400 million characters, Print yield: 5000000 characters

Color	No
Maximum print speed	550 cps
Maximum printing width (columns)	80
Character pitch	10 cpi
Maximum number of copies	6 copies
Built-in barcodes	Code 128 (A/B/C), Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E
Character sets	PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO 8859-15, Roman 8, Italic
Paper tray media types	Envelopes, Labels, Roll
Continuous paper thickness range	0.00256 - 0.0193" (0.0650 - 0.49 mm)
Label thickness range	0.00630 - 0.00748" (0.16 - 0.19 mm)
Multi-part paper thickness range	0.00472 - 0.0181" (0.12 - 0.46 mm)
Single sheet thickness range	0.00256 - 0.00551" (0.0650 - 0.14 mm)
Product color	Black
Buffer size	128 KB
Sound pressure level (printing)	55 dB
Page description languages	Epson ESC/P2
Country of origin	Indonesia
Standard interfaces	Parallel, USB 2.0
Print head	24-pin
Print head life	400 million characters
Print yield	5000000 characters
Mean time between failures (MTBF)	25000 h
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Windows operating systems supported	Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP
Server operating systems supported	Windows Server 2012 R2
Width	17.2" (437 mm)
Depth	14.8" (375 mm)
Height	6.97" (177 mm)
Weight	15.9 lbs (7.2 kg)
Quantity per pack	1 pc(s)
Package width	17.6" (446 mm)
Package depth	21" (534 mm)
Package height	11.1" (281 mm)
Package weight	19.6 lbs (8.91 kg)
Connectivity technology	Wired
Print technology	Dot matrix
Compatible operating systems	Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2012 R2, Windows Vista, Windows Vista, 64-Bit-Version, Windows XP
Sustainability certificates	ENERGY STAR
Quantity per pallet	14 pc(s)
Pallet weight	0 oz (0 g)
Pallet length	47.2" (120 cm)
Pallet width	31.5" (80 cm)
Pallet height	292.5" (7.43 m)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	4 pc(s)
Quantity per pallet (UK)	28 pc(s)
Pallet weight (UK)	0 oz (0 g)
Pallet length (UK)	47.2" (120 cm)
Pallet width (UK)	39.4" (100 cm)
Pallet height (UK)	292.5" (7.43 m)
Harmonized System (HS) code	84433210
Needles	24
