44-inch technical printer
This fully integrated, technical printing solution offers high-productivity, smart features, document security and easy operation.

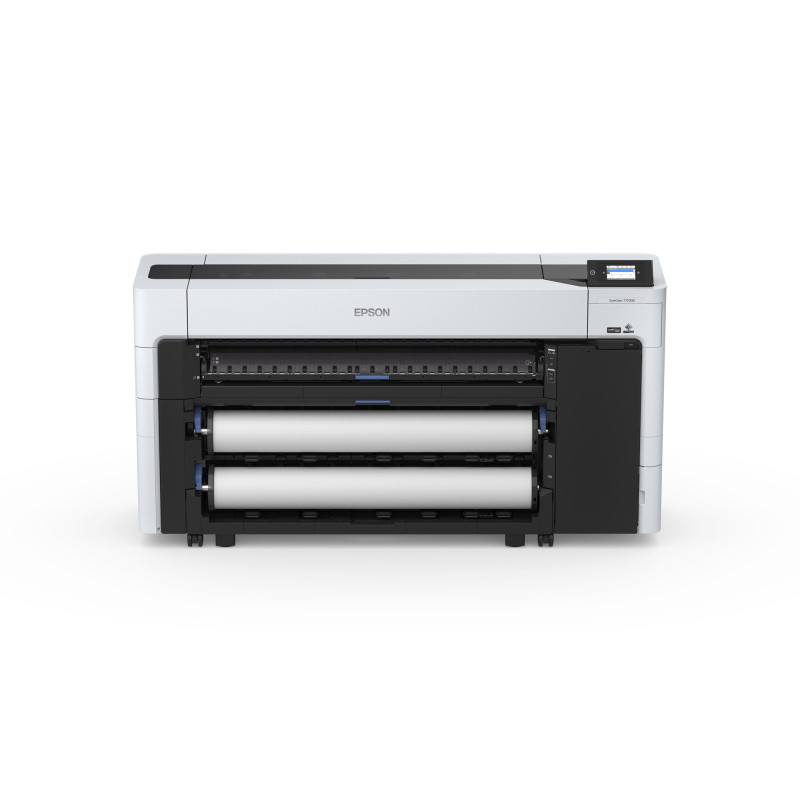

The SureColor SC-T7700D is a technical printer that's been designed for various applications, including: precise line definition, colour accuracy, and security for AEC/CAD/GIS plans and drawings; bright colour and high speed production for POS posters in retail; and precision, colour replication, and security for public sector printing.

Complete document solution
The SC-T7700D includes enhanced IT and security features. This is particularly useful for designers, architects and construction companies who print detailed plans and drawings, while protecting confidential documents. Collaboration is further improved, and workloads managed more efficiently, through central management tracking applications: Epson Cloud Solutions PORT and Epson Device Admin for IT managers.

Fast and feature-rich
High productive output speeds are achieved with the PrecisionCore MicroTFP printhead, Variable Sized Droplet Technology and Nozzle Verification Technology.

Compact footprint - versatile design
The SureColor SC-T7700D design is both contempary and compact. It fits into most working environments because of its flat and unobtrusive design, which is space saving and practical.

Highly detailed prints, every time
Whether printing detailed architectural, engineering and construction (AEC) CAD prints, or POS posters for retail, the SureColorSC-T7700D's output is both precise and vibrant. The printer features an Epson PrecisionCore MicroTFP printhead and 6-colour UltraChrome XD3 all pigment inks, which include a new red ink to broaden the overall colour gamut.

Business solutions
The SureColor SC-T7700D is supported by industry-leading software providers for production enhancement and managed print systems.

Epson SureColor SC-T7700D. Print technology: Inkjet, Maximum resolution: 1200 x 2400 DPI, Page description languages: ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3. Maximum print size: A2 (420 x 594 mm), Paper tray media types: Roll, ISO A-series sizes (A0...A9): A0, A2, A3, A4, A5. Ethernet LAN data rates: 10,100,1000 Mbit/s, Mobile printing technologies: Apple AirPrint. Product color: Black, White, Display: LCD, Display diagonal: 4.3". Power consumption (standby): 0.3 W, Power consumption (typical): 70 W, AC input voltage: 100-240 V

Print technology	Inkjet
Color	Yes
Maximum resolution	1200 x 2400 DPI
Number of print cartridges	6
Page description languages	ESC/P-R, HP-GL/2, PDF 1.7, PostScript 3
Printing colors	Black, Cyan, Magenta, Matte black, Photo black, Red, Yellow
Print speed (normal quality, A1)	120 pph
Copying	No
Scanning	No
Maximum print size	A2 (420 x 594 mm)
Paper tray media types	Roll
ISO A-series sizes (A0...A9)	A0, A2, A3, A4, A5
ISO B-series sizes (B0...B9)	B0, B1
Media thickness	SingleSheet0.1
Maximum roll width	44" (111.8 cm)
Auto take-up reel	Yes
Borderless printing width	10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll, 44" (111.8cm) Roll
Ethernet LAN	Yes
USB port	Yes
Wi-Fi	Yes
USB 2.0 ports quantity	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Direct printing	Yes
Mobile printing technologies	Apple AirPrint
Product color	Black, White
Built-in display	Yes
Display	LCD
Color display	Yes
Display diagonal	4.3"
Control type	Touch
Internal memory	4096 MB
Sound power level (standby)	6.6 dB
Sound pressure level (printing)	6.6 dB
Country of origin	Indonesia
Power consumption (standby)	0.3 W
Power consumption (typical)	70 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Width	72.8" (1848 mm)
Depth	19.6" (499 mm)
Height	38.4" (975 mm)
Weight	341.7 lbs (155 kg)
Package width	29.5" (750 mm)
Package depth	78.7" (2000 mm)
Package height	47.8" (1215 mm)
Package weight	434.3 lbs (197 kg)
Cartridge(s) included	Yes
Manual	Yes
Line accuracy	+/- 0.26
Touchscreen	Yes
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84433210
Print head nozzles	1.600 nozzles per colour
Color management	ICC Profile
Minimum line width	0.000787" (0.0200 mm)
Print quality (black, draft quality)	600 DPI
Ink drop	3.5
