Network dot matrix printer
Fast, networked 24-pin, 136-column dot matrix printer that offers outstanding reliability and an extremely low TCO.

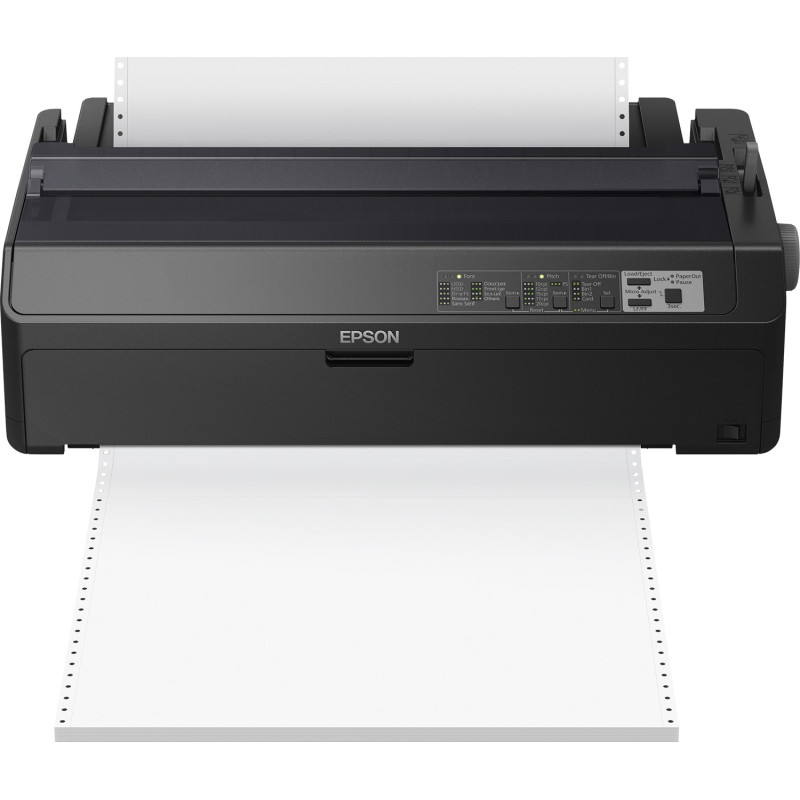

The LQ-2090II is a high-volume dot matrix printer designed for fast and reliable printing. Upgrade your existing dot matrix printers to our latest model, which is now Energy Star compliant, and delivers built-in network capability with an incredibly low TCO.

Fast print speed
The LQ-2090II offers an improved USD (ultra speed draft) speed of 550 characters per second at 10 characters per inch, making a real difference to high-volume print runs such as stock reports and large batches of invoices or freight documents.

Increased reliability
Epson's dot matrix technology is already mature and very reliable. Building on this, the new printer improves the mean time between failure by 25% to 25,000 power-on hours, ideal for challenging conditions or where regular maintenance is not practical.

Same consumables
This printer uses the same ribbons as existing models, so you can upgrade your hardware and continue to use your current ribbon supplies.

Epson LQ-2090II. Maximum print speed: 550 cps, Character pitch: 10 cpi, Maximum number of copies: 6 copies. Paper tray media types: Envelopes, Continuous paper thickness range: 0.00472 - 0.0181" (0.12 - 0.46 mm), Label thickness range: 0.00630 - 0.00748" (0.16 - 0.19 mm). Product color: Black, Buffer size: 128 KB, Sound pressure level (printing): 55 dB. Standard interfaces: Parallel, USB 2.0. Print head: 24-pin, Print head life: 400 million characters, Mean time between failures (MTBF): 25000 h

Color	No
Maximum print speed	550 cps
Maximum printing width (columns)	136
Character pitch	10 cpi
Maximum number of copies	6 copies
Built-in barcodes	Code 128 (A/B/C), Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E
Paper tray media types	Envelopes
Continuous paper thickness range	0.00472 - 0.0181" (0.12 - 0.46 mm)
Label thickness range	0.00630 - 0.00748" (0.16 - 0.19 mm)
Multi-part paper thickness range	0.00472 - 0.0181" (0.12 - 0.46 mm)
Single sheet thickness range	0.00256 - 0.00551" (0.0650 - 0.14 mm)
Product color	Black
Buffer size	128 KB
Sound pressure level (printing)	55 dB
Country of origin	Indonesia
Standard interfaces	Parallel, USB 2.0
Print head	24-pin
Print head life	400 million characters
Mean time between failures (MTBF)	25000 h
Power consumption (typical)	49 W
Power consumption (standby)	49 W
Power consumption (economy mode)	49 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Server operating systems supported	Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016
Mac compatibility	No
Width	24.1" (612 mm)
Depth	14.8" (375 mm)
Height	6.97" (177 mm)
Weight	20.7 lbs (9.4 kg)
Quantity per pack	1 pc(s)
Package width	17.8" (451 mm)
Package depth	28.9" (735 mm)
Package height	11.6" (295 mm)
Package weight	26.9 lbs (12.2 kg)
Print technology	Dot matrix
Compatible operating systems	Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows Vista, 64-Bit-Version, Windows XP, Windows XP Professional x64 Edition SP2 or later
Sustainability certificates	ENERGY STAR
Quantity per pallet	14 pc(s)
Pallet weight	0 oz (0 g)
Pallet length	47.2" (120 cm)
Pallet width	31.5" (80 cm)
Pallet height	180.7" (4.59 m)
Quantity per pallet layer	2 pc(s)
Quantity per pallet layer (UK)	3 pc(s)
Quantity per pallet (UK)	21 pc(s)
Pallet weight (UK)	0 oz (0 g)
Pallet length (UK)	47.2" (120 cm)
Pallet width (UK)	39.4" (100 cm)
Pallet height (UK)	180.7" (4.59 m)
Harmonized System (HS) code	84433210
Needles	24
