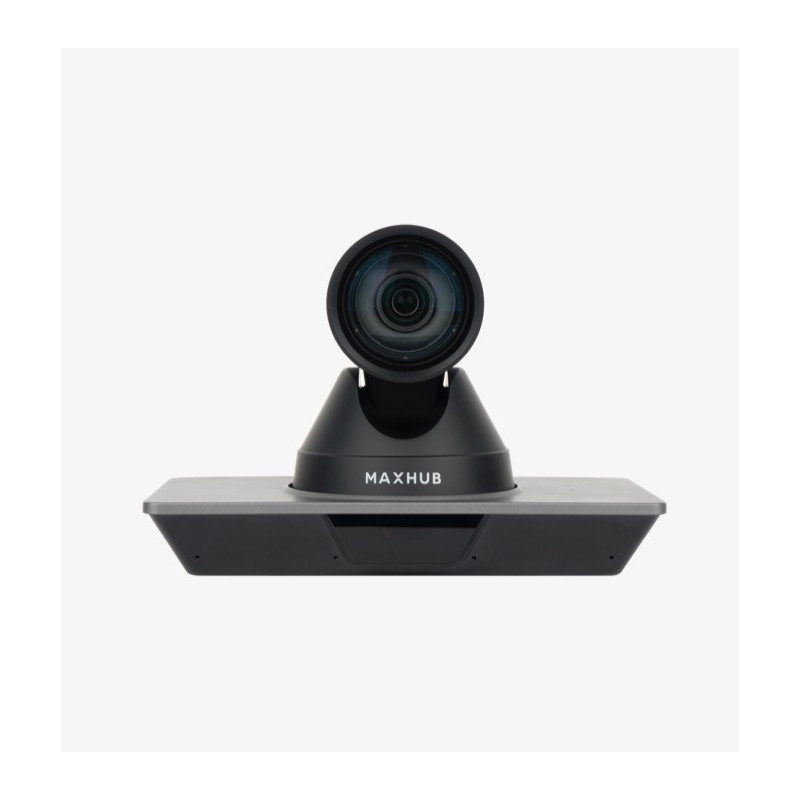

MAXHUBP25. MEGAPIXEL: 8 MP, type of sensor: CMOS. Type HD: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, supported video mode: 720p, 1080i, 1080p, 2160p, maximum frequency of frames: 60 fps. Visual field angle: 82.8 °, optical zoom: 12x, digital zoom: 16x. Product color: Black

Megapixel	8 MP
Camera type	Single camera
Sensor type	CMOS
Optical sensor dimensions	25.4 / 2.5 mm (1 / 2.5 ")
Zoom camera	Yup
Optical zoom	12x
Digital zoom	16x
Focal length	4.4 - 52.8 mm
Visual field angle	82,8 °
Horizontal viewing field	# 71
Vertical viewing field	42,7 °
Lighting min.	0.5 LX
Opening range (F-F)	1.8 - 2.6
Wide Dynamic Range (WDR)	Yup
Number of camera presets	255
Type of gain control	Car / manual
PTZ control	Yup
PTZ protocols	UVC, Onvif, Pelco-P / D, Visca
3D NR (3D noise reduction)	Yup
Maximum video resolution	3840 x 2160 pixels
Maximum frequency of frames	60 fps
HD Type	4K Ultra HD
Supported video mode	720p, 1080i, 1080p, 2160p
Supported video formats	H.264, H.265, M-JPEG
Supported graphic resolutions	320 x 240, 480 x 320, 640 x 360, 640 x 480 (VGA), 720 x 480, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Product color	Black
Inclination	-30 - 30th
Panorama	-170 - 170 °
Inclination speed (min)	0.5 ° / s
Inclination speed (max)	15 ° / s
Pan Speed (min)	1,6 ° / s
Pan Speed (max)	76 ° / s
HDMI ports quantities	1
HDMI version	1.4
USB 2.0 port quantities	1
BNC output doors	1
RS-232 port	2
RS-232 entrance doors	1
RS-232 output ports	1
RS-485 doors	1
LAN ethernet ports quantities (RJ-45)	1
Visca output doors	2
Visca input doors	1
Line entry	Yup
Power type	ad
DC input voltage	12 V
Entry current	1 to
Energy consumption (max)	12 W
Operating temperature range	-10 - 40 ° C
Temperature range	-40 - 60 ° C
Portable remote control	Yup
Cables included	USB
USB cable length	2 m
Screws included	Yup
AC / DC adapter	Yup
Assembly brackets included	Yup
Supported Windows operating system	Yup
Mac operating system compatibility	Yup
Supported mobile operating system	Android, iOS
Supported Linux operating system	Yup
Remote control function	Yup
Remote control type	Ir
Plug & Play	Yup
Network Standard	IEEE 802.3, IEEE 802.3AB, IEEE 802.3U
LAN Ethernet Transfer Speed	10,100,1000 Mbit / s
Streaming	Yup
Bit Rate range	96 - 128 Kbit / s
Supported protocols	TCP / IP, HTTP, RTSP, RTMPP / RTMPS, ONVIF, DHCP, SRT, Multicast
Width	238 mm
Depth	167 mm
Height	149 mm
Weight	1,35 kg
