RIGHT-SIZED PERFORMANCE
A genuine prize, affordable yet substantial compute and memory tailored to match most essential SME server tasks, such as file, print, web, office applications or even industry-specific applications.

VALUE-ORIENTED EXPANDABILITY
Upgrade from a PC to a server design which has 4x 3.5-inch, large capacity drives, plus professional data backup, and seamless, cost-effective dual-Gigabit networking. 4x PCIe (1xGen4) slots enable upgrades such as a NVIDIA card for enhanced graphics capabilities.

AFFORDABLE SERVER CLASS RELIABILITY
Server class design features offer robust investment protection. ECC memory offers safety for your valuable enterprise data even as the data is being processed, while Cool-safe® allows for relatively silent and expanded range of operation.

ENHANCED EASE OF USE
The server design features a screw-less chassis with easy, fast and comfortable access to the interior of the server, PCIe slots and cold-plug drive designs with cable less access to the hard disks.

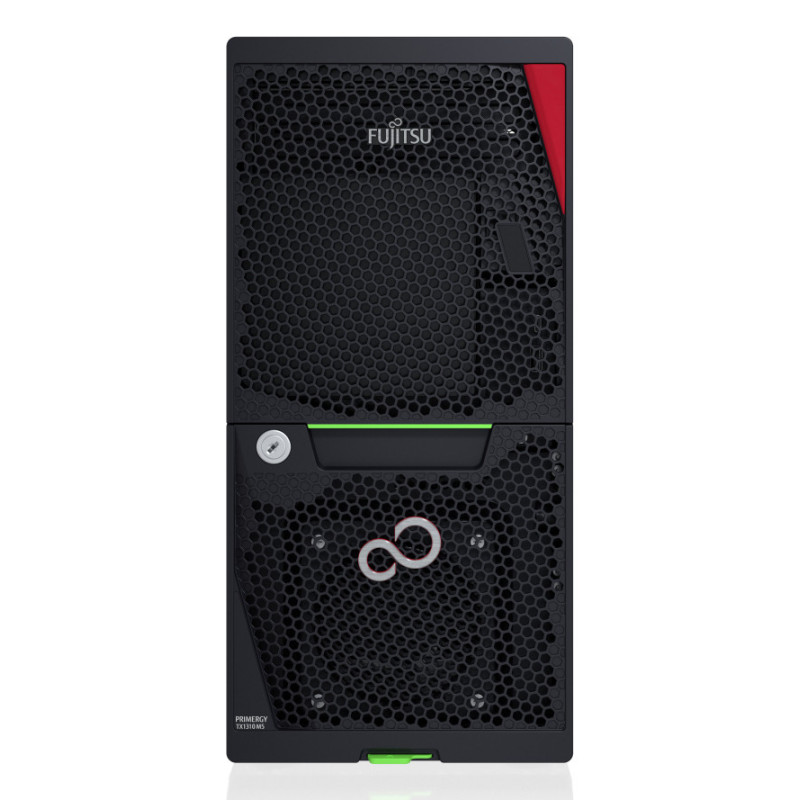

Fujitsu PRIMERGY TX1310 M5. Processor family: Intel Xeon E, Processor frequency: 3.1 GHz, Processor model: E-2324G. Internal memory: 16 GB, Internal memory type: DDR4-SDRAM, Memory layout (slots x size): 1 x 16 GB. Total storage capacity: 960 GB. Chassis type: Tower

Processor family	Intel Xeon E
Processor manufacturer	Intel
Processor model	E-2324G
Processor frequency	3.1 GHz
Processor boost frequency	4.6 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel C256
Number of processors installed	1
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
Memory slots	4x DIMM
ECC	Yes
Memory clock speed	3200 MHz
Memory layout (slots x size)	1 x 16 GB
Total storage capacity	960 GB
RAID support	Yes
Optical drive type	No
Number of SSDs installed	2
SSD capacity	480 GB
SSD interface	SATA III
RAID levels	0, 1, 10
On-board graphics card	Yes
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel UHD Graphics P750
LAN controller	Intel I210
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
DisplayPorts quantity	1
Total number of SATA connectors	7
PCI Express x4 (Gen 3.x) slots	2
PCI Express x16 (Gen 4.x) slots	1
Chassis type	Tower
Product color	Black
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Operating system installed	No
Compatible operating systems	Windows Server 2022 Datacenter Windows Server 2022 Standard Windows Server 2022 Essentials Windows Server 2019 Datacenter Windows Server 2019 Standard Windows Server 2019 Essentials SUSE® Linux Enterprise Server 15 Red Hat® Enterprise Linux 8
Redundant power supply (RPS) support	No
Operating temperature (T-T)	5 - 45 °C
Operating relative humidity (H-H)	10 - 85%
Width	7.09" (180 mm)
Depth	12.3" (313 mm)
Height	14.9" (379 mm)
