The MSI ARSENAL GAMING (MAG) series is engineered to give gamers the edge they need to dominate on the virtual battlefield. Inspired by the rugged durability and unwavering reliability of military-grade equipment, the MAG series is built to provide an unwavering defense in every gaming scenario.

However, MAG isn't just about performance; it's a design language that conveys ruggedness and toughness, embodying the very essence of the MAG style. For gamers who are determined to dominate their digital battlegrounds, the MAG series is here to stand with you, establishing the ultimate defense.

Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The appearance design of the case adopts the MAG series brand symbol lines.

To meet the desire to show the ARGB PC build, the MAG PANO 100 Series comes with a 270-degree panoramic display, get more enhancement of aesthetically pleasing and cleanliness.

Chamfering Technique
Each piece of 4 mm tempered glass is cut at an angle to minimize every edge gap to make case appearance look more beautiful.

HARDWARE COMPATIBILITY
The gaming cases offers extensive support for the installation of your hardware components.

At the side, supports the flexibility of mounting radiator in a push-pull configuration or the thicker radiator and fans.

EASY TO INSTALL
The gaming case has many features that make the installation process all the easier.

Removable panel design
The front, side and top panels are tool-free to remove, when installing side fans and radiators, there are no obstacles to hinder your progress.

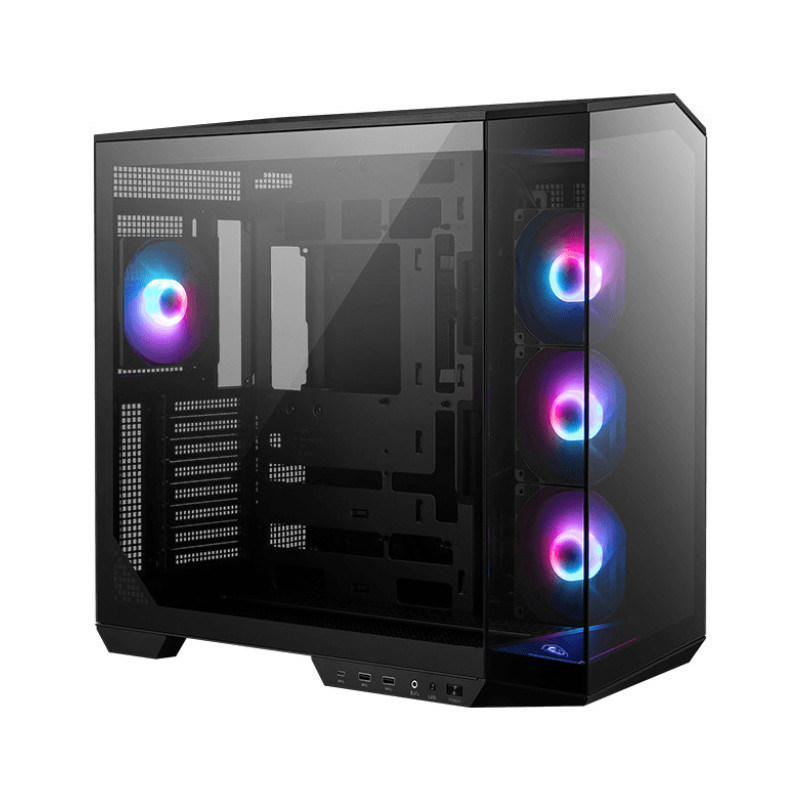

MSI MAG PANO 100R PZ. Form factor: Midi Tower, Type: PC, Product color: Black. Power supply location: Bottom, Supported power supply form factors: ATX. Side fans installed: 3x 120 mm, Side fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 11.4" (290 mm), Depth: 20.4" (518.7 mm), Height: 19" (482 mm)

Form factor	Midi Tower
Type	PC
Product color	Black
Supported motherboard form factors	ATX, micro ATX, Mini-ATX
Number of 3.5" bays	2
Material	Tempered glass
Number of 2.5" bays	3
Number of expansion slots	8
Side window	Yes
Suitable for	Gaming
Illumination	Yes
Illumination color	Multi
Illumination location	Case fans
On/off button	Yes
LED indicators	Yes
Maximum CPU cooler height	6.54" (16.6 cm)
Maximum graphics card length	15" (38 cm)
Maximum PSU length	7.87" (20 cm)
Power supply included	No
Power supply location	Bottom
Supported power supply form factors	ATX
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Combo headphone/mic port	Yes
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120,140 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	3
Bottom fans diameters supported	120,140,160 mm
Side radiator sizes supported	120,240,360 mm
Bottom radiator sizes supported	120,240,360 mm
Rear radiator sizes supported	120 mm
Top radiator sizes supported	120,240,360 mm
Supported HDD sizes	2.5,3.5"
Width	11.4" (290 mm)
Depth	20.4" (518.7 mm)
Height	19" (482 mm)
