Pre-build with Reverse-blade Fan
Pre-installed on the side are reverse blade fans, allowing the unobstructed display of the ARGB fan's beauty without any interference from fan frames.

Support Back-Connect Motherboard
Supporting back-connect motherboards enables easy installation without the worry of forgetting to connect cables, which might otherwise require disassembling graphics cards and coolers.

270-degree Panoramic Display
Drawing inspiration from the MAG logo, create a distinctive chassis design that embodies the unique MAG characteristics. The front interior of the chassis incorporates a space for displaying figurines, complemented by a 270-degree panoramic tempered glass, transforming it into a showcase-style chassis.

GPU Support Stand
Equipped with a level indicator to ensure effortless adjustment of the support height during installation, preventing sagging. Meanwhile, its magnetic base secures more stability within the
chassis.

1 to 4 ARGB-FAN Control Board
This fan control board supports up to 4 x ARGB fan function. Allow you to use the LED switch button to adjust the ARGB lighting intuitionally.

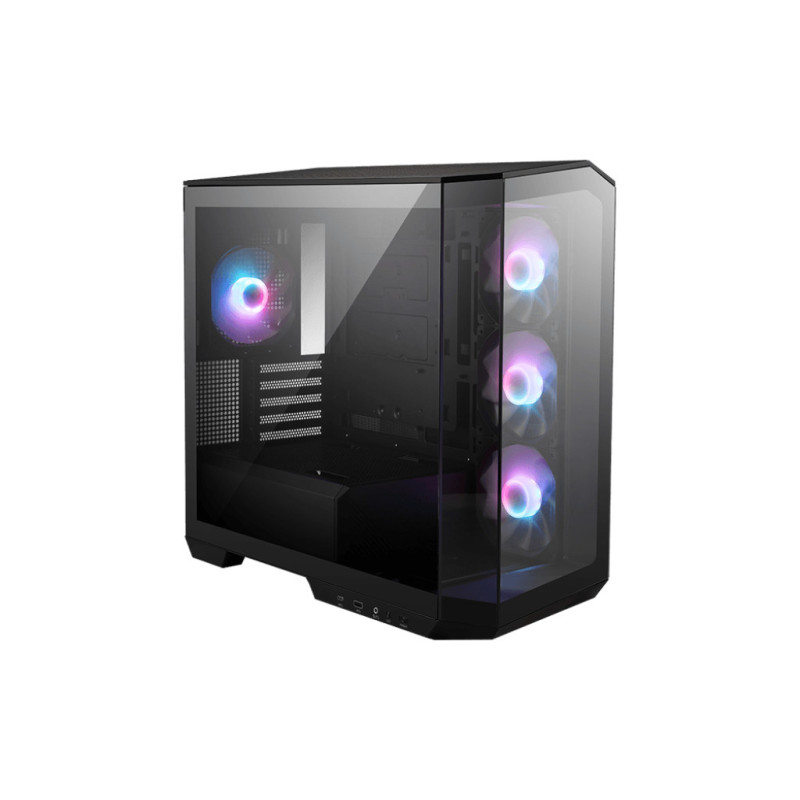

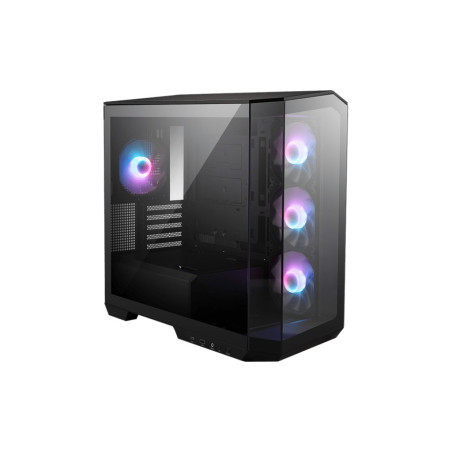

MSI MAG PANO M100R PZ. Form factor: Micro Tower, Type: PC, Product color: Black. Power supply location: Bottom. Side fans installed: 3x 120 mm, Side fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm. Supported HDD sizes: 2.5,3.5". Width: 9.25" (235 mm), Depth: 17.3" (440 mm), Height: 15.9" (405 mm)

Form factor	Micro Tower
Type	PC
Product color	Black
Supported motherboard form factors	ITX, micro ATX
Number of 3.5" bays	1
Number of 5.25" bays	0
Number of 2.5" bays	1
Number of expansion slots	5
Side window	Yes
Suitable for	Gaming
Illumination	Yes
Illumination color	Multi
Illumination location	Case fans
On/off button	Yes
LED indicators	Yes
Maximum CPU cooler height	6.89" (17.5 cm)
Maximum graphics card length	15.4" (39 cm)
Maximum PSU length	7.87" (20 cm)
Power supply location	Bottom
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Audio input	Yes
Audio output	Yes
Side fans installed	3x 120 mm
Number of side fans supported (max)	3
Side fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120,140 mm
Number of top fans supported (max)	3
Top fans diameters supported	120,140 mm
Number of bottom fans supported (max)	1
Bottom fans diameters supported	120 mm
Rear radiator sizes supported	120,140 mm
Top radiator sizes supported	120,240,360 mm
Supported HDD sizes	2.5,3.5"
Width	9.25" (235 mm)
Depth	17.3" (440 mm)
Height	15.9" (405 mm)
Weight	19.1 lbs (8.66 kg)
Package weight	24.9 lbs (11.3 kg)
