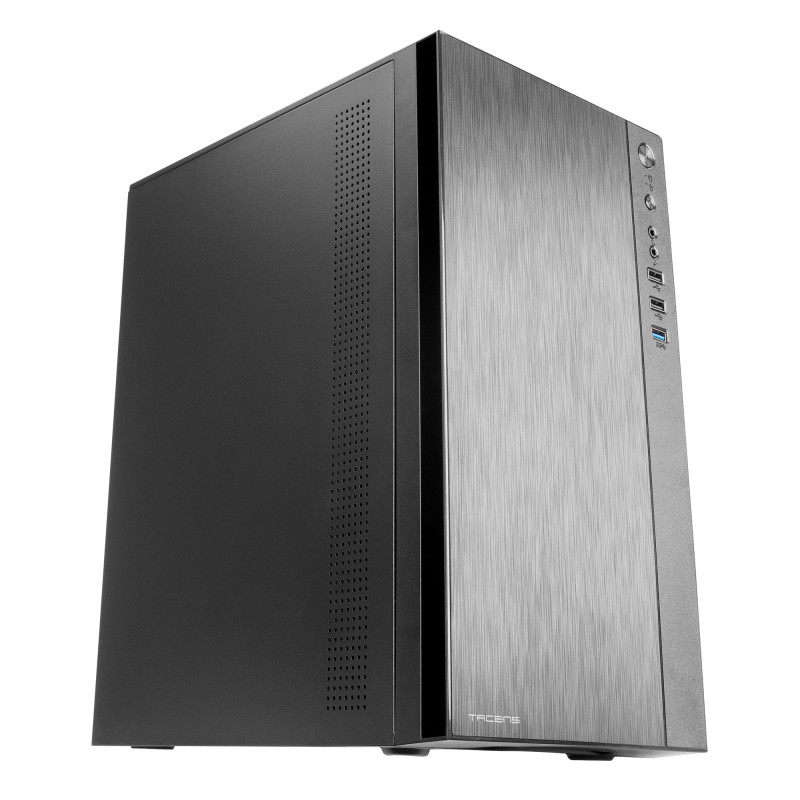

The ACX500 is a premium Micro-ATX / Mini-ITX case that includes a state-of-the-art 500W power supply, equipped with an ultra-quiet 12cm fan and anti-vibration system, ensuring 85% energy efficiency and maximum stability. Designed to offer a perfect balance between advanced functionality, elegant design and outstanding cooling, this chassis features a polished aluminum front and professional black finish, ideal for any environment. It incorporates an ultra-quiet 12cm rear fan and supports up to 3 additional 12cm fans, 120mm liquid cooling and CPU coolers up to 160mm. Its optimized structure facilitates assembly and offers capacity for up to 6 hard drives (4 x 2.5” SSD + 2 x 3.5” HDD), as well as full connectivity with USB 3.0, USB 2.0, HD audio and microphone ports on the front panel.

Tacens Anima ACX500. Form factor: Mini Tower, Product color: Black, Supported motherboard form factors: micro ATX, Mini-ITX. Power supply: 500 W, Supported power supply form factors: ATX. Front fans diameters supported: 120 mm, Rear fans installed: 1x 120 mm, Rear fans diameters supported: 120 mm. Supported HDD sizes: 3.5", SSD form factor: 2.5". Width: 11.8" (300 mm), Depth: 7.48" (190 mm), Height: 13.9" (353 mm)

Form factor	Mini Tower
Product color	Black
Supported motherboard form factors	micro ATX, Mini-ITX
Number of 3.5" bays	2
Material	Aluminum
Number of 2.5" bays	4
Number of expansion slots	4
Reset button	Yes
On/off button	Yes
Maximum CPU cooler height	6.3" (16 cm)
Maximum graphics card length	10.2" (26 cm)
Power supply included	Yes
Power supply	500 W
Supported power supply form factors	ATX
ATX power connector (20+4 pin)	Yes
Number of SATA connectors	2
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Audio input	Yes
Audio output	Yes
Number of front fans supported (max)	2
Front fans diameters supported	120 mm
Rear fans installed	1x 120 mm
Number of rear fans supported (max)	1
Rear fans diameters supported	120 mm
Supported HDD sizes	3.5"
SSD form factor	2.5"
EPS power connector (4+4 pin)	Yes
Width	11.8" (300 mm)
Depth	7.48" (190 mm)
Height	13.9" (353 mm)
Weight	7.28 lbs (3.3 kg)
Package width	9.45" (240 mm)
Package depth	15.7" (400 mm)
Package height	14" (355 mm)
Package weight	9.48 lbs (4.3 kg)
