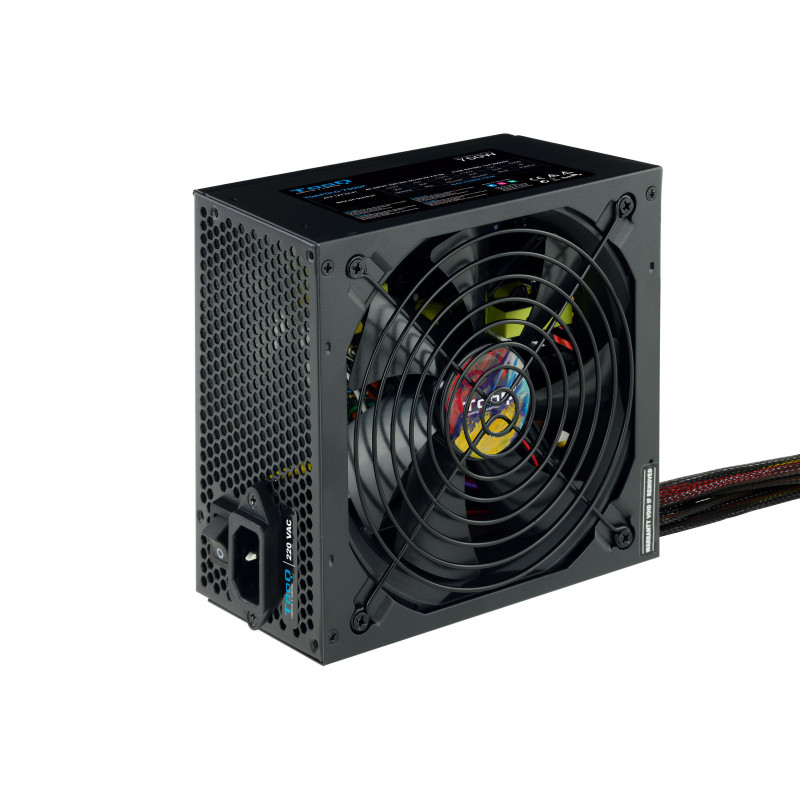

Ecopower II ATX 750W Active PFC power supply

Ecopower II is the next generation of Ecopower TOOQ power supply. The new Power Supplies version includes high quality Active PFC (Active PFC, PF> 0.99, not all models have Altive PFC), which guarantees at least 78% efficiency. With Active PFC technology, the power supply produces much less heat than another with Passive PFC, which can prolong the power supply life. In addition, the Ecopower II series has a super quiet high quality fan, very stable dual +12V rail and high-tech electronic protection system.

TooQ TQAPOLO-750SP. Total power: 750 W, AC input voltage: 220 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 15.7" (40 cm), SATA power cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Supported motherboard form factors: ATX. Product color: Black, Cooling type: Active, Fan diameter: 5.51" (14 cm). Cables included: AC

Total power	750 W
AC input voltage	220 V
AC input frequency	50 - 60 Hz
Input current	2.5 - 9 A
Power Factor Correction (PFC) type	Active
Max output current (+3.3V)	30 A
Max output current (+12V1)	25 A
Max output current (+12V2)	25 A
Max output current (+5V)	30 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	3
Motherboard power cable length	15.7" (40 cm)
Number of SATA power connectors	5
SATA power cable length	700 mm
Peripheral (Molex) power cable length	700 mm
PCI Express power connectors (6-pin)	1
PCI Express power connectors (6+2 pin)	1
PCI Express power cable length	15.7" (40 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	15.7" (40 cm)
ATX power connector (20+4 pin)	Yes
Floppy drive power connector	1
Floppy disk drive connector	Yes
Floppy disk drive cable length	27.6" (70 cm)
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	No
Supported motherboard form factors	ATX
ATX version	2.31
Product color	Black
Cooling type	Active
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
Fan location	Top
On/off switch	Yes
Cables included	AC
Compliance certificates	CE, RoHS
Safety	OCP, OVP, UVP, SCP, OPP, OTP
Width	5.91" (150 mm)
Depth	6.3" (160 mm)
Height	3.35" (85 mm)
Package width	10.1" (256 mm)
Package depth	6.77" (172 mm)
Package height	4.02" (102 mm)
Package type	Box
