Introducing our LUX PRO PSU series – a lineup ranging from 550W to 1000W. Each unit features a stylish design balancing power and luxury. LUX PRO is upgraded with a 105°C Japanese primary capacitor and a 14cm FDB fan, enhancing airflow and lifespan for improved thermal reliability. The 550W to 850W models hold 80Plus 230V EU Bronze certification, while the 1000W model achieves 80Plus Gold efficiency. Both 850W and 1000W models comply with ATX3.0 and PCIe 5.0 standards for modern RTX 40 VGA cards. Elevate your computing with LUX PRO – the definition of power and luxury.

HIGH EFFICIENCY PERFORMANCE
550W | 650W | 750W | 850W
Up to 88%+ efficiency and 80plus 230V EU Bronze Certified

FDB
Fluid Dynamic Bearing (FDB) offers superior durability and reduced noise through its smooth operation based on fluid dynamics, enabling overall performance and extending its lifespan.

JAPANESE BRAND PRIMARY CAPACITOR
Built by more relaible Toshin Kyogo Japanese brand 105°C primary capacitor.

OPTIMIZED AIRFLOW
14cm silent FDB fan with optimized thermal fan speed control. Fan runs at startup speed (less than 700RPM) before reaching 40% load at 25°C ambient temperatures.

STYLISH, ELEGANT DESIGN
Featuring a stylish, elegant design, the LUX PRO PSU is the perfect balance between power and luxury.
This power supply elevates the look and feel of your rig while delivering maximum efficiency power.

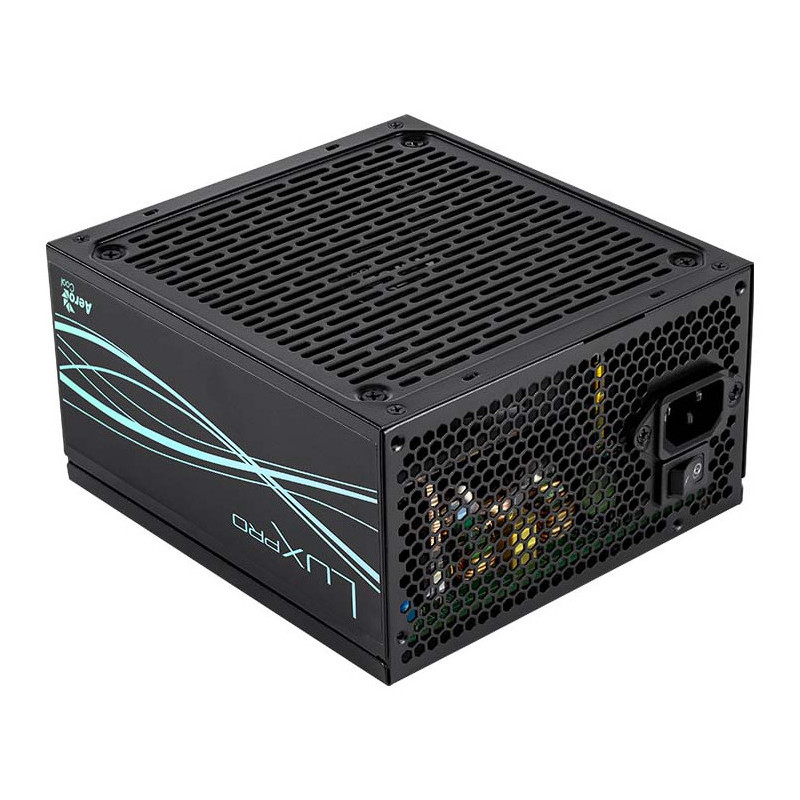

Aerocool LUXPRO850. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 21.7" (55 cm), SATA power cable length: 850,550,700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 5.51" (14 cm). Compliance certificates: EAC, TÜV mark, UKCA, Federal Communications Commission (FCC), RoHS, CB, CE

Total power	850 W
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	11 - 5.5 A
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	130 W
Combined power (+12V)	846 W
Combined power (+5V)	130 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	70.5 A
Max output current (+5V)	15 A
Max output current (-12V)	3.6 A
Max output current (+5Vsb)	15 A
Efficiency	90%
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	21.7" (55 cm)
Number of SATA power connectors	6
Number of PATA power connectors	3
SATA power cable length	850,550,700 mm
PCI Express power connectors (6+2 pin)	2
PCI Express power cable length	27.6" (70 cm)
CPU power connector (4+4 pin)	Yes
CPU power cable length	23.6" (60 cm)
PCI Express connector	Yes
Cabling type	Semi-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
ATX version	3.0
Bearing technology	FDB
Product color	Black
Cooling type	Active
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
On/off switch	Yes
Compliance certificates	EAC, TÜV mark, UKCA, Federal Communications Commission (FCC), RoHS, CB, CE
