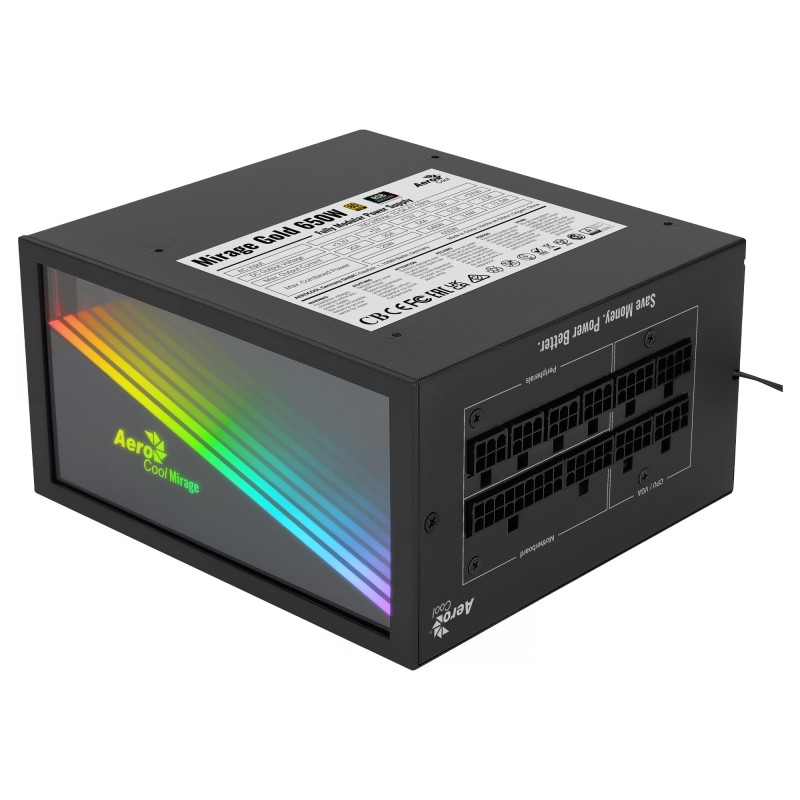

High-performance 80Plus Gold power supply with an Infinity Mirror RGB design that delivers a truly unique and mesmerizing lighting experience. Fully modular design provides you with full control of your cables, allowing for super efficient cable management and improved air flow.

Addressable RGB can be controlled using one of two ways: RGB LED control button or Addressable RGB motherboard. The new Mirage PSU series is perfect for DIY PC builders who want a top-class power supply without breaking the bank.

UP TO 90%+ EFFICIENCY
80Plus Gold Certified for up to 90%+ efficiency, delivering maximum efficiency performance.

INFINITY MIRROR RGB DESIGN
Featuring a glass mirror design with a single RGB LED strip, the Mirage Gold achieves an infinity effect with what seems like endless RGB strips to deliver a truly unique and mesmerizing lighting experience.

ADDRESSABLE RGB COMPATIBLE
Stylize and personalize your lighting experience with 16.8 million colors by connecting your power supply to your Addressable RGB motherboard.

To switch between motherboard and button control:

- Make sure PSU is connected to motherboard’s ARGB header
- Hold button on PSU for 3 seconds
- Control will switch from PSU to motherboard.

FULL MODULAR POWER SUPPLY
Fully modular design provides you with full control of your cables, allowing for super efficient cable management and improved air flow to achieve the best possible cooling performance.

BUILT-IN 105°C JAPANESE CAPACITORS
Built-in 105°C Japanese capacitors provide uncompromised performance, reliability and durability even under the most demanding conditions.

DC-TO-DC CONVERSION CIRCUIT
Built-in DC-to-DC conversion circuit for higher efficiency and tight voltage regulation even under heavy cross-loading conditions.

OPTIMIZED THERMAL FAN SPEED CONTROL
Optimized fan speed allows for near inaudible fan noise and silent PSU operation.

Smart thermal fan control keeps the fan running at startup speed before reaching 60% load at 40°C ambient temperatures.

TESTED FOR RELIABILITY AND PERFORMANCE
Having undergone test after test under strict conditions and the highest standards of quality, the Mirage Gold ensures premium reliability, durability, and performance.

ACTIVE POWER FACTOR CORRECTION
Built-in APFC providing higher voltage stabilization and lower power consumption (Active Power Factor Correction rate > 0.9).

CONVENIENT CABLE MANAGEMENT
Soft, black, flat cables allow for more convenient cable management and easier installation.

DUAL CPU POWER CONNECTORS
Dual CPU power connectors allows for compatibility with high-end Intel and AMD Ryzen CPUs.

Aerocool MIRAGEGOLD650M. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product color: Black, Fan diameter: 4.72" (12 cm), Number of fans: 1 fan(s). Compliance certificates: RoHS

Total power	650 W
AC input voltage	200 - 240 V
AC input frequency	47 - 63 Hz
Combined power (+3.3V)	120 W
Combined power (+12V)	648 W
Combined power (+5V)	120 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (+3.3V)	20 A
Max output current (+12V)	54 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2.5 A
Efficiency	90%
Power protection features	Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	6
Number of PATA power connectors	3
PCI Express power connectors (6+2 pin)	2
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
ATX version	2.52
Product color	Black
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
Fan speed	900 - 1800 RPM
Illumination	Yes
Compliance certificates	RoHS
