ACTIVE PFC 85% OF FULL LOAD EFFICIENCY

A new line of power supplies which are focused on two main areas, efficiency and reliability. ECO PSU has a careful and ecological design offering high efficiency which means energy saving, long life and enviroment protection for your PC. ECO500 85+ is a reliable option for those systems with multicore processors and advanced graphic solutions with an excellent price-quality performance. Its 12cm fan helps power and silence rates.

- 12 cm. Fan
- Silent
- Easy installation
- Compatible with Intel and AMD
- COMPLIANT RoHS, CE, Energy Saving ErP

85+
It complies 85% efficiency policy.
This device is specifically designed to be installed in any new computer and then to comply with the new efficiency policy, date of 1st of July, 2014.

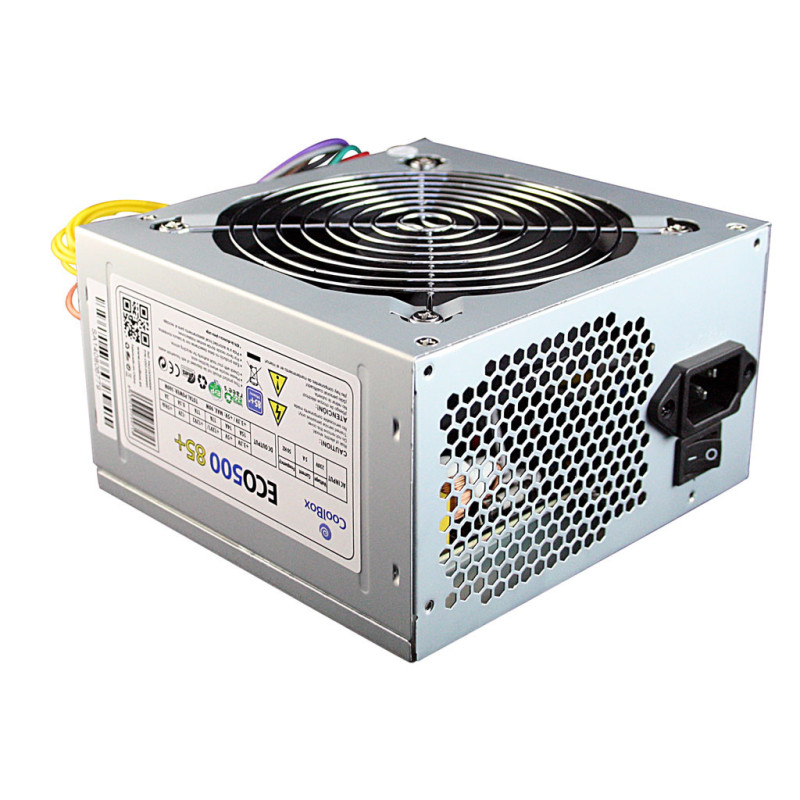

CoolBox ECO500 85+. Total power: 300 W, AC input voltage: 230 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Gray, Fan diameter: 4.72" (12 cm), Number of fans: 1 fan(s). Compliance certificates: RoHS, Certification: CE, Energy Saving ErP

Total power	300 W
AC input voltage	230 V
AC input frequency	50 Hz
Input current	5 A
Maximum input current (@110V)	+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	90 W
Combined power (+5V)	90 W
Max output current (+3.3V)	15 A
Max output current (+12V1)	17 A
Max output current (+12V2)	17 A
Max output current (+5V)	14 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	2 A
Efficiency	85%
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
Number of SATA power connectors	3
PCI Express power connectors (6+2 pin)	1
CPU power connector (4+4 pin)	Yes
Floppy drive power connector	1
Cabling type	Non-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Product color	Gray
Fan diameter	4.72" (12 cm)
Number of fans	1 fan(s)
On/off switch	Yes
Compliance certificates	RoHS
Certification	CE, Energy Saving ErP
Width	5.91" (150 mm)
Depth	3.39" (86 mm)
Height	5.51" (140 mm)
