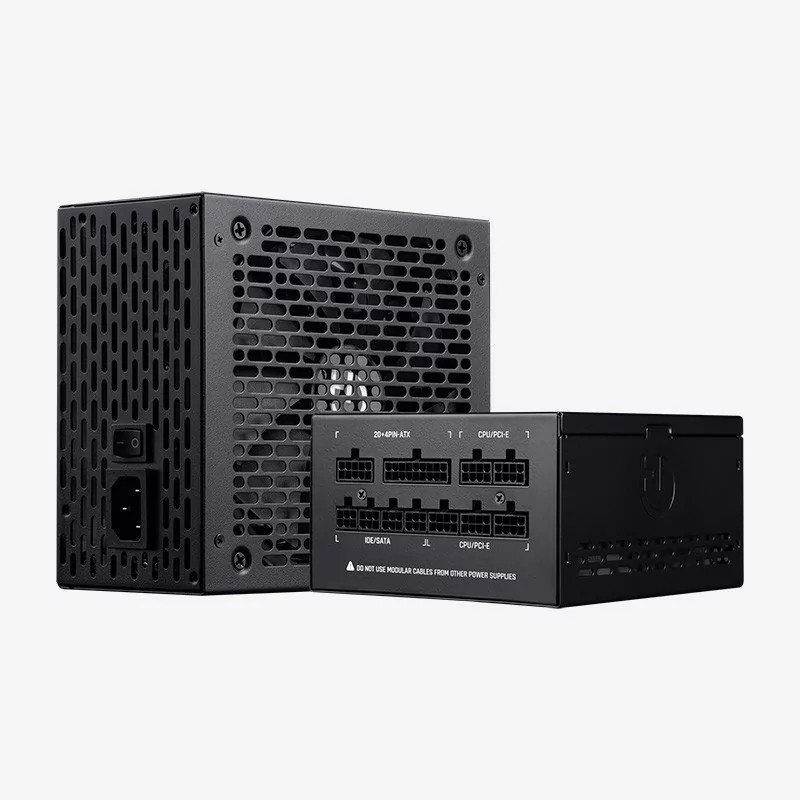

The 80Plus Bronze certified BZX V2 series is a full modular power supply with extra-long flat cables and top quality components, designed to supply stable efficient energy at rates of over 85% at maximum operation.

Full Modular 80Plus Bronze

The 80Plus Bronze certified BZX V2 series is a full modular power supply with extra-long flat cables and top quality components, designed to supply stable efficient energy at rates of over 85% at maximum operation.

80Plus Bronze Certified

BZX V2 power supplies have an 80Plus Bronze certificate, which guarantees an efficiency of more than 85% as well as a achieves lower consumption and greater durability of all the components.

Heat emissions will be reduced with more efficient working, allowing the fan to work at a lower speed, so the noise produced by the power supply will be virtually imperceptible.

It incorporates complete protections with OVP / UVP / OPP / SCP / SIP.

High-performance capacitors

The BZX V2 series is made from high-performance capacitors to provide maximum reliability and durability in very demanding conditions.

The BZX V2 range offers a durability greater than 100.000 hours of operation.

Compatible with the range of Intel Haswell processors which set new standards in terms of energy efficiency by reducing CPU power consumption to only 0.05A, requiring the PSU to maintain a stable voltage at low power.

Full modular with extra long flat cables

The BZX V2 series is full modular which means you only have to connect the cables you need to the supply thus ensuring greater comfort when assembling your equipment.

Its extra-long flat cables facilitate adaptation when installing any equipment, thereby assuring more orderly installation while taking up less space.

Ultra-silent 140mm fan

The BZX V2 series has an ultra-quiet 120mm fan that will allow more air flow inside.

The 140mm fan provides more air flow running at lower revolutions, so in addition to making the noise of the fan virtually imperceptible, greater efficiency and durability will be achieved with all the components.

Dual EPS12V & Four 6+2 PCIe

The BZX V2 series has two EPS12V lanes and four 6+2 PCIe lanes for high-performance graphics.

Hiditec BZX650. Total power: 650 W, AC input voltage: 100 - 240 V, Max output current (+3.3V): 20 A. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Fan diameter: 5.51" (14 cm), Number of fans: 1 fan(s). Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, Certification: CE , FCC , RoHs

Total power	650 W
AC input voltage	100 - 240 V
Max output current (+3.3V)	20 A
Max output current (+12V)	54 A
Max output current (+5V)	20 A
Max output current (-12V)	0.5 A
Max output current (+5Vsb)	3 A
Power protection features	Over power, Over voltage, Short circuit, Under voltage
Motherboard power connector	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin)	2
Number of SATA power connectors	5
PCI Express power connectors (6+2 pin)	4
Cabling type	Fully-Modular
Purpose	PC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Bronze
Product color	Black
Fan diameter	5.51" (14 cm)
Number of fans	1 fan(s)
Fan location	Front
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Certification	CE , FCC , RoHs
Width	5.91" (150 mm)
Depth	3.39" (86 mm)
Height	6.3" (160 mm)
Weight	4.85 lbs (2.2 kg)
Sustainability compliance	Yes
